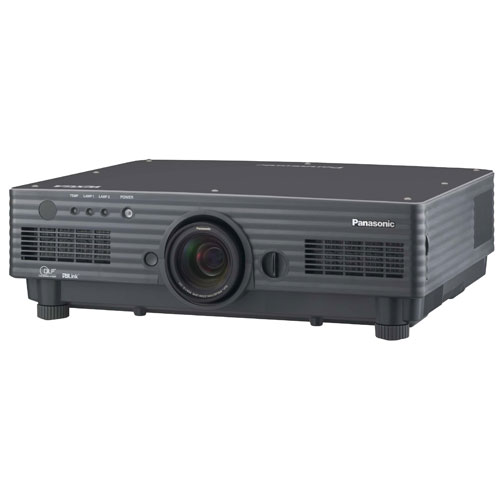

Panasonic PTDW5000U Dlp Projector panasonic pt-dw5000u

KEY POINTS - PTDW5000U Panasonic 4500 ANSI Lumens Dual Lamp DLP Video Projector:

Native 1280 x 768 WXGA resolution

4500 ANSI lumens brightness

Up to 2000:1 contrast ratio

Vivid Color Control technology for higher uniformity of brightness by as much as 15%

3D Color Management automatically corrects color saturation, hue and brightness, resulting a more accurate image reproduction

BriteOptic dual-lamp system reduces downtime

An industry-leading 32 lbs (with lens) for easy installation and improved portability

Optional long-life lamps - each providing up to 4,000 hours of use (in low lamp mode)

Side access to dust filter and back-panel access to lamps for easy maintenance

Optional lenses with easy lens replacement

Multiple terminals including DVI-D (w/HDCP)

Wired LAN system

Web browser control/monitoring and e-mail message alert

SUMMARY - Panasonic ptdw5000u 4500 ANSI Lumens Dual Lamp DLP Video Projector:

The PT-DW5000U projector is yet another major stride forward in innovative design ideas from Panasonic. Building on the highly reliable DLP single-chip technology, the PT-DW5000U uses newly designed features to deliver even more spectacular image reproduction, in a low maintenance, high performance package -- two trademarks that you have come to expect from Panasonic.

Designed for the growing popularity and demand for the 16:9 aspect ratio brought on by HDTV and Blu-ray high definition entertainment players, the Panasonic PT-DW5000U displays a wide 1280 x 768 resolution at a brighter and sharper 4,500 lumens. And with innovative new features like Vivid Color Control, a new 10-micron dust filter, and a rubber sealed lens unit, this wide screen projector is ideal for open environments like restaurants, bars, casinos, and theaters. With the PT-DW5000U, you don't just make a presentation, you make an impact.

DETAILED SPECS - PANASONIC PT-DW5000U DLP PROJECTOR:

Main Unit

Panel size

0.65˝ diagonal (16:9 aspect ratio)

Display method

DMD x 1, DLP system

Pixels

983,040 (1,280 x 768) x 1, total of 983,040 pixels

Lens

PT-DW5000

Powered zoom/focus lenses (1:1.8–1:2.5), F 1.7–2.0, f 25.6–33.8 mm

PT-DW5000L

Optional powered zoom/focus lenses

Lamp

300 W UHM lamps (x 2) (dual lamp system)

Screen size

50–600 inches

Brightness

4,500 lumens (dual lamp, high power mode)

Resolution

RGB

1,280 x 768 pixels (1,600 x 1,200 pixels compatible, compression mode)

Video

560 TV lines

Power supply

120 V AC, 50/60 Hz

Power consumption

770 W (770 VA) (10 W during standby mode with fan stopped)

Center-to-corner uniformity

90%

Contrast:

2,000:1 (full on/full off, contrast mode: high)
1,000:1 (full on/full off, contrast mode: normal)

Scanning frequency

RGB

Horizontal: 15–91 kHz, Vertical: 50–85 Hz, Dot clock: 108 MHz or lower

YPBPR (YCBCR)

480i: fH 15.75 kHz; fV 60 Hz, 576i: fH 15.63 kHz; fV 50 Hz,
480p: fH 31.5 kHz; fV 60 Hz, 576p: fH 31.25 kHz; fV 50 Hz,
720/60p: fH 45 kHz; fV 60 Hz, 720/50p: fH 37.5 kHz; fV 50 Hz,
1035/60i: fH 33.75 kHz; fV 60 Hz, 1080/60i: fH 33.75 kHz; fV 60 Hz,
1080/50i: fH 28.13 kHz; fV 50 Hz

S-Video/Video

Horizontal: 15.75/15.63 kHz, Vertical: 50/60 Hz, (NTSC, NTSC4.43, PAL, PAL60, PAL-N, PAL-M, SECAM)

Optical axis shift

Horizontal (manual) and vertical (powered), Horizontal: ±10% (6:4 – 4:6), vertical: 0– 50% (0:10 –10:10)

Keystone correction range

Vertical: ±30° (with standard lens)

Installation

Ceiling/floor, front/rear

Terminals

DVI-D IN

DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only

EDID 1

480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i

EDID 2

For non-interlaced signals only, Display mode: From VGA (640 x 480) to SXGA (1280 x 1024), Dot clock: 25 MHz–108 MHz

RGB 1 IN

BNC x 5

R, G, B

G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B, R: 0.7 Vp-p, 75 ohms
HD/VD, SYNC: 1.4 Vp-p–5.0 Vp-p, 75 ohms (positive/negative)

Y, PB, PR: Y

1.0 p-p, 75 ohms, PB/PR: 0.7 Vp-p, 75 ohms

RGB 2 IN

D-sub HD 15-pin x 1

R, G, B

G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B, R: 0.7 Vp-p, 75 ohms
HD/VD, SYNC: 1.4 Vp-p–5.0 Vp-p, 75 ohms (positive/negative)

Y, PB, PR: Y

1.0 p-p, 75 ohms, PB,/PR: 0.7 Vp-p, 75 ohms

VIDEO IN

BNC x 1, 1.0 Vp-p, 75 ohms

S-VIDEO IN

Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms

SERIAL IN

D-sub 9-pin x 1 (RS-232C compliant) for external controller

SERIAL OUT

D-sub 9-pin x 1 (RS-232C compliant) for external controller

REMOTE 1 IN

M3 jack x 1 for wired remote control or link control

REMOTE 1 OUT

M3 jack x 1 for link control

REMOTE 2 IN

D-sub 9-pin x 1 for external control (parallel)

LAN

RJ-45 x 1, compliant with PJLink, 10Base-T/100Base-TX

On-screen menu

9 languages: English, French, German, Spanish, Italian, Russian, Korean, Chinese, and Japanese

Noise

35 dB (high lamp power mode), 29 dB (low lamp power mode)

Power cord length

3.0 m (9.9´)

Dimensions (W x H x D)

530 x 167 x 429 mm (20-7/8˝ x 6-9/16˝ x 16-7/8˝) (without lens)

Weight

PT-DW5000

14.5 kg (32.0 lbs) (with supplied lens)

PT-DW5000L

13.7 kg (30.2 lbs) (without lens)

Operating temperature

0°–45°C (32°–113°F)

Operating humidity

20%–80% (no condensation)

Remote Control Unit

Power supply

3 V DC (AAA battery x 2)

Operation range

Wireless

Approx. 7 m when operated from directly in front of the signal receptor

Wired

Approx. 15 m

Supplied Accessories

Power cord, Wireless/wired remote control unit, Batteries for remote control (x 2)
