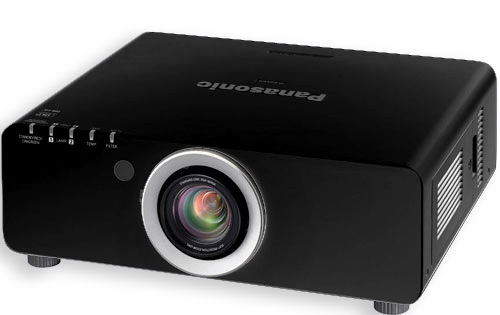

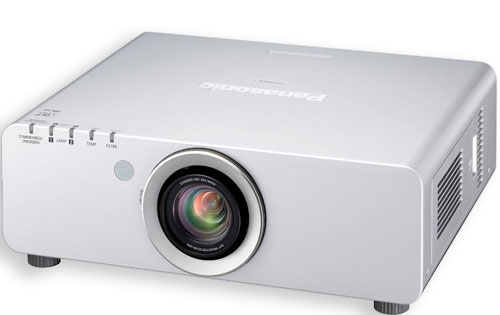

Note: These Projectors are available in white (PT-DW6300ULS)
and black casing (PT-DW6300ULK)
KEY POINTS - Panasonic ptdw6300uls
and ptdw6300ulk digital wxga dlp projector with 6000 lumens and 2000:1 contrast ratio:
RGB Booster Significantly Improves Color Reproduction The RGB Booster achieves high image quality with levels of color reproduction (up to 145% that of conventional models) and brightness that make each color stand out. It combines Panasonic's proprietary Vivid Color Control technology with a newly engineered Lamp Modulation Drive System for a 1-chip DLP projector that produces bright and vivid colors.
Vivid Color Control
This unique control technology optimizes the use of the color segment areas of the color wheel. It increases the brightness of each RGB color by minimizing the unallocated portions between the colors, to achieve truly vivid coloring.
Lamp Modulation Drive System
With the new lamp modulation technology, the projector is now able to control the lamp intensity for each of the red, green, blue, and white segments of the color wheel separately. Because the actual light output is controlled in relation to each color segment, light usage is optimized and color balance is obtained without lowering the brightness. This results in bright vivid images with increased color fidelity.
Detail Clarity Processor Brings Depth and Clarity to Details
This advanced image-processing circuit analyzes the video signal frequency range for each scene by extracting data on the distribution of high, mid, and low-frequency components, and brings out fine details accordingly. The resulting images have a more natural, three-dimensional
appearance with crisp, clear detail.
System Daylight View 2 for Enhanced Color Perception
Image details are less clear when a projector is used in a room with the lights on. Panasonic's System Daylight View 2 improves brightness perception by adjusting sharpness, gamma curves, and color corrections. This produces crisper, more stunning images with vivid colors even under bright conditions.
RGB Booster Significantly Improves Color Reproduction
The RGB Booster achieves high image quality with levels of color reproduction (up to 145% that of conventional models) and brightness that make each color stand out. It combines Panasonic's proprietary Vivid Color Control technology with a newly engineered Lamp Modulation Drive System for a 1-chip DLP projector that produces bright and vivid colors.
Vivid Color Control
This unique control technology optimizes the use of the color segment areas of the color wheel. It increases the brightness of each RGB color by minimizing the unallocated portions between the colors, to achieve truly vivid coloring.
Lamp Modulation Drive System
With the new lamp modulation technology, the projector is now able to control the lamp intensity for each of the red, green, blue, and white segments of the color wheel separately. Because the actual light output is controlled in relation to each color segment, light usage is optimized and color balance is obtained without lowering the brightness. This results in bright vivid images with increased color fidelity.
Detail Clarity Processor Brings Depth and Clarity to Details
This advanced image-processing circuit analyzes the video signal frequency range for each scene by extracting data on the distribution of high, mid, and low-frequency components, and brings out fine details accordingly. The resulting images have a more natural, three-dimensional
appearance with crisp, clear detail.
System Daylight View 2 for Enhanced Color Perception
Image details are less clear when a projector is used in a room with the lights on. Panasonic's System Daylight View 2 improves brightness perception by adjusting sharpness, gamma curves, and color corrections. This produces crisper, more stunning images with vivid colors even under bright conditions.
SUMMARY - Panasonic ptdw6300uls
and ptdw6300ulk Digital WXGA DLP projector with 6000 Lumens and 2000:1 Contrast ratio:
Note: The Panasonic PT-DW6300ULS and Panasonic PT-DW6300ULK are sold without lenses.

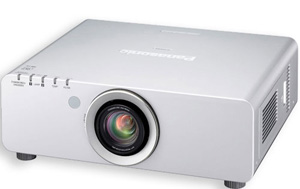

Panasonic 1-chip DLP projectors are brighter and better than ever with a compilation of numerous Panasonic proprietary technologies. The wide-aspect PT-DW6300ULS
and PT-DW6300ULS with a brightness of 6,000 lumens produces vivid colorful images with the aid of the newly engineered RGB Booster. The Dual-Lamp System makes sure that presentations aren't interrupted even if a lamp suddenly burns out. This is joined by the Auto Cleaning Filter, which makes filter cleaning unnecessary for approximately 10,000 hours, for high reliability. The PT-DW6300ULS offers easy and flexible system configuration.
DETAILED SPECS - PANASONIC PT-DW6300ULS
AND PT-DW6300ULK DIGITAL WXGA DLP PROJECTOR WITH 6000 LUMENS AND 2000:1 CONTRAST RATIO:
Native Resolution
1280 x 800 pixels
Brightness
6000 ANSI lumens
Colours
16.9 million colors
Aspect Ratio
16:10
Technology
DLP
Contrast Ratio
2000:1
Features
RGB booster
Auto cleaning filter
System Daylight View 2
Weight
33.6 lbs
Dimensions
19.6in W 6.9in H 17.3in D
Compatibility
Supports up to 1920x1200 resolution
Projector Uses
The 1-chip DLP™ projector features flexible system expandability and high image quality with vivid colors, perfect for theaters, meeting rooms, convention halls, museums, rental, board rooms, universities, digital signage and conference rooms.
