Panasonic PTDW7000U 6000 ANSI Lumens WXGA Large Venue DLP Projector

Item Currently Unavailable

Return to Panasonic Video Projector Page

PANASONIC PT-DW7000U 6000 ANSI Lumens XGA DLP Projector
Accessories
Spare Lamp (ET-LAD7700)	629.89
Long Life Lamp (ET-LAD7700W)	1121.59
Optional Lenses
ET-D75LE1 Zoom lens (1.5–2.0:1)	3840.35
ET-D75LE2 Zoom lens (2.0–3.0:1)	2894.37
ET-D75LE3 Zoom lens (3.0–5.0:1)	3215.33
ET-D75LE4 Zoom lens (5.0–8.0:1)	4266.43
ET-D75LE8 Zoom lens (8.0–15.0:1)	2328.62
ET-D75LE5 Fixed focus lens (0.8:1)	10107.32
Optional Input Boards
ET-MD77SD1 SDI (480i)+Wired LAN board	826.45
ET-MD77SD3 SDI (720p / 1035i / 1080i / 1080-24p) input board	Call
ET-MD77DV DVI w/HDCP with Wired LAN	Call
ET-MD77NT Wired LAN board	1224.96

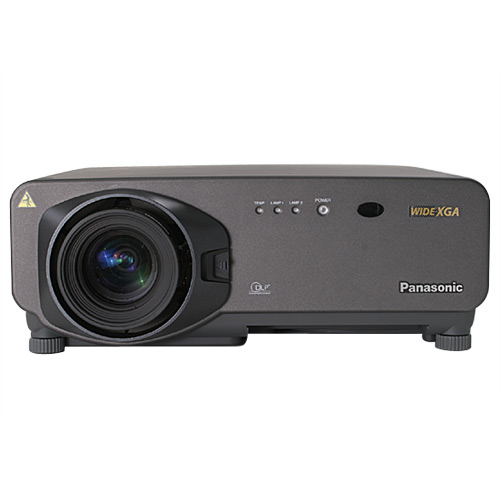

Panasonic PT-DW7000U DLP Video Projector

Click to Enlarge Image

KEY POINTS - Panasonic PTDW7000U 6000 ANSI Lumens WXGA Large Venue DLP Projector:

6000 ANSI lumens
World's lightest 3-chip DLP projector at only 48.5 lbs.
World's first 3-chip DLP projector with native 16:9 widescreen panels
Outstanding contrast ratio up to 4000:1
1366 x 768 native resolution
BrightOptic dual-lamp technology and lamp relay function
Dynamic Iris and Dynamic Gamma provide 256-step precision, preserve brightness, and help maintain a wide dynamic range

SUMMARY - Panasonic ptdw7000u 6000 ANSI Lumens WXGA Large Venue DLP Projector:

Featuring Texas Instruments Digital Light Processing and unique wide-aspect (1366 x 768) panels, the PT-DW7000U-K (Black cabinet) and PT-DW7000U (White cabinet) deliver outstanding 6000-lumen brightness and up to 4000:1 contrast ratio. Panasonic's Dynamic Iris improves contrast by precisely matching the lamp output to the input signal. The liquid-cooled optical engine boosts both reliability and durability, while greatly reducing operating noise.

DETAILED SPECS - PANASONIC PT-DW7000U LARGE VENUE DLP PROJECTOR:

Display
System	DLP system
Device	0.85˝ (diagonal) DMD™ (x 3), 16:9
Pixels	1,049,088 (1,366 x 768) x 3
Lamp	300 W UHM™ lamp x 2 (BriteOptic™ ™Dual Lamp System)
Brightness	6000 lumens (dual lamp)
	3000 lumens (single lamp)
Contrast ratio	4000:1 (full white/full black, with hdynamic iris set to “3”)
Resolution
RGB	1366 x 768 pixels
Video	560 TV lines
Lens	Optional
Screen size	l70˝– 600˝ diagonal
RGB input scanning
frequency	fH 15 –100 kHz, fV 24 –120 Hz,
	Dot clock 20–162 MHz
Component signal	480i, 576i, 480p, 576p, 720/60p, 1035/60i, 1080/60i,1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
Video signal	NTSC, PAL, SECAM, M-NTSC, PAL60, PAL-M, PAL-N
Terminals
VIDEO IN	BNC
VIDEO OUT	BNC
S-Video IN	Mini DIN 4-pin
RGB1/YPBPR IN	BNC x 5
RGB2 IN	D-sub HD 15-pin
Optional board slot	x 1
RS-232C/422 IN	D-sub 9-pin female
RS-232C/422 OUT	D-sub 9-pin male
REMOTE 1 IN	M3 jack
REMOTE 1 OUT	M3 jack
REMOTE 2 IN	D-sub 9-pin female (parallel)

Optical axis shift	Powered; horizontal ±30%, vertical ±65%
Keystone correction range	±40° (with ET-D75LE2)
Chassis
Installation	Front/rear, ceiling/floor, (menu selec-tion)
Power cord length	2.5 m (8.2´)
Power supply	100 – 120 V AC, 60 Hz
Power consumption	800 W (800 VA) (12 W during standby mode with fan stopped)
Dimensions (W x H x D)	20-7/8˝ x 7-7/8˝ x 21-9/32˝ (530 x 200 x 540 mm) (without lens and lens hood)
Weight	48.5 lbs/22.0 kg (without lens)
Operating temperature	0°–40°C (32°–104°F)
	0°–35°C (32°–95°F) (dual lamp, lamp power: high)
Operating humidity	10% –80% (no condensation)
Supplied accessories
Wireless/wired remote control unit
Batteries for remote control unit
Remote control cable

Manufacturer Link: www.panasonic.com
