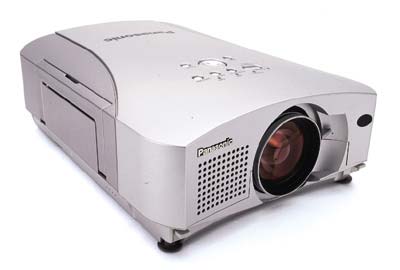

Panasonic PT-L500U Home Theater WXGA LCD Projector ptl500u

Power Supply

100–240 V AC, 50/60 Hz

Power Consumption

180 W (1 W in standby mode with fan stopped)

Optical System

Dichroic mirror separation/prism synthesis system

LCD Panel

Panel Size 0.7˝ (diagonal) (16:9 aspect ratio)
Display Method Transparent LCD panel (x 3, R/G/B)
Drive Method Active matrix
Pixels 921,600 (1280 x 720) x 3, total of 2,764,800 pixels
Pixel Configuration Stripe

Lens

Manual zoom/focus lens (1:1–1:1.2), F 1.9–2.2, f 22.0–26.2 mm

Lamp

130 W UHM™ lamp

Image Size (Diagonal)

1,016–5,080 mm (40–200 inches) diagonally

Screen Aspect Ratio

16:9 (4:3 compatible)

Colors

Full color (16,777,216 colors)

Color System

NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM

Brightness

850 lumens*1

Uniformity

90%

Contrast Ratio

1300:1*2 (full on/full off)

Resolution RGB

1280 x 720 pixels (1920 x 1080 pixels with compression)

Scanning Frequency

RGB Horizontal: 30–70 kHz, Vertical: 50–87 Hz

YPBPR 480i (525i): fH 15.75 kHz; fV 60 Hz
           625i (576i): fH 15.63 kHz; fV 50 Hz
           480p (525p): fH 31.5 kHz; fV 60 Hz
           625p (576p): fH 31.25 kHz; fV 50 Hz
           720p (750p): fH 45 kHz; fV 60 Hz
           1080i (1125i): fH 33.75 kHz; fV 60 Hz
           1080i (1125i): fH 28.125 kHz; fV 50 Hz

S-Video/Video fH 15.75 kHz; fV 60 Hz (NTSC, NTSC 4.43, PAL-M, PAL 60) fH 15.625 kHz; fV 50 Hz (PAL, SECAM, PAL-N)

Optical Axis Shift

17:1 (fixed)

Keystone Correction Range

Vertical: approx. ±30°, horizontal: approx. ±30°

Installation

Ceiling/desk, front/rear (menu selection)

Terminals

DVI-D IN DVI-D 24-pin x 1
PC (RGB) IN D-sub HD 15-pin (female) x 1
R, G, B 0.7 Vp-p (1.0 Vp-p for Sync on G), 75 ohms
HD/VD/SYNC TTL, high impedance (positive/negative polarity)
COMPONENT IN RCA pin (Y, PB/CB, PR/CR) x 1,
Y 1.0 p-p, 75Ω
PB/PR (CB/CR) 0.7 Vp-p, 75Ω
VIDEO IN RCA pin x 1, 1.0 Vp-p, 75 ohms
S-VIDEO IN Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
TRIGGER (out) M3 jack, (stereo mini)
When the power is turned on during projection: 12V
When the power is turned off: 0 V

Power Cord Length

3 m

Cabinet Material

ABS/PC

Dimensions (W x H x D)

280 x 85 x 278.5 mm (11˝ x 3-11/32˝ x 10-9/16˝)

Weight

2.9 kg (6.4 lbs.)

Operating Temperature

0°–40°C (32°–104°F)

Operating Humidity

20%–80% (no condensation)

Remote Control Unit

YES

Supplied Accessories

Power cord, Wireless remote control unit, Batteries for remote control (UM-4 x 2), AV cable (3 m/9.9´), Carrying bag
