DTV and Component
Video Ready - 480i/625i/480p/720p/1080i
Powered Zoom,
Powered Focus, Powered Lens-shift
Digital Keystone
Correction : +/- 20 degrees
Various Input/Output
Terminals
Advanced Shutter
Body Size
Matches 2ft x 2ft Ceiling Panel
Lens Position
- Center of the Body
Dual Stackable
Low Fan Noise
: 36dB at Standard Mode Operation
Function for
Supporting Installation - RS232C (in/out), Wireless/wired remote, contact
closure, test pattern, etc.

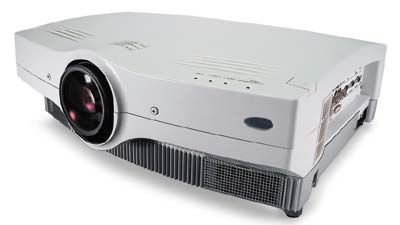

SPECIFICATIONS - Panasonic PTL6600U LCD Projector
Power
Supply
100-240V
AC, 50/60Hz
Power
Consumption
600W
(during standby mode with fan stopped: Max. 10W)
Max
Amps
5.0
A
Colour
System
NTSC/M-NTSC/PAL-M/PAL-N/SECAM
LCD
Panel
1.3"
(diagonal)
Display
Method
Transparent
LCD panels (x3)
Drive
Method
Active
matrix
Pixels
1,398,784
(1,366 x 1,024) x 3
Pixel
Configuration
Stripe
Lens
Power
zoom focus lens (1:1-1:3)
F:1.7-2.3 ,f 49.1-63.8 mm
Lamp
DC
type 220 W UHMTM lamps (x2)
Colours
Full
colour (16,777,216 colours)
Brightness
3600
ANSI lumens
Centre-to-Centre
uniformity ratio (CCR)
90%
Contrast
400:1
(full field)
Resolution
RGB
1366
x 1024 pixels
Video
1000
TV lines
Scanning
Frequency
S-Video/Video
Horizontal:
15.75/15.63kHz
Vertical: 50/60Hz
RGB
Horizontal:
24-97kHz
Vertical: 50-120Hz
Screen
Size
0.762m-7.62m
(2'6"-25'0") diagonally
Throw
distance
1.4m-14.6m
(4’8"-47’11")
Optical
axis shift
10/10-1/19
Installation
Ceiling/desk,
front/rear (menu selection)
Built-in
speakers
Size
7cm
x 4cm (2-3/4" x 1-9/16") (x2)
Output power
6W
(3W + 3W) (10% THD)
On-screen
display languages
English,
German, French, Spanish, Italian, Chinese, Japanese
Terminals:
RGB/YUV in
D-sub
HD 15 pin x 1, 5 BNC x 1
RGB out
D-sub
HD 15 pin x 1
Digital RGB in
DVI-D
24 pin x 1
Digital RGB out
DIV-D
24 pin x 1
S-Video in
Mini
DIN 4 pin x 1
Video in
BNC
x 1
Video out
BNC
x 1
Video audio in
RCA
jack (L, R) x 1
RGB audio in
M3
(L, R) x 1
Audio monitor out
M3
(L, R) x 1
RS-232C in
D-sub
9 pin x 1
RS-232C out
D-sub
9 pin x 1
Contact closure
D-sub
9 pin x 1
USB in
Type
B x 1 (up, for mouse)
USB out
Type
A x 1 (down, for USB hub)
Wired remote in
M3
x 1
Wired remote out
M3
x 1
Noise
level
36dB
(at standard mode)
Dimensions
(W x H x D)
495
x 179 x 495 mm
(19-15/32" x 7-1/16" x 19-15/32")
Weight
13.8kg
(30.5 lbs.)
Operating
Temperature
0°C
- 40°C (32°F -104°F)
Operating
Humidity
20%-80%
(no condensation)
Safety
Regulation
UL1950,
C-UL, FCC
Remote
Control Unit
Power Supply
3V
DC (AA size battery x 2)
Operation Range
Approx.
7m (23’) when operated from directly in front of the signal receptor
Weight
Approx.
102g (0.225 lbs.) (including batteries)
Dimensions (W x H x D)
46
x 34 x 190mm (1-13/16" x 1-11/32" x 7-15/32")
Supplied
accessories
Wireless/wired
remote control unit, cable for remote control unit (15m), remote control
adapter plug, batteries for remote control unit, power cord, VGA cable,
USB cable, exhaust guide
Optional
accessories
Replacement
lamp unit: ET-LAL6500 (single lamp), ET-LAL6500W (set of 2 lamps)
Ceiling mount bracket: ET-PKL6500 (for high ceilings), ET-PKL6500S
(for low ceilings)
Dual stacking mount bracket: ET-DFL6500 (for desk/ceiling mount)
Dual stacking mount bracket: ET-DFL6500P (for desk mount)
DVI cable: ET-SCDV03, wireless remote receiver: ET-RMRC1
