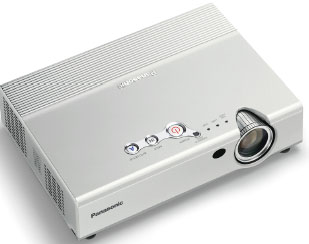

Dichroic mirror separation/prism synthesis system

786,432 (1,024 x 768) x 3, total of 2,359,296 pixels

Stripe

Manual zoom/focus lens (1:1–1:1.2), F 1.7–1.9, f 21.5–25.8 mm

155 W UHM lamp

838–7,620 mm (33–300 inches) diagonally, 4:3 aspect ratio

Full color (16,777,216 colors)

Horizontal: 15–91 kHz,
Vertical: 50–85 Hz

480i (525i): fH 15.75 kHz; fV 60 Hz
576i (625i): fH 15.63 kHz; fV 50 Hz
480p (525p): fH 31.5 kHz; fV 60 Hz
576p (625p): fH 31.25 kHz; fV 50 Hz
720p (750p): fH 45 kHz; fV 60 Hz
1080i (1125i): fH 33.75 kHz; fV 60 Hz
1080i (1125i): fH 28.125 kHz; fV 50 Hz

NTSC, NTSC4.43, PAL-M, PAL60: fH 15.75 kHz; fV 60 Hz PAL, SECAM, PAL-N: fH 15.63 kHz; fV 50 Hz

Optical axis shift

6:1 (fixed)

Keystone correction

8 languages: English, French, German, Spanish, Italian, Chinese, Korean, Russian

G: 0.7 Vp-p (1.0 Vp-p for Sync on G), 75 Ω; R, B: 0.7 Vp-p, 75 Ω HD, VD, SYNC: TTL, high impedance
(positive/negative polarity)

Y: 1.0 Vp-p (including sync signal), 75 Ω; PB, PR: 0.7 Vp-p, 75 Ω

G: 0.7 Vp-p (1.0 Vp-p for Sync on G), 75 Ω; R, B: 0.7 Vp-p, 75 Ω HD, VD, SYNC: TTL, high impedance (positive/negative polarity)

Y: 1.0 Vp-p (including sync signal), 75 Ω; PB, PR: 0.7 Vp-p, 75 Ω

S-VIDEO IN

Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 Ω

RCA (L, R) x 1, 0.5 Vrms, for RGB/VIDEO/S-VIDEO

11-23/32˝ x 2-9/16˝ x 8-9/32˝ (297 x 65 x 210 mm)

Approx. 23 feet (7 m) when operated from directly in front of the signal receptor

Dimensions (W x H x D)

1-9/16˝ x 3-3/8˝ x 1/4˝ (40 x 86 x 6.5 mm)

Weight
