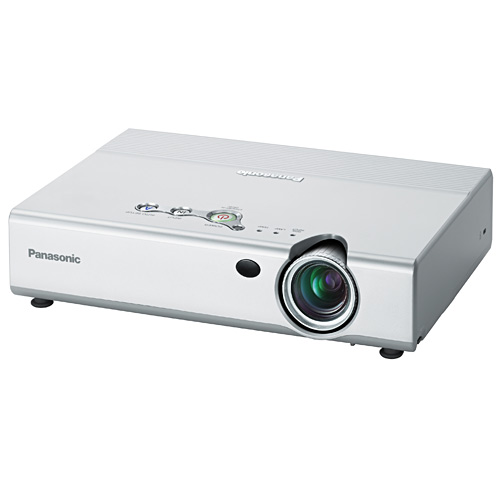

Panasonic PTLB20SU Multimedia LCD Video Projector pt-lb20su

Display

LCD panel

4:3 aspect ratio, micro lens array

Panel size

0.7˝ (17.78 mm) diagonal

Display method

Transparent LCD panel (x 3, R/G/B)

Drive method

Active matrix

Pixels

480,000 (800 x 600) x 3,
total of 1,440,000 pixels

Pixel configuration

Stripe

Lens

Manual zoom (1:1–1:1.2), manual

focus, F 1.8–2.1, f 22.0–26.2 mm

Lamp

155 W UHM™ lamp

Colors

Full color (16,777,216 colors)

Brightness

2,000 lumens

Uniformity

90%

Contrast

400:1*1 (full on/full off)

Scanning frequency

RGB

Horizontal: 15–91 kHz,

Vertical: 50–85 Hz

YPBPR

480i (525i): fH 15.75 kHz; fV 60 Hz

576i (625i): fH 15.63 kHz; fV 50 Hz

480p (525p): fH 31.5 kHz; fV 60 Hz

576p (625p): fH 31.25 kHz; fV 50 Hz

720p (750p): fH 45 kHz; fV 60 Hz

1080i (1125i): fH 33.75 kHz; fV 60 Hz

1080i (1125i): fH 28.125 kHz; fV 50 Hz

S-Video/Video

NTSC, NTSC4.43, PAL-M, PAL60:

fH 15.75 kHz; fV 60 Hz

PAL, SECAM, PAL-N: fH 15.63 kHz;

fV 50 Hz

Projection size

33–300 inches/838–7,620 mm diagonally

Throw distance

3´7˝–36´1˝ (1.1 m–11.0 m)

Optical axis shift

6:1 (fixed)

Keystone correction range

Vertical: approx. ±30°

On-screen menu

17 languages: English, French,
German, Spanish, Italian, Korean,
Russian, Chinese, Japanese, Swedish,
Norwegian, Danish, Portuguese, Polish,
Hungarian, Czech, Thai

Terminals

RGB1 IN

D-sub HD 15-pin x 1

RGB signal

R, G, B: 0.7 Vp-p, 75 ohms, Sync on
green: 1.0 Vp-p, 75 ohms
HD/SYNC, VD: TTL (positive/negative
polarity compatible)

YPBPR signal

Y: 1.0 Vp-p (including sync signal),
75 ohms; PB, PR: 0.7 Vp-p, 75 ohms

RGB2 IN/RGB1 OUT

D-sub HD 15-pin x 1 (input/output
selectable using on-screen menu)

RGB signal

R, G, B: 0.7 Vp-p, 75 ohms, Sync on
green: 1.0 Vp-p, 75 ohms
HD/SYNC, VD: TTL (positive/negative
polarity compatible)

YPBPR signal

Y: 1.0 Vp-p (including sync signal),
75 ohms; PB, PR: 0.7 Vp-p, 75 ohms

VIDEO IN

RCA pin x 1, 1.0 Vp-p, 75 ohms

S-VIDEO IN

Mini DIN 4-pin x 1,
Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms

AUDIO IN

RCA (L, R) x 1, 0.5 Vrms (for
RGB/VIDEO/ S-VIDEO)

SERIAL

Mini DIN 8-pin x 1 (RS-232C)

Chassis

Power cord length

6´7˝ (2 m)

Power supply

100–240 V AC, 50/60 Hz

Power consumption

220 W (Approx. 4 W in standby mode
with fan stopped)

Amps

2.5 A–1.3 A

Built-in speakers

1.0 W (monaural) output power

Cabinet material

Molded material (ABS/PC)

Dimensions (W x H x D)

11-11/16˝ x 2-9/16˝ x 8-1/4˝
(297 x 65 x 210 mm)*2

Weight

4.6 lbs. (2.1 kg)

Operating environment

Temperature

32°–104°F (0°–40°C)

Humidity

20%–80% (no condensation)

Installation

Front/rear ceiling/desk (menu selection)

Supplied Accessories

Card remote control

Lithium battery for remote control

Power cord

RGB signal cable

Carrying bag
