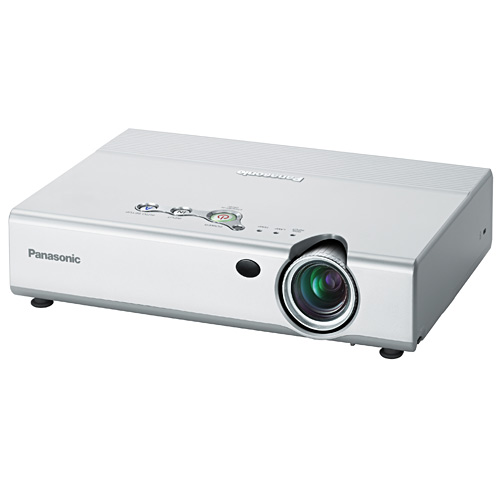

OVERVIEW - Panasonic ptlb20u 2000 ANSI Lumens XGA Video Projector:
Panasonic portable business projectors are
light enough to move around to different locations, and bright enough
to blow away your audience when you get there.
The PT-LB20U produces a bright 3000 ANSI Lumens,
super sharp XGA image. With One-Touch "Auto-Everything" Set-Up and
Daylight ViewTM Technology, this powerful machine wastes no time when
presenting your message for all to see.
FEATURES - Panasonic PTLB20U 2000 ANSI Lumens XGA Video Projector:
2,000 ANSI lumens
XGA native, UXGA compatible
Up to 400:1 contrast ratio
One-Touch "Auto Everything" Set-Up with Digital Keystone Correction
Daylight View technology - greatly improves color perception in bright rooms
Quick Start - images on screen in less than two seconds
Direct Power off
Auto Power off
Up to 3000 hour lamp life
SPECIFICATIONS - PANASONIC PT-LB20U 2000 ANSI LUMENS XGA VIDEO PROJECTOR:
Display
LCD panel
4:3 aspect ratio, micro lens array
Panel size
0.7½ (17.78 mm) diagonal
Display method
Transparent LCD panel (x 3, R/G/B)
Drive method
Active matrix
Pixels
786,432 (1,024 x 768) x 3,
total of 2,359,296 pixels
Pixel configuration
Stripe
Lens
Manual zoom (1:1–1:1.2), manual
focus, F 1.7–1.9, f 21.5–25.8 mm
Lamp
155 W UHM lamp "
Colors
Full color (16,777,216 colors)
Brightness
2,000 lumens
Uniformity
90%
Contrast
400:1*1 (full on/full off)
Scanning frequency
RGB
Horizontal: 15–91 kHz,
Vertical: 50–85 Hz
YPBPR
480i (525i): fH 15.75 kHz; fV 60 Hz
576i (625i): fH 15.63 kHz; fV 50 Hz
480p (525p): fH 31.5 kHz; fV 60 Hz
576p (625p): fH 31.25 kHz; fV 50 Hz
720p (750p): fH 45 kHz; fV 60 Hz
1080i (1125i): fH 33.75 kHz; fV 60 Hz
1080i (1125i): fH 28.125 kHz; fV 50Hz
S-Video/Video
NTSC, NTSC4.43, PAL-M, PAL60:
fH 15.75 kHz; fV 60 Hz
PAL, SECAM, PAL-N:
fH 15.63 kHz; fV 50 Hz
Projection size
33–300 inches/838–7,620 mm
diagonally
Throw distance
3´7½–35´1½ (1.1 m–10.7 m)
Optical axis shift
6:1 (fixed)
Keystone correction range
Vertical: approx. ±30°
On-screen menu
17 languages: English, French,
German, Spanish, Italian, Korean,
Russian, Chinese, Japanese, Swedish,
Norwegian, Danish, Portuguese, Polish,
Hungarian, Czech, Thai

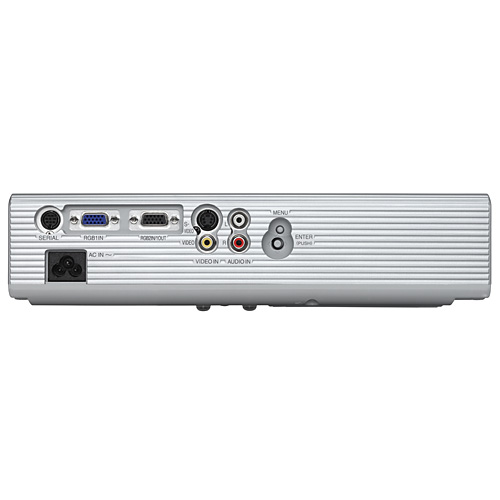

Terminals
RGB1 IN
D-sub HD 15-pin x 1
RGB signal
R, G, B: 0.7 Vp-p, 75 ohms, Sync on
green: 1.0 Vp-p, 75 ohms
HD/SYNC, VD: TTL (positive/negative
polarity compatible)
YPBPR signal
Y: 1.0 Vp-p (including sync signal),
75 ohms; PB, PR: 0.7 Vp-p, 75 ohms
RGB2 IN/RGB1 OUT
D-sub HD 15-pin x 1 (input/output
selectable using on-screen menu)
RGB signal
R, G, B: 0.7 Vp-p, 75 ohms, Sync on
green: 1.0 Vp-p, 75 ohms
HD/SYNC, VD: TTL (positive/negative
polarity compatible)
YPBPR signal
Y: 1.0 Vp-p (including sync signal),
75 ohms; PB, PR: 0.7 Vp-p, 75 ohms
VIDEO IN
RCA pin x 1, 1.0 Vp-p, 75 ohms
S-VIDEO IN
Mini DIN 4-pin x 1,
Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
AUDIO IN
RCA (L, R) x 1, 0.5 Vrms (for RGB/
VIDEO/S-VIDEO)
SERIAL
Mini DIN 8-pin x 1 (RS-232C)
Chassis
Power cord length
6´7½ (2 m)
Cabinet material
Molded material (ABS/PC)
Dimensions (W x H x D)
11-11/16½ x 2-9/16½ x 8-1/4½ (297 x 65 x 210 mm)*2
Weight
4.6 lbs. (2.1 kg)
Power supply
100–240 V AC, 50/60 Hz
Power consumption
220 W (Approx. 4 W in standby mode
with fan stopped)
