KEY POINTS - Panasonic ptlb2u lcd xga portable video projector with 2600 ansi lumens:
Daylight View technology
XGA native
Up to 500:1 contrast ratio
4:3 aspect ratio
Intelligent power management
Eco friendly with low standby power consumption (0.4 W)
Anti-theft features: security anchor, control panel lock, user password and text superimposing
Wired LAN terminal
Multi projector monitoring and control software
Top panel lamp replacement and side filter replacement for easy maintenance
Speed start (see images on-screen within a few seconds of startup)
Direct power off
Easy setup
Customizable startup logo
Quiet operation (29dB in eco mode)
Up to 5,000 hour lamp life (in eco mode)
Ceiling mountable
Easy-to-use remote control
Variable audio out
Built in speaker
Three year limited warranty
SUMMARY - Panasonic ptlb2u LCD XGA Portable Video Projector with 2600 ANSI Lumens:

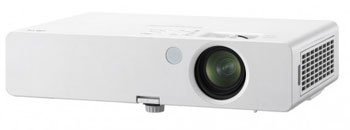

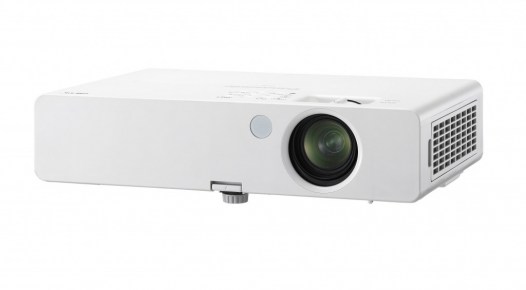

The Panasonic PT-LB2U is a micro-portable LCD projector with 1024 x 768 XGA resolution and 2.600 lumens of brightness. The compact, ultra-light unit is effortless to move between locations, measuring 12" x 2-5/7" x 8-1/14" and weighing just over five pounds.
The micro-portable incorporates Intelligent Power Management, new circuitry that ensures continuous supply of power for stable operation even if electricity fluctuates for a short duration. The projector's exclusive Daylight View Basic technology measures surrounding illumination with a built-in ambient light sensor, and corrects the image in real-time to project clear, crisp images even in brightly-lit rooms, producing lifelike images with remarkable depth.
For added flexibility, a wired LAN connection enables remote operation, which is especially ideal for ceiling-mounted use. Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC, which means a projector's status and condition can be checked without anyone having to physically walk to the room where it is installed.
The ecological design of the Panasonic PTLB2U greatly reduces any environmental impact, with power consumption a mere 0.4W in Eco Standby Mode. Direct Power Off utilizes accumulated power to keep the cooling fan operating until the lamp is cooled, so the operator can disconnect the power cable immediately after use.
Ease of operation and installation are facilitated by several advanced functions, including: Speed Start, slashing the time it takes to begin a presentation, with an image appearing about five seconds after the power button is pressed; One-Touch Auto Setup, automatically correcting the image position when the projector's input signal changes; a built-in gravity sensor correcting automatically for keystone distortion; and a Logo Transfer application enabling a user to customize a start-up logo.
For simplified maintenance, the projector incorporates top-panel lamp replacement and side filter replacement, which means it does not have to be removed from a ceiling mount for upkeep.
DETAILED SPECS - PANASONIC PT-LB2U LCD XGA PORTABLE VIDEO PROJECTOR WITH 2600 ANSI LUMENS:
Models/features
PT-LB2
LCD Panel
- Panel size
16 mm (0.63") diagonal, (4:3 aspect ratio)
- Display method
Transparent LCD panel (x3, R/G/B)
- Drive method
Active matrix
- Pixels
1,024 x 768 (x 3) / 786,432 pixels
Optical system
Dichroic mirror separation/prism synthesis system
Lens
Manual zoom (1:1-1:1.2), manual focus,
F1.64-1.87, f18.80-22.56 mm
Lamp
220 W UHM lamp
Projection size (diagonal)
838-7,620 mm (4:3 aspect ratio)
Colours
Full colour (16,777,216 colours)
Brightness*1
2,600 lumens
Center-to-corner uniformity ratio*1
85%
Contrast ratio*1
500:1 (full on/full off)
Resolution RGB
1,024 x 768 pixels
(Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.)
Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
Audio IN
M3 (L, R) x 2, 0.5 V [rms]
Audio OUT
M3 (L, R) x 1, 0-2.0 V [rms] (variable)
Serial
D-sub 9-pin x 1, for external control (RS-232C compliant)
LAN
RJ-45 x 1 for network connection, compliant with PJLink™, 100Base-TX/10Base-T
Remote control
Power supply
3V DC (R03/AAA battery x 2)
Operation range
Approx. 7 m when operated from directly in front of the signal receptor
Dimensions (W x Hx D)
46 x 115 x 21 mm
Weight
64 g (including batteries)
General
Power supply
100-240 V AC, 50/60 Hz
Power consumption
300 W (Approx. 0.4 W with standby mode set to ECO*2; 15 W with standby mode set to NORMAL and 18 W in normal standby mode when set to audio monitor out and with fan stopped.)
