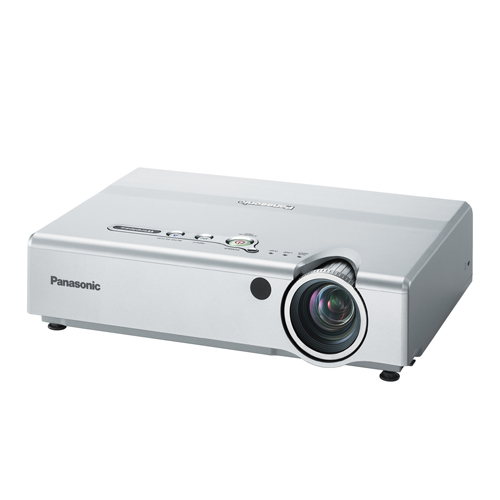

Panasonic PTLB30NTU Multimedia LCD Video Projector pt-lb30nt

Display

LCD panel

4:3 aspect ratio, micro lens array

Panel size

0.8˝ (20.32 mm) diagonal

Display method

Transparent LCD panel (x 3, R/G/B)

Drive method

Active matrix

Pixels

786,432 (1,024 x 768) x 3,

total of 2,359,296 pixels

Pixel configuration

Stripe

Lens

Manual zoom (1:1–1:1.2), manual

focus, F 1.7–1.8, f 24.0–28.8 mm

Lamp

220 W UHM™ lamp

Colors

Full color (16,777,216 colors)

Brightness

3,000 lumens

Uniformity

90%

Contrast

400:1*1 (full on/full off)

Scanning frequency

RGB

Horizontal: 15–91 kHz,

Vertical: 50–85 Hz

YPBPR

480i (525i): fH 15.75 kHz; fV 60 Hz

576i (625i): fH 15.63 kHz; fV 50 Hz

480p (525p): fH 31.5 kHz; fV 60 Hz

576p (625p): fH 31.25 kHz; fV 50 Hz

720p (750p): fH 45 kHz; fV 60 Hz

1080i (1125i): fH 33.75 kHz; fV 60 Hz

1080i (1125i): fH 28.125 kHz; fV 50Hz

S-Video/Video

NTSC, NTSC4.43, PAL-M, PAL60:

fH 15.75 kHz; fV 60 Hz

PAL, SECAM, PAL-N: fH 15.63 kHz;

fV 50 Hz

Projection size

33–300 inches/838–7,620 mm

diagonally

Throw distance

3´7˝–35´5˝ (1.1 m–10.8 m)

Optical axis shift

6:1 (fixed)

Keystone correction range

Vertical: approx. ±30°

On-screen menu

17 languages: English, French,

German, Spanish, Italian, Korean,

Russian, Chinese, Japanese, Swedish,

Norwegian, Danish, Portuguese, Polish,

Hungarian, Czech, Thai

Terminals

RGB1 IN

D-sub HD 15-pin x 1

RGB signal

R, G, B: 0.7 Vp-p, 75 ohms, Sync on

green: 1.0 Vp-p, 75 ohms

HD/SYNC, VD: TTL (positive/negative

polarity compatible)

YPBPR signal

Y: 1.0 Vp-p (including sync signal),

75 ohms; PB,PR: 0.7 Vp-p, 75 ohms

RGB2 IN/RGB1 OUT

D-sub HD 15-pin x 1 (input/output

selectable using on-screen menu)

RGB signal

R, G, B: 0.7 Vp-p, 75 ohms, Sync on

green: 1.0 Vp-p, 75 ohms

HD/SYNC, VD: TTL (positive/negative

polarity compatible)

YPBPR signal

Y: 1.0 Vp-p (including sync signal),

75 ohms; PB,PR: 0.7 Vp-p, 75 ohms

VIDEO IN

RCA pin x 1, 1.0 Vp-p, 75 ohms

S-VIDEO IN

Mini DIN 4-pin x 1,

Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms

AUDIO IN

RCA (L, R) x 1, 0.5 Vrms

(for VIDEO/S-VIDEO)

RGB AUDIO IN

M3 (L, R) x 2, 0.5 Vrms

AUDIO OUT

M3 (L, R) x 2, 0–0.5 Vrms (variable)

SERIAL

Mini DIN 8-pin x 1 (RS-232C)

Chassis

Power cord length

6´7˝ (2 m)

Power supply

100–240 V AC, 50/60 Hz

Power consumption

300 W (Approx. 4 W in standby mode

with fan stopped)

Amps

3.5 A–1.8 A

Built-in speakers

4 x 3 cm x 1 (oval),

1.0 W (monaural) output power

Cabinet material

Molded material (ABS/PC)

Dimensions (W x H x D)

12-27/32˝ x 2-31/32˝ x 9-5/32˝ (327 x 75.8 x 233 mm)

Weight

5.7 lbs. (2.6 kg)

Installation

Front/rear ceiling/desk

Operating environment

Temperature

32°–104°F (0°–40°C)

Humidity

20%–80% (no condensation)

Wireless LAN

Standard

IEEE802.11b/g

Modulation

IEEE802.11b

Direct sequence spread spectrum

(DS-SS) system

IEEE802.11g

Orthogonal frequency division multiplex

(OFDM) system

Transmission system

IEEE802.11b

CCK (11/5.5 Mbps), DQPSK (2 Mbps),

DBPSK (1 Mbps)

IEEE802.11g

64-QAM (54/48 Mbps), 16-QAM

(36/24 Mbps), QPSK (18/12 Mbps),

DPSK (9/6 Mbps)

Transmission speed

IEEE 802.11b

11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps

IEEE 802.11g

54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps,

18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps

Operation range*2

Approx. 98´5˝ (30 m)

Frequency range

2,412 MHz–2,464 MHz

Channels

1–11 ch

Supplied Accessories

Card remote control

Lithium battery for remote control

Power cord

RGB signal cable

Carrying bag

Software CD-ROM
