The feature-rich,
highly affordable Panasonic PT-LC55U SVGA projector offers a sleek, impressive
design in combination with an array of advanced digital technologies. This
ultra-light unit is easy to move between locations, from the office to the
classroom, from a church setting to a training center, and provides an ideal
alternative to rear projection television in home theater applications.
Two RGB Inputs
for Loop-through Monitoring
For exceptional presentation flexibility, this video projector is equipped
with two RGB inputs, which eliminates the need to reconnect equipment when
giving consecutive presentations. The RGB2 terminal is reversible, which can
also serve as a loop-through monitoring terminal for the RGB1 input, which
is extremely beneficial for education applications. The reversible RGB2 terminal
is always active - even in 'Stand by' mode. This time saving feature allows
an inputted video signal to Loop-through, even when the projector lamp is
not active.
"Auto Everything"
Setup
The one-touch "Auto Everything" Setup provides automatic keystone
correction and auto input selection, allowing a user to automatically tune
and adjust an image for optimal viewing. A newly developed built-in gravity
sensor detects the video projector angle relative to the floor, then corrects
for keystone distortion accordingly.
Extra-Short
Throw Lens
For bright, up-close presentations, the Panasonic PT-LC55U is equipped with
a large-diameter, extra-short throw lens that shortens the necessary projection
distance by a full 25%; for instance, only 8 feet is needed to project on
an 80" diagonal screen. The shorter projection distance saves space,
allowing the video projectors to be placed at the front of a meeting table.

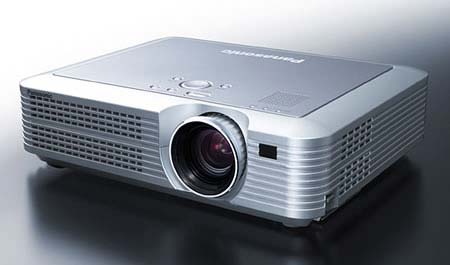

Panasonic PT-LC55U Home Theater Video LCD Projector
Specifications
General
- Panasonic PT-LC55U
Panel
0.7"
Poly-Silicon x 3
Pixels
480,000
(800 x 600) x 3 panels
Native
Resolution
RGB:
800 x 600 (SVGA)
Maximum
Resolution
RGB:
1,280 x 1,024 (SXGA)
Lamp
160W
UHM
Lamp
life
2,000
Hours (Standard mode)
3,000 Hours (Low power mode)
Brightness
1,200
ANSI lumens
CCR
90%
Contrast
Ratio
(Full
field) 400:1
Wireless
mouse
Option
(ET-RM100)
On
Screen Display
7
languages (English, French, German, Spanish, Italian, Chinese, Japanese)
Installation
Front/Rear,
Desk/Ceiling
Power
source
100
- 240V
Power
consumption
2.8-1.0A
(220W)
Dimensions
12.4"
(W) x 9.7" (D) x 3.4" (H)
310mm (W) x 243mm (D) x 85.5mm (H)
Volume
cm3
6,441
cm3
Weight
6.6
lbs. (3 kg.)
Optical
- Panasonic PT-LC55U
Zoom
(Zoom ratio)
Manual
(1-1.2)
Focus
Manual
F
2.0-2.3
F
22.0-26.2
mm
Screen
size
33~300"
Optical
axis shift
6:1
Video
Color
system: NTSC, M-NTSC, PAL, PAL-N, PAL-M, SECAM
