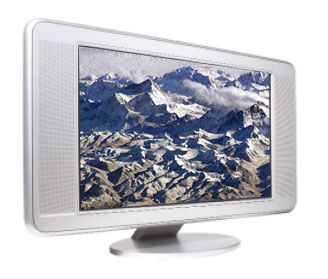

Philips 23pf9966 23 inch HDTV Ready Widescreen LCD TV with built-in speakers, table stand and NTSC tuner

No Longer Available

Back to Philips LCD TV Main

OVERVIEW - Philips 23pf9966 23 inch Widescreen LCD TV:

The Philips 23PF9966 LCD TV features Pixel Plus technology to present breathtaking nature pictures and astounding theatre-like acoustics sound with uncanny depth and clarity. This LCD TV is designed with a fusion of sensual curves integrated into an ultra-slim profile with exquisite detailing. Multiple Picture-in-Picture modes allow simultaneously watching of two video sources either Picture-in-Picture or side-by-side.

• 1280 x 768 Native Resolution
• 400:1 Contrast Ratio
• 450 nits Brightness
• 16:9 Aspect Ratio
• 25ms Response Time
• Pixel Plus technology delivers more vivid details
• Active Control  Plus+ optimizes pictures, whatever the source
• Motion adaptive de-interlacing to deliver stable and razor sharp images
• Virtual Dolby Surround sound needs no extra rear speakers
• FM Radio with 40 preset stations
• Multiple PIP modes for simultaneously viewing two video sources
• HDMI with HDCP to enjoy high-definition audio/video in a single cable

Screen (diagonal) : 23” (58 cm)
Visible screen size : 23” (58 cm)
Aspect ratio : Widescreen
Display : LCD S-IPS Active Matrix TFT
Response Time : 25 ms
Resolution : 1280 x 768
Brightness : 450 nits
Contrast Ratio : 400:1
Viewing Angle : 176 H/176 V
Anti Reflex Coated Screen
Progressive Scan
Pixel Plus : More pixel and better pixel
Digital Crystal Clear
- 3D Digital Combfilter
- Dynamic contrast
- Color Enhancement : Green/Blue Stretch
- Digital Color Transcient Improvement (CTI)
- Luminance Transcient Improver (LTI)
Active Control Plus+
- Auto sharpness
- Auto DNR
- Auto Contrast with respect to ambient light
Digital Noise Reduction (DNR)

Sound Quality
Sound Power : 10 watt rms
Music Power : 20 watt rms
2 on board Flat speakers
Virtual Dolby Surround
Dynamic Bass Enhancement

Ease of Installation
Plug & play
100 Preset channels
Autostore
Fine tuning
Sorting

Ease of Use
Side control
Text + Icon Graphical User Interface
Smart Picture (5 modes)
Smart Sound (4 modes)
Smart Listening (AVL)
6 Widescreen modes : 4:3, Zoom 14:9, Zoom 16:9, Super wide, Widescreen, Full Screen
Multi-language OSD and menu control
Program List (100 presets)
Wake up clock
Sleep timer
Smart Lock (Child lock + Parental control)
Slim Remote Control (Universal)
Swivel and tilt stand

Side Connections (AV3)
S-Video
Headphone
Video CVBS

Rear Connections
AVI : AV in, CVI/YPbPr (1fh), Audio
AV2 : AV in, S-Video, CVBS, Audio
AV4 : HDMI, Digital PC/HD input, Audio
AV5 : VGA/RGB, Analog PC/HD (2fh) input

Multiple PIP
Picture in Picture (PIP)
Picture in Graphics (PIG)
Picture by Picture (PBP)

FM Radio RDS
Stereo FM Radio
40 Preset Channels
Autostore/Manual store
Sorting
Preset List

Multimedia modes
Standard Resolution Refresh rate
VGA 640 x 480 60,72,75,85 Hz
VGA 720 x 400 70, 85 Hz
VGA 640 x 350 70, 85 Hz
MAC 640 x 480 66.67 Hz
MAC 832 x 624 74.55 Hz
SVGA 800 x 600 56, 60, 72, 75, 85 Hz
XGA 1024 x 768 60, 70, 75, 85 Hz
WXGA 1280 x 768 60, 75 Hz

Reception
Tuning System : PLL
Tuner : VHF, UHF, S-channel, Hyperband
Aerial Input : 75 Ohm Coaxial (IEC75)
Color transmission : NTSC-M
system off-air

Miscellaneous
Ambient Temperature : +5/45°C
Main : AC 90 – 240
Net Weight : 24.7 pounds
Gross Weight : 31 pounds
Set Dimensions : 27 x 14.5 x 3.4 (inch)/without Stand/ 27 x 17 x 9.5 (inch) with Stand (WxHxD)
Box Dimensions : 30 x 22.6 x 10.3 (inch) (WxHxD)

Manufacturer Homepage: www.philipsusa.com
