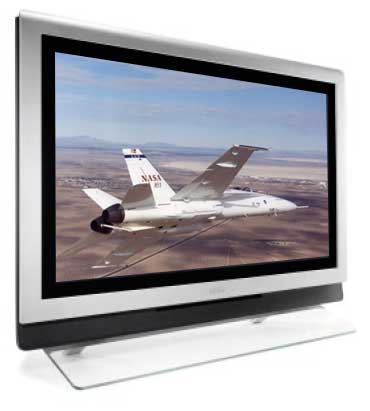

Philips Ambilight
50PF9966/37 50 inch Plasma TV Display with Dual TV Tuner,
Table Stand
and Built-In Speakers
OVERVIEW - philips 50pf9966/37 ambilight plasma tv display
Ambilight is a unique feature from
Philips that provides ambient light at tested levels in order to
improve multiple aspects of the viewing experience. The soft-light
emanating onto the wall surrounding the television has a number of
benefits:
Improves the perceived picture detail, contrast and color
Enables relaxed viewing conditions
Establishes the TV set as a design element
The unprecedented
viewing comfort of Ambilight and Plasma technology culminate in a
daring and innovative design. Ambilight is an ambient lighting
feature that projects a soft light onto the wall behind the TV. You
choose from six preset colors and white tones, or it can be fully
personalized using the custom settings. Or simply allow Ambilight
adjust the backlight color based upon the action on the screen.
Ambilight provides this optimal level, never impeding on the action,
only enhancing it. Additionally, glare and reflections are
dramatically reduced because of the diminished effects of light
striking the front of the set. Ambilight also enhances the design of
your Philips FlatTV and your interior, and creates the ultimate
environment for entertainment.
FEATURES - Philips 50pf9966 Flat Panel Plasma TV Display
1366 x 768p Resolution
3000:1 Contrast Ratio
1000 cd/m2 brightness
Pixel Plus with Digital Natural Motion for better detail with
smooth yet sharp movement
Active Control Plus+ with light sensor continually optimizes the
best picture settings
Philips unique Ambilight is proven to reveal better detail,
color and contrast from any source, resulting in a superior
viewing experience
Full Dual Screen with two integrated tuners
Sleek integrated speakers with
WOOX
technology and dome tweeters
The most modern and highest quality HDMI
connectivity
SPECIFICATIONS - PHILIPS AMBILIGHT 50PF9966 PLASMA TV SCREEN
Screen Size: 50" (127cm)
Visible Screen Size: 50" (127cm)
Aspect Ratio: Widescreen
Display: HD Plasma
Resolution 1366 x 768p
Brightness: 1000 cd/m2
Contrast Ratio: 3000:1
Viewing Angles 160h/160V
Anti-Aging Circuit
Anti Reflex Coated Screen
Pixel Plus
Progressive Scan
Digital Natural Motion
Digital Crystal Clear
Jagged Line Suppression
3D Comb filter
Active Control Plus+
Widescreen Plus
Ambilight
Full Multicolor Setting
Dimming function
6
preset modes and user preset
Full operation in Stand-by mode
Efficient, low energy lamp system
Lamp Life: >60000 Hrs
Sound
Sound Power: 2x15 W RMS
Virtual Dolby Surround
2
woofers with wOOx and 2 dome tweeters
Digital Signal Processing
TV as Center Speaker Mode
Ease of Use
Plug & Play
120 channels (cable and terrestrial)
Auto Tuning & Channel Installation ATS
Compass Graphical User Interface
Backlit Controls
RC 4307 Universal Remote for VCR/DVD/DVD-R/SAT/CABLE/AMP
6
Widescreen modes
Subtitle and Heading Shift
Auto Format/Auto Screen Fit (incl. WSSB)
Full Dual Screen with 2 tuners
Picture Freeze
Direct Program List
6
Smart Picture Settings
4
Smart Sound Settings
Smart Clock/On & Sleep Timer (240 min.)
Smart Lock (Child lock + Parental Control)
V-Chip Parental Control

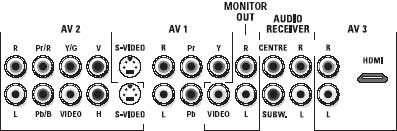

Connections
Side Connectors: S-Video Y/C in Video CVBS in (cinch) Audio L/R in
(cinch) Headphones out (3,5mm jack)
AV 1: Component Video in YPbPr (1, 2, 3Fh auto ranging), Y/C and
CVBS in, Audio L/R (cinch)
AV 2: Component Video in YPbPr or RGB/HV (1, 2, 3Fh), Y/C and CVBS
in, Audio L/R (cinch)
AV 3: HDMI (Digital Stream, SP DIF, DVI compatible), Audio L/R in
(cinch)
Monitor out CVBS (cinch), Audio L/R (cinch)
Audio out L/R (cinch)
Center Channel in (cinch) for connection to a Home Theater system
Subwoofer out (cinch)
Information
Closed Captioning full text
Reception
Tuning System: PLL Digital Tuning
Tuner: VHF, UHF, S-Channel, Hyperband
Aerial Input: 75 Ohm Coaxial (F-type)
TV System : NTSC
Video Playback : NTSC
Supported Display Resolutions
Standard Resolution Refresh Rate
VGA 640 x 480 60Hz
SVGA 800 x 600 60Hz
XGA 1024 x 768 60Hz
WXGA 1280 x 768 60Hz
Video formats
640 x 480i@60Hz – 1Fh
640 x 480p@60Hz – 2Fh
720 x 576i@50Hz – 1Fh
720 x 576p@50Hz – 2Fh
1280 x 720p@60Hz – 3Fh
1920 x 1080i@50 & 60Hz – 2Fh
1920 x 1152i@50Hz – 2Fh
Miscellaneous
Ambient temperature +5/+40°C
Mains: AC 110-120V, 60Hz
Power consumption: Normal operation 600W, Stand by <2W(tbc)
