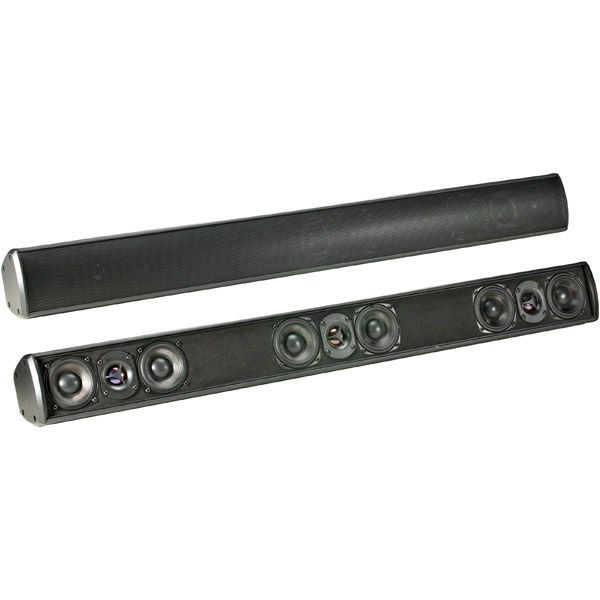

Pinnacle QP9B 3-Way 9-Element 200-Watt LCR Speaker for Flat Panel TVs

Avdeals.com No Longer Carries Pinnacle Speakers

KEY POINTS - QP9B Pinnacle 3-Way 9-Element 200-Watt LCR Speaker:

• Space-saving 9-element LCR, unique TRI-CHANNEL design
• Solid Die cast Aluminum Construction for Minimum Resonance
• Includes Slide-Fit flush wall mount bracket for horizontal orientation
• Threaded inserts allow for tilt-able bracket mounting.
• Both silver and black grilles included to match any decor
• Ultra-lightweight, titanium dome tweeter for superb detail
• Carbon graphite mid-bass drivers for smooth linear response
• Video shielded
• Gold plated binding posts
• Internally braced
• Automatic Overload Protection Circuit
• Designed and Assembled in the USA
• 10 Year Transferable Warranty on parts & labor

DETAILED SPECS - PINNACLE QP9-B 3-WAY 9-ELEMENT 200-WATT LCR SPEAKER:

System Type: (3) internal chambers each housing a 3-element, 2-Way Acoustic Suspension speaker. (9 Drivers, 3 channels, all in one cabinet)

Component Drivers:

• (3) 1" liquid cooled titanium dome tweeters with Plasma Vapor treatment for control at the highest frequencies
• (6) 3" carbon graphite woofers with butyl surrounds

Frequency Response: 100-21 kHz

Recommended Amplifier Power: 20-200 Watts RMS per channel

Operative Power Range: 15-200 Watts, 250-Watts Peak

Nominal Impedance: 8 Ohms

Dimensions: 38" Wide x 4" High x 3 7/8" Deep (including grille and mounting bracket)

Finish: Solid die-cast Aluminum, silver or black

Weight: 12 lbs. each

Manufacturer Link: www.pinnaclespeakers.com
