Pinnacle BD300
5 1/4 inch Dual 2-Way 275-Watt Center Channel Speaker
Avdeals.com No Longer Carries Pinnacle Speakers
Please see our Center Channel Speaker web page for other
brands by Clicking Here
Click to Enlarge Image

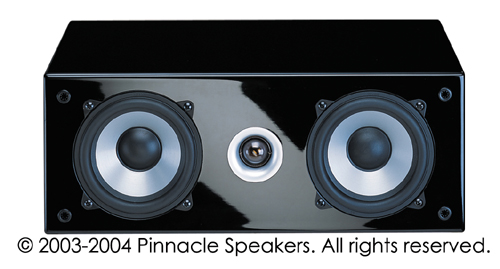

PINNACLE BD300 5 1/4 inch Dual 2-Way 275-Watt Center Channel Speaker
KEY POINTS - BD300 Pinnacle 5 1/4 inch Dual 2-Way 275-Watt Center Channel Speaker:
Power handling: 15-125 watts rms, 275 watts peak
Dual 5 1/4 inch woofers
1 inch liquid-cooled silk dome tweeter
3-element acoustic suspension center channel
Crossover frequency: 5kHz
Lustrous, black piano-gloss finish
Frequency response: 70Hz-20kHz (± 3dB)
10 year transferable warranty on parts
16 1/2 inch W x 6 1/4 inch H x 8 inch D
SUMMARY - Pinnacle bd300 5 1/4 inch Dual 2-Way 275-Watt Center Channel Speaker:
Black
Diamond is our moniker for a stunning new collection of contemporary
Audio/Home Theater speakers. Sophisticated, stylish and accurate
audio reproduction instruments, Pinnacle’s Black Diamonds are
encased in a lavish piano gloss finished cabinet. These beautiful
speakers require 40 meticulous procedures and processes to attain
their highly refined appearance. In fact, it takes a full week to
produce each cabinet. Nine stages of coatings and polishing
treatments culminate in an heirloom grade exterior that’s certain to
enhance any home décor.
But just
because they look terrific, let’s not forget their impressive sonic
attributes! Carefully chosen driver components meld through
Pinnacle’s expertly crafted crossover networks. The resultant sound
is smooth, powerful and spacious.
DETAILED SPECS - PINNACLE BD300 CENTER CHANNEL SPEAKER:
System Type:
2-Way, 3 element, Acoustic Suspension
Component
Drivers: 1" liquid cooled silk dome tweeter with neodymium
magnet, (2) 5.25" polycone woofer with rubber surrounds
Frequency
Response: 70 ‑ 20 kHz (+/‑ 3 dB)
Crossover
Frequency: 5 kHz
Recommended Amplifier Power:
15 - 125 Watts RMS per channel
Operative
Power Range: 15 ‑ 125 Watts, 275 Watts Peak
Sensitivity:
87 dB @ 1 Watt / 1 Meter (2.83 Volts Pink Noise)
Nominal
Impedance: 8 Ohms
Dimensions:
16 1/2" Wide x 6 1/4" High x 8" Deep (with grill)
