Pinnacle BD600
6 1/2 inch Dual 4-Element 300-Watt Center Channel Speaker
Avdeals.com No Longer Carries Pinnacle Speakers
Please see our Center Channel Speaker web page for other
brands by Clicking Here
Click to Enlarge Image

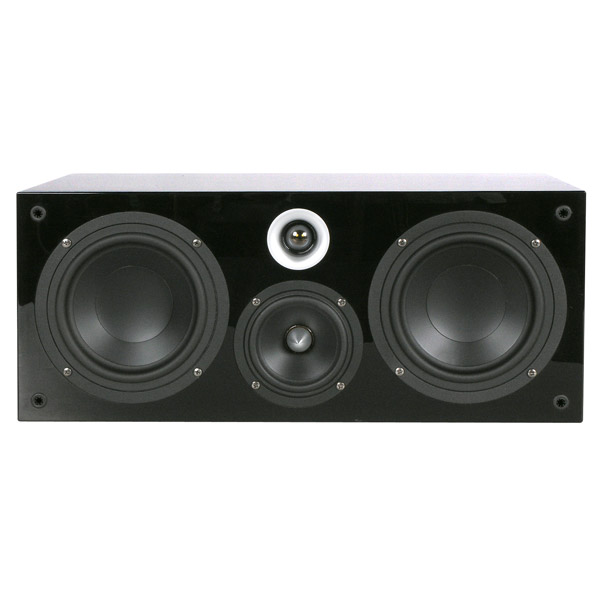

PINNACLE BD600 6 1/2 inch Dual 4-Element 300-Watt Center Channel Speaker
KEY POINTS - BD600 Pinnacle 6 1/2 inch Dual 4-Element 300-Watt Center Channel Speaker:
Power handling: 15-200 watts rms, 300 watts peak
Dual 6 1/2 inch polycone woofers with butyl surrounds and die cast baskets
4 inch polycone midrange with butyl surround and die cast phase plug
1 inch liquid cooled silk dome tweeter with neodymium magnet
Lustrous, black piano-gloss finish
Frequency response: 55Hz-20kHz
20 3/8 inch W x 8 7/16 inch H x 9 1/2 inch D
SUMMARY - Pinnacle bd600 6 1/2 inch Dual 4-Element 300-Watt Center Channel Speaker:
The BD 600 is our new top of the line, audiophile center channel. It features a dedicated 4" midrange driver with die cast phase plug and 1" silk dome tweeter, combining for exceptional clarity, accuracy and detail. The (2) 6.5" woofers feature metal die cast woofer baskets, delivering superior bass performance and definition. The BD 600 is a stand out performer, delivering an effortless and natural listening experience with music or movies.
DETAILED SPECS - PINNACLE BD600 CENTER CHANNEL SPEAKER:
System Type: 3-Way, 4-Element, Acoustic Suspension
Component Drivers:
1" liquid cooled silk dome tweeter with neodymium magnet
4" polycone midrange with butyl surround and die cast phase plug
(2) 6.5" polycone woofers with butyl surrounds and die cast baskets
Frequency Response: 55 - 20 kHz (+/- 3 dB)
Crossover Frequencies: 500 Hz & 4 kHz
Recommended Amplifier Power: 15 - 200 Watts RMS per channel
Operative Power Range: 15 - 200 Watts, 300 Watts Peak
Sensitivity: 87 dB @ 1 Watt / 1 Meter (2.83 Volts Pink Noise)
Nominal Impedance: 8 Ohms
Dimensions: 20 3/8" Wide x 8 7/16" High x 9 1/2" Deep (with
Grille)
