Pinnacle K80
8 inch 2-Way 150-Watt In-Wall Speakers with Kevlar Cones (pair)
Avdeals.com No Longer Carries Pinnacle Speakers
Please see our NXG Speaker selection for other options by Clicking Here
Click to Enlarge Image

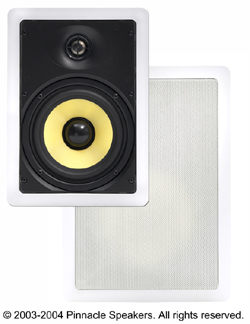

PINNACLE K-80 8 inch 2-Way 150-Watt In-Wall Speakers with Kevlar Cones
KEY POINTS - K80 Pinnacle 8 inch 2-Way 150-Watt In-Wall Speakers with Kevlar Cones:
Power handling: 20-150 watts
1 inch pivoting liquid-cooled titanium tweeter
Sensitivity: 86 dB, 8 ohms nominal impedance
Frequency response: 40Hz-20kHz
Overall: 10 1/8 inch x 14 1/4 inch x 3 11/16 inch
Cut out: 7 1/2 inch x 8 7/8 inch
Includes hardware for easy wall-mount installation
10 year
transferable warranty
SUMMARY - Pinnacle k80 8 inch 2-Way 150-Watt In-Wall Speakers with Kevlar Cones:
Our Kevlar Series of custom inwall and ceiling speakers are designed
for superior sound backed by "bulletproof" durability. Kevlar, a
miraculous cutting edge polymer, is the material of choice for
bulletproof vests and other highly specialized applications where
strength and reliability is critical. Its superior acoustical
qualities, when molded into speaker cones, are further enhanced by
our custom crafted crossover networks, known for their meticulous
detail and component quality. The result is unparalleled sound and
performance from this series of superb custom install speakers.
DETAILED SPECS - PINNACLE K-80 IN-WALL SPEAKERS:
System Type:
2-Way, Acoustic Suspension
Component
Drivers: 1" liquid cooled metallic dome pivoting tweeter,
8" Kevlar woofer with butyl surround
Frequency
Response: 40 ‑ 20 kHz (+/‑ 3 dB)
Crossover
Frequency: 4 kHz
Recommended
Amplifier Power: 20-150 Watts RMS per channel
Sensitivity:
86 dB @ 1 Watt / 1 Meter (2.83 Volts Pink Noise)
Nominal
Impedance: 8 Ohms
Dimensions:
10 1/8" Wide x 14 1/4" High x 3 11/16" Deep (Cutout: 8 7/8" x 12 3/4")
