Pinnacle KLCR
6 1/2 inch 3-Element 2-Way 200-Watt In Wall LCR Speaker with Dual Kevlar Woofers
Avdeals.com No Longer Carries Pinnacle Speakers
Please see our NXG Speaker selection for other options by Clicking Here

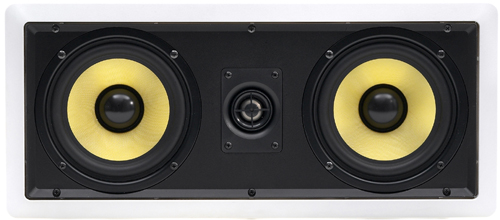

Click to Enlarge Image
PINNACLE KLCR 6 1/2 inch 3-Element 2-Way 200-Watt
In Wall LCR Speaker with Dual Kevlar Woofers
KEY POINTS - KLCR Pinnacle 6 1/2 inch 3-Element 2-Way 200-Watt
In Wall LCR Speaker with Dual Kevlar Woofers:
Sensitivity: 89 dB, 8 ohms nominal impedance
Power handling: 20-200 watts
6 1/2 inch dual Kevlar woofers
1 inch pivoting liquid-cooled titanium tweeter
Frequency response: 50Hz-20kHz
20 1/4 inch W x 8 7/8 inch H x 3 9/16 inch D
Cut out: 18 7/8 inch x 7 1/2 inch
SUMMARY - Pinnacle klcr 6 1/2 inch 3-Element 2-Way 200-Watt
In Wall LCR Speaker with Dual Kevlar Woofers:
Our Kevlar Series of custom inwall and ceiling speakers are designed
for superior sound backed by "bulletproof" durability. Kevlar, a
miraculous cutting edge polymer, is the material of choice for
bulletproof vests and other highly specialized applications where
strength and reliability is critical. Its superior acoustical
qualities, when molded into speaker cones, are further enhanced by
our custom crafted crossover networks, known for their meticulous
detail and component quality. The result is unparalleled sound and
performance from this series of superb custom install speakers.
DETAILED SPECS - PINNACLE KLCR
IN WALL LCR SPEAKER:
System Type:
3 Element, 2-Way, Acoustic Suspension
Component
Drivers: 1" liquid cooled metallic dome pivoting tweeter,
(2) 6.5" Kevlar woofers with butyl surrounds
Frequency
Response: 50 ‑ 20 kHz (+/‑ 3 dB)
Crossover
Frequency: 4 kHz
Recommended
Amplifier Power: 20-200 Watts RMS per channel
Sensitivity:
89 dB @ 1 Watt / 1 Meter (2.83 Volts Pink Noise)
Nominal
Impedance: 8 Ohms
Dimensions:
20 1/4" Wide x 8 7/8" High x 3 9/16" Deep (Cutout: 18 7/8" x 7 1/2")
