Pinnacle KLCRTP
6 1/2 inch 3-Element 2-Way In Wall LCR Speaker with Dual Kevlar Woofers- 5 Pack
Avdeals.com No Longer Carries Pinnacle Speakers
Please see our NXG Speaker selection for other options by Clicking Here
Click to Enlarge Image

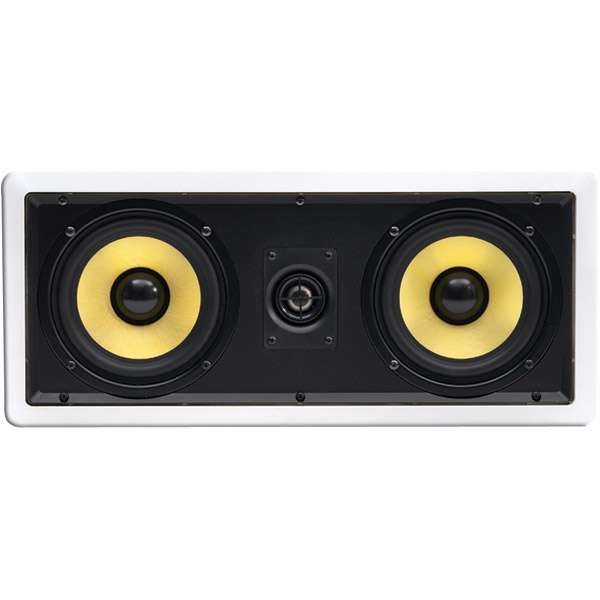

PINNACLE KLCR-TP 6 1/2 inch 3-Element 2-Way
In Wall LCR Speaker with Dual Kevlar Woofers- 5 Pack
KEY POINTS - KLCRTP Pinnacle 6 1/2 inch 3-Element 2-Way
In Wall LCR Speaker with Dual Kevlar Woofers- 5 Pack:
Driver complement: 6 1/2 inch dual Kevlar woofers, 1 inch liquid cooled pivoting tweeter
Frequency response: 50 Hz-20 kHz
Sensitivity: 89 dB, 8 ohms nominal impedance
Recommended amplifier power: 20-200 watts RMS
Overall: 20 1/4 inchW x 8 7/8 inchH x 3 9/16 inchD
Cut out: 18 7/8 inch x 7 1/2 inch
SUMMARY - Pinnacle klcrtp 6 1/2 inch 3-Element 2-Way
In Wall LCR Speaker with Dual Kevlar Woofers- 5 Pack:
The Pinnacle Kevlar Series of custom inwall and ceiling speakers are designed
for superior sound backed by "bulletproof" durability. Kevlar, a
miraculous cutting edge polymer, is the material of choice for
bulletproof vests and other highly specialized applications where
strength and reliability is critical. Its superior acoustical
qualities, when molded into speaker cones, are further enhanced by
our custom crafted crossover networks, known for their meticulous
detail and component quality. The result is unparalleled sound and
performance from this series of superb custom install speakers.
DETAILED SPECS - PINNACLE KLCR-TP
IN WALL LCR SPEAKERS:
System Type:
3 Element, 2-Way, Acoustic Suspension
Component
Drivers: 1" liquid cooled metallic dome pivoting tweeter,
(2) 6.5" Kevlar woofers with butyl surrounds
Frequency
Response: 50 ‑ 20 kHz (+/‑ 3 dB)
Crossover
Frequency: 4 kHz
Recommended
Amplifier Power: 20-200 Watts RMS per channel
Sensitivity:
89 dB @ 1 Watt / 1 Meter (2.83 Volts Pink Noise)
Nominal
Impedance: 8 Ohms
Dimensions:
20 1/4" Wide x 8 7/8" High x 3 9/16" Deep (Cutout: 18 7/8" x 7 1/2")
