Pinnacle OCHT1
5 1/4 inch On Ceiling 225 Watt Home Theater Speaker
Avdeals.com No Longer Carries Pinnacle Speakers
Please see our NXG Speaker selection for other options by Clicking Here
Click to Enlarge Image

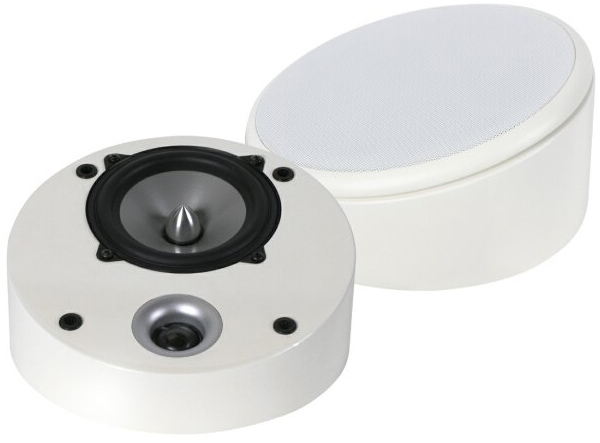

PINNACLE OC HT 1 5 1/4 inch On Ceiling
225 Watt Home Theater Speaker
KEY POINTS - OCHT1 Pinnacle 5 1/4 inch On Ceiling
225 Watt Home Theater Speaker:
Premium on-ceiling solution for Retro-fit and MDU markets
Ideal for on-ceiling / on-wall Home Theater / Music systems
3-in-1 Mounting Bracket: Flush Ceiling, Flush Wall Mount, or Inverted Wall Mount Options
Fire Code Friendly
Beautiful High Gloss Piano Lacquer Finish
Includes 2 Grilles, both Metal Perf and Cloth, to Suit Any Décor
1/4-20 Threaded Insert allows for Pivot Bracket Mounting
Butyl Rubber Surround Provides Excellent Cone Control and Exceptional Durability
Built-in Automatic Overload Protection Circuitry
10 Year Transferable Warranty on parts & labor
Designed in the USA
SUMMARY - Pinnacle ocht1 5 1/4 inch On Ceiling
225 Watt Home Theater Speaker:
Pinnacle has developed the first high performance ON-CEILING speaker that delivers audiophile performance; ideal for the retro-fit and Multi-Dwelling Unit (MDU) markets.
The OC HT 1 is the ideal sonic solution when ceiling placement is the preferred location for your music/Home Theater system. The circular cabinet of varying depths enhances the bass response by virtually eliminating standing waves. This cabinet design results in cleaner, better defined bass with an improved attack / decay ratio.
DETAILED SPECS - PINNACLE OC HT 1 5 1/4 INCH ON CEILING
225 WATT HOME THEATER SPEAKER:
System Type: 2-Way, 2nd Order Acoustic Suspension
Component Drivers:
1" liquid cooled silk dome tweeter with neodymium magnet
5.25" polypropylene woofer with butyl surround and die cast phase plug
Frequency Response: 110 - 20 kHz (+/- 3 dB)
Crossover Frequency: 5 kHz
Recommended Amplifier Power: 15 - 125 Watts RMS per channel
Operative Power Range: 15 - 75 Watts, 225 Watts Peak
Sensitivity: 89 dB @ 1 Watt / 1 Meter (2.83 Volts Pink Noise)
Nominal Impedance: 8 Ohms
Dimensions: 8 15/16" Round x 4 3/8" Deep (with Grille)
