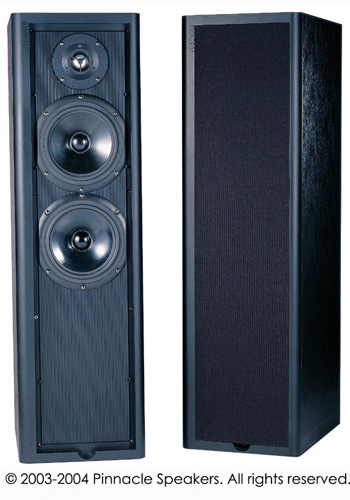

Pinnacle P6.3B
6 1/2 inch 3-Element Floor Standing Tower Speaker
OVERVIEW - PINNACLE P6.3 6 1/2 inch 3-Element Tower Speaker
This 3 element floor standing tower
produces all the depth and clarity you will ever need for your main
audio or home theater speakers. The P 6.3 is for serious music and
movie lovers. It delivers subwoofer level deep, tight bass down to
29 Hz with our dual 6 1/2" woofers and 3 patented Diaduct port
tubes. Matched to our 1" metal dome tweeter, the P 6.3 will
rival other floor standing models at 3 times the price. The finish
is charcoal metallic with gold plated binding posts, internal
bracing and split shelving crossover topology, complemented by our
10 year parts & labor warranty.
FEATURES - Pinnacle platinum
performance p6.3 tower floor standing speaker
Video Shielded
Gold plated binding posts
Solid Brass Isolation Cones
Mylar capacitors
Split Shelving
crossover system for maximum bass performance
Internally braced
Triple ported
10 Year Transferable Warranty on
parts & labor
Designed and Manufactured in the
USA
System
Type: 2-Way, 4th Order rear vented with patented
Diaduct tuning
Component
Drivers: 1" liquid
cooled metal dome tweeter
(2) 6 1/2" fibercone woofers
with rubber surrounds and cropped baskets
Frequency
Response: 29-21 kHz (+/- 3 dB)
Crossover
Frequency: 2.5 kHz
Recommended
Amplifier Power: 20-200 Watts RMS per channel
Operative
Power Range: 15-125 Watts, 300 Watts Peak
Sensitivity:
92 dB (2.83 Volts Pink Noise @ 1 Meter)
Nominal
Impedance: 8 Ohms
Dimensions: 9 7/16" Wide x 33" High x 13 1/2" Deep
