Pinnacle Quantum Plasma 5 5-Element Speaker for
Plasma TV Available in Black or Silver
Avdeals.com No Longer Carries Pinnacle Speakers

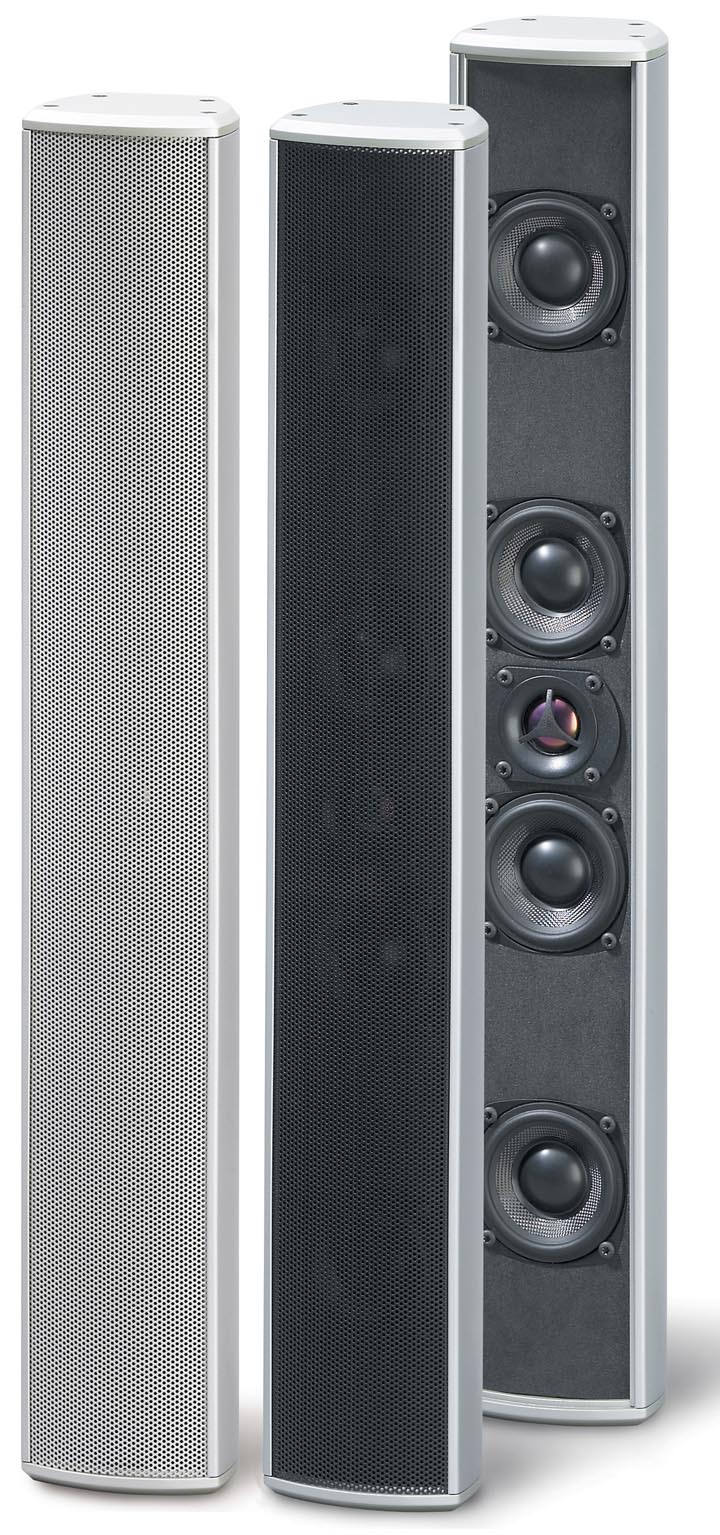

Click to Enlarge Image
(comes with silver and black grilles)
Pinnacle Quantum Plasma 5 5-Element Speaker for Plasma TV in
Black (each)
Pinnacle Quantum Plasma 5 5-Element Speaker for Plasma TV in
Silver (each)
KEY POINTS - QP5
PINNACLE QUANTUM PLASMA TV SPEAKER
Solid Diecast
Aluminum Cabinet for Minimum Resonance
Video Shielded
Hardware in
place for easy, vertical or horizontal orientation, wall-mount
installation
Gold plated
binding posts
Internally
braced
Automatic
Overload Protection Circuit
10 Year
Transferable Warranty on parts & labor
SUMMARY -
pinnacle quantum plasma 5 tv speaker
The Quantum
Plasma 5 is the perfect visual and acoustic
complement to your plasma TV or LCD monitor. Designed as a high
performance LCRS (left/center/right/surround), the speakers can be
used in any position in your home theater system or wherever an
“on-wall” application is required. The ultra-flat, slim-line
speakers come with two grilles, silver and black, to match your
décor.
User-friendly bracket mounts allow for flush mounting against a wall
either horizontally or vertically. In addition to its stylish
design, the Quantum Plasma speakers use the same ultra lightweight,
purple plasma vapor coated tweeter used in the popular Quantum
Satellites: this provides exceptionally linear and stable sonic
performance. Includes built-in overload protection circuitry and 10
year warranty.
DETAILED SPECS -
pinnacle plasma tv speaker
System Type:
Quasi 3-Way, 5-element, Acoustic Suspension
Component
Drivers: 1" liquid cooled titanium dome tweeter with Plasma
Vapor treatment for control at the highest frequencies, (2) 3"
carbon graphite midranges with rubber surrounds, (2) 3” carbon
graphite woofers with rubber surrounds
Frequency
Response: 80 ‑ 21 kHz
Crossover
Frequency: 300 Hz & 5 kHz
Recommended
Amplifier Power: 20 - 200 Watts RMS per channel
Operative
Power Range: 15 ‑ 150 Watts, 250 Watts Peak
Sensitivity:
88 dB @ 1 Watt / 1 Meter (2.83 Volts Pink Noise)
Nominal
Impedance: 8 Ohms
Dimensions:
4" Wide x 25 3/4" High x 3 7/8" Deep (including grille & mounting
bracket)
