Solid die cast
aluminum cabinet for minimal resonance
Video shielded
Unique pivot
base for vertical or horizontal orientation or wall-mount
installation
Hardware and
Allen wrenches included
Gold plated
binding posts
Internally
braced
Automatic
overload protection circuit
10 year
transferable warranty on parts and labor

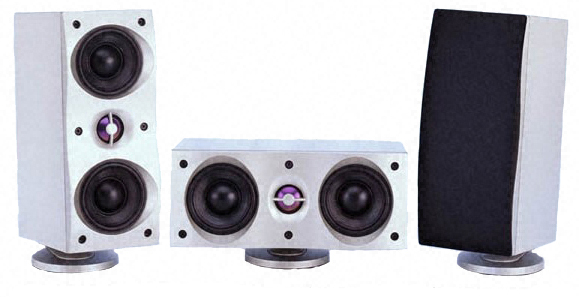

SUMMARY - pinnacle quantum satellite speakers
A marriage of
visual artistry and precision performance. Our Quantum satellite
music/home theater package is so beautiful and so dynamic that you
can place it anywhere and everywhere…And so versatile that you can
enjoy multiple systems in different rooms of your home.
We’ve made
the Quantum satellite from solid die cast aluminum, a minimal
resonance material. The dual 3” extended range drivers have carbon
graphite cones and rubber surrounds. The Quantum features an
overload protection circuit and is backed by Pinnacle’s incomparable
10 year transferable warranty.
Component
Drivers: Two (2) 3” carbon graphite extended range drivers with rubber
surrounds, 1” liquid cooled titanium dome tweeter with Plasma Vapor
treatment for controlled accuracy at the highest frequencies
Frequency
Response: 100-21 kHz
Recommended
Amplifier Power: 20-100 watts RMS per channel
Operative
Power Range: 15-100 watts, 200 watts peak
Sensitivity: 86
dB (2.83 volts pink noise @ 1 meter)
Nominal
Impedance: 8 ohms
Standing Vertical
Dimensions: 3 ¾” wide x 10” high x 7 3/8’ deep (with grill and base)
Standing
Horizontal Dimensions: 9 5/8” wide x 4” high x 7 3/8” deep (with grill
and base)
