"Judged against
that competition, the Pinnacles kick butt and kick it real hard. They are
not merely, as the old saying goes, "competitive in their
category." They sit smack on top of it and no one else comes close."
Click to Enlarge Image
Pinnacle

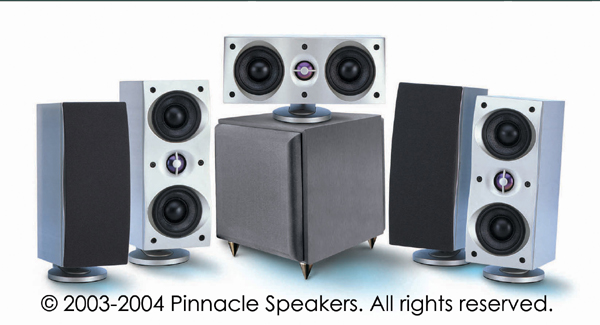

Quantum Subsonic Home Theater Speaker System
Our incredible Quantum SubSonic System
redefines state-of-the-art in satellite subwoofer systems. It features 5
of our Quantum satellites, made from solid die cast aluminum, the
world’s best satellites, and our SubSonic, the World's Smallest Real
Powered Subwoofer. This system looks as great as it sounds!
Our Quantum satellite music/home theater
package is so beautiful and so dynamic that you can place it anywhere and
everywhere…and so versatile that you can enjoy multiple systems in
different rooms of your home. Combine with our SubSonic, you can sit back,
relax, and enjoy deep authoritative and convincing sound from our
incredibly tiny sub. Pinnacle’s new engineering marvel is a diminutive 7
7/8” cube that shatters the previous performance boundaries of
microsized boxes. A marriage of visual artistry and precision performance.
"It's arguably the best set of
mini-satellites ... sold today"
A QUANTUM LEAP FORWARD:
Pinnacle's revolutionary new satellite is a marriage of visual artistry
and precision performance. Pinnacle's Quantum satellite
music/home theater system is so beautiful and so dynamic that you can
place it anywhere and everywhere...And so versatile that you can enjoy
multiple systems in different rooms of your home.
SOLID DIECAST
ALUMINUM:
We've made the Quantum satellite from solid diecast aluminum,
a minimal resonance material. The dual 3" mid-bass drivers have
carbon graphite cones and rubber surrounds. The Quantum
features an automatic overload protection circuit to prevent blowouts and
is backed by Pinnacle's incomparable 10 year transferable warranty.
OUR NEW PURPLE PLASMA
TWEETER:
The Quantum's remarkable performance is due in part to its cutting edge
titanium substrate tweeter design. Ultra lightweight titanium exhibits
superb acoustical characteristics which results in the most revealing high
frequency response obtainable.
THE TECHNICAL
CHALLENGE:
At higher listening levels the ultra lightweight titanium can become
hyper-excited and lose control thereby reducing its accuracy and linear
response characteristics.
THE PINNACLE SOLUTION:
We employ a special patented process known as Cathodic Arc Evaporation
which provides a protective plasma vapor coating to the titanium
diaphragm. This coating allows the tweeter to maintain control even at he
highest frequency ranges. The resultant sonic performance is exceptionally
linear and stable. The pleasing purple hue is derived from the
application.
Features of the Pinnacle
Quantum Satellites:
Solid Diecast
Aluminum Cabinet for Minimum Resonance
Video Shielded
Unique MVP
(Multi-Variable Positioning brackets allow for vertical or horizontal
orientation or easy wall-mount installation. Hardware included.)
Hardware in place for
easy wall-mount installation
Gold plated binding
posts
Internally braced
Automatic Overload
Protection Circuit
10 Year Transferable Warranty on parts
& labor
DETAILED
SPECS - Pinnacle Quantum
Subsonic System
System
Type: 2-Way, 3-element, Acoustic
Suspension
Component
Drivers: 1" liquid cooled
titanium dome tweeter with Plasma Vapor treatment for control at the
highest frequencies
(2) 3" carbon graphite woofers
with rubber surrounds
Frequency
Response: 100-21
kHz
Crossover
Frequency: 2.5 kHz
Recommended
Amplifier Power: 20-100 Watts RMS per
channel
Operative
Power Range: 15-100 Watts, 200 Watts Peak
Sensitivity:
86 dB (2.83 Volts Pink Noise @ 1 Meter)
Nominal
Impedance: 8 Ohms
Dimensions:
3 3/4" Wide x 9 5/16" High x 7 3/8" Deep
Finish:
Solid Diecast Aluminium
Weight:
10 lbs. per pair
SUMMARY -
Subsonic Powered Subwoofer
"It sounded close to Perfect"
Sit back, relax and enjoy deep
authoritative and convincing bass from our incredibly tiny SubSonic subwoofer.
Pinnacle’s newest engineering marvel is a diminutive 7 7/8”
cube that shatters the previous performance boundaries of microsized
boxes. Now you no longer need to compromise by choosing between superb
bass response or a visually discreet, unobtrusive product. Most potent
subwoofers are housed in physically large boxes that encroach on your
living space. Not so with the SubSonic. We achieve spectacular results
with our proprietary subcompact amplifier design mated to a bipolar pair
of specially customized 6 1/2” woofers. The impressive 350 Watt output
produces astonishing bass levels, deep, clean and penetrating down to 28
Hz (-3 dB) with a maximum output of 107.5 dB SPL. Amazing results from
such a tiny subwoofer! The SubSonic makes its presence known and felt even
if discreet placement makes it hard to spot in your listening room!
Features of the Pinnacle
Subsonic Sub woofer:
Anti-Clipping Circuit for High Level
Undistorted Bass!
Bipole Configuration for Maximum Bass
in Minimum Space!
Solid Brass Isolation Cones
Speaker Level Inputs & Outputs
Phase Adjustment Switch
Auto On/Off circuit with LED indicator
Variable Subwoofer Low Pass Filter:
50-150 Hz
Satellite Speaker Crossover: First
Order @ 80 Hz
7 year transferable warranty for parts
& labor, 2 years on amp
Component Driver:
Dual 6.5" heavyweight fibercone woofers with rubber surrounds,
2" voice coils, and 30 ounce magnets
Subwoofer Low End Frequency Response:
28 Hz (- 3 dB)
Maximum SPL:
107.5 dB
Variable Subwoofer Low Pass Filter:
50 - 150 Hz
Satellite Speaker Crossover:
First Order @ 80 Hz
System Power:
350 Watts
Dimensions:
7 7/8" Wide x 7 7/8" High x 7 7/8" Deep (without grills
& Isolation cones)
9 1/4” Wide x 8 3/8” High x 9 3/8” Deep (with grills & Isolation
cones & amp protrusions)
