Split Shelving crossover system for maximum bass performance
Automatic Overload Protection Circuit
Butyl Rubber Surround Provides Excellent Cone Control and Exceptional Durability
Gold plated binding posts for a high quality and secure connection
12 3/4 inch width fits between studs
Paintable micro-perf grille
Hardware in place for easy wall mount installation
Includes Rough-in Kit
Video shielded to allow placement near TV without interference

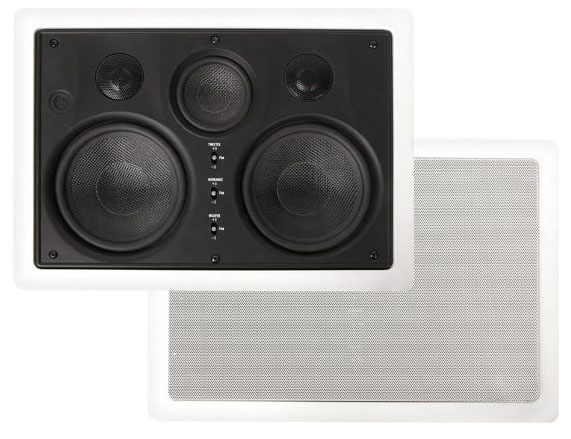

SUMMARY - Pinnacle superk555 5 1/4 inch 5-Element 200-Watt In-Wall Center Channel Speaker with Kevlar Cones:
Our Kevlar Series of custom in-wall and ceiling speakers are designed for superior sound backed by "bulletproof" durability. Kevlar, a miraculous cutting edge polymer, is the material of choice for bulletproof vests and other highly specialized applications where strength and reliability are critical. Its superior acoustical qualities, when molded into speaker cones, are further enhanced by our custom crafted crossover networks, known for their meticulous detail and component quality. The result is unparalleled sound and performance from this series of superb custom install speakers.
DETAILED SPECS - PINNACLE SUPER-K555 IN-WALL CENTER CHANNEL SPEAKER:
System Type: 5 Element, 4-Way, Acoustic Suspension
Component Drivers:
1" liquid cooled pivoting titanium dome supertweeter with
Neodymium magnet
1" liquid cooled pivoting titanium dome tweeter with Neodymium
magnet
3" woven Kevlar cone, high definition midrange with butyl
surround
(2) 5.25" woven Kevlar cone, long throw woofers with butyl
surrounds, 20 ounce magnets & 1.25" voice coils
Frequency Response: 60 - 20 kHz (+/- 3 dB)
Crossover Frequency: 1.8 kHz, 5 kHz & 10 kHz
Recommended Amplifier Power: 20 - 200 Watts RMS per channel
Sensitivity: 91 dB @ 1 Watt / 1 Meter (2.83 Volts Pink Noise)
Nominal Impedance: 4 or 8 Ohms
Dimensions: 14" Wide x 10" High x 3 5/16" Deep (Cutout: 12 3/4"
x 8 3/4")
