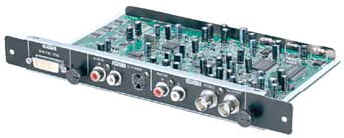

Pioneer PDA-5002 video card for use with Pioneer CMX Models

No Longer Available

Back to main Pioneer Plasma Page

Please Note

This video card is required if you plan to use Pioneer CMX Plasma displays, and is included with ALL Pioneer 503CMX and 433CMX monitors purchased through our site. This card would only be required if you have purchased a plasma elsewhere which did NOT include the video card.

Optional video card designed specifically for the PDP-503CMX and PDP-433CMX allows Video, High Definition and digital RGB inputs

Product Brochure for the PDA-5002

• Video Input/Output Terminals:
  • Composite Video Signal: Input (BNC) x 1 Output (BNC) x 1
  • Y/C Separate Video Signal: Input (S-terminal) x 1
  • Digital RGB Input Terminals (DVI standard)
  • Digital RGB Signal: Input (DVI-D 24-pin) x 1
  • Individual resolution of (VGA, SVGA, XGA, SXGA) should apply to a vertical frequency of 60Hz.*
    *Not compatible with copy protection (HDCP)
• Audio Input Terminals:
  • Audio Signal: L/R Input (pin x 2) x 2
