**Video Card
Required For Home Theater Use and is included in our
price**
Please note: This Pioneer Plasma display does not contain a tv tuner,
therefore a digital cable or satellite box will be required to receive
television signals. If you wish to view non-digital cable tv, we
recommend the
TVP500F
card from Aurora Multimedia. This video card has a built-in tv tuner.

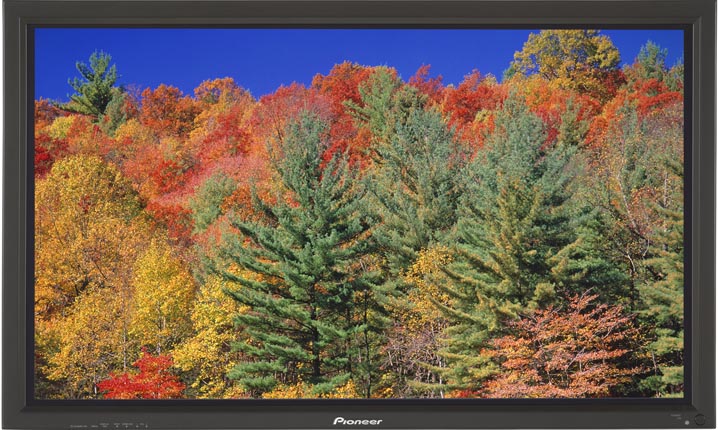

KEY POINTS - PDP427CMX Pioneer 42 inch HDTV Plasma Tv Screen:
Number of Pixels 1024 x 768
Brightness: 3000:1*
Contrast: 1500 *
Aspect Ratio 16:9
Weight 67 lbs. 4oz
DVI w/HDCP Input
* Estimated
Contrast Ratio and Brightness based on
previous models.
SUMMARY - Pioneer pdp427cmx 42 inch HDTV Plasma Tv Screen:
Pioneer’s PureVision PDP-427CMX is a new 42” high resolution professional plasma display that enhances digital signage, meeting room, board room and other commercial applications with its proprietary technologies for excellent image quality in all business environments. Pioneer sets a new industry standard for picture performance with the integration of its proprietary First-Surface Pure Color Filter that ensures enhanced color reproduction and the darkest black levels with improved contrast ratios. Working in concert with a multitude of Pioneer proprietary technologies, the new professional display features a new black bezel for a unique aesthetic look for commercial use.
Effective Screen Size (W x H) 36-9/32” (921.6 mm x 515.3 mm) (42. in. Diag)
Aspect Ratio 16:9
Number of Pixels 1024 (Hor.) x 768 (Ver.)
Pixel Pitch 0.9 (Hor./ RGB trio) mm x 0.671 (Ver.) mm
Dimensions (W x H x D) 40-1/4” x 24-1/32” x 3-27/32”
(1022 mm x 610 mm x 98mm)
Weight 67 lbs. 4oz (30.5 kg)
Power Consumption 285 W
Power Requirements AC 100 V to 120 V± 10%, 50/60 Hz
Operating Temperature 32° F - 104° F
Operating Humidity 20% - 80%
Regulations UL 60950-1, FCC 15B class B, C-UL
Input Terminals
Input 1 (In) Mini D-Sub15-pin RGB : 0.7 Vp-p/75 Ohms G on Sync: 1 Vp-p/75 OHD/CS,VD : TTL level/2.2k Ohms Compatible with Microsoft Plug & Play (VESA DDC 1/2B)
Input 1 (Out) Mini D-Sub15-pin Analog RGB Signal (G on Sync compatible) 75 Ohms
Input 2 (In) DVI-D24-pin Digital RGB Signal (DVI 1.0 Standard) Compatible with Microsoft Plug & play (VESA DDC 2B) and HDCP*
*Applies only when equipped with Pioneer PDA-5003 or PDA-5004
Video Card
Audio Input/Output Terminals
Connector Level/Impedance
Audio 1 IN Stereo mini L/R: 500 mVrms/more than 10k Ohms
Audio 2 IN Stereo mini L/R: 500mVrms/more than 10k Ohms
Audio 3 OUT Stereo mini L/R: 500 mVrms/less than 5k Ohms (FIXED)
Speaker OUT L/R: 6-16 Ohms/8 W +8 W(8 Ohms)
Control Terminals
RS-232C (for control by computer) Connector D-sub 9Pin
RS-232C (for control by computer) Baud Rate 1200, 2400, 4800, 9600, 19200, 38400 bps
Remote Control IN/OUT Connector Mini DIN 6-pin (x2)
