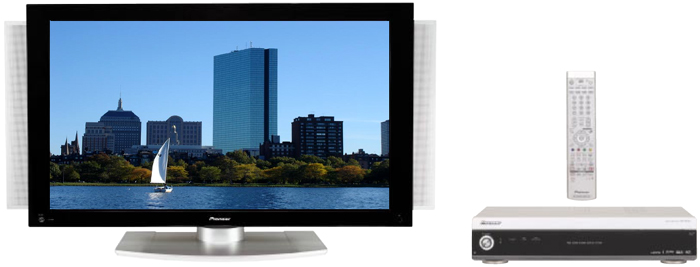

PIONEER PDP4345HD 43 inch True HDTV Plasma TV Display
Click For Larger Image
Comments Please Note: This unit is a "turn
key" plasma tv and is recommended for installations where no separate
sound system is used. If your system has a surround sound receiver or
separate sound system and you are using Digital cable or satellite
you may wish to consider the
Pioneer
PDP-434CMX plasma display. Wall hanging installation notes: Due to
the large size of the media box cables wall hanging of this plasma can
be difficult due to cable fishing. Extra large holes will be required
to fish cables through studs.
OVERVIEW - pioneer pdp-4345hd 43 inch plasma tv display:
The Pioneer PDP-4345HD
plasma tv comes fully loaded. Its outboard media receiver is equipped with a Digital Cable Ready Tuner with a basic Passport EPG and an ATSC terrestrial HDTV tuner.
With
Pioneer’s new Advanced PureCinema with 3-3 pulldown,
film-based material on DVD, videotape, and even regular TV will match
the smooth, natural reproduction you’d see in a theater.
And
Pioneer’s exclusive PureDrive system keeps video signals entirely in a lossless
digital domain, for greater signal control and far higher video
quality.
FEATURES - Pioneer Pdp-4345hd 43 inch Plasma Screen:
Native
XGA Resolution (1024 x 768p)
1100 cd/m2 brightness
HDMI (w/HDCP) x 2
IEEE 1394 Firewire digital connection
3:3 pulldown
Integrated ATSC tuner
Includes:
Plasma Panel, Media Receiver
Box,
Speakers, Swivel Stand, Smart Remote
and
3 Meter Digital Connection.
2 Way Speakers Can be Mounted Flush with The Panel Or Recessed
With 3:3 Pull Down Converts All Signals to 768P First Plasma
Capable of 72 Hz Display
ACE II (Advanced Continuous Emission II)
True 10-bit Gray Scale/1024 Levels Ability to Display Over 1
Billion Colors
PureDrive
All Video Signals Processed in the 10-bit Digital Realm Only One
A/D Conversion - No Other Unnecessary D/A or A/D Conversions
Pure Color Filter
More Accurate Color Than Any CRT
Contrast Ratio
data not available
Ultra Bright
1,100
cd/m2
Adjustable Color Temperature
3 Settings w/ 6500 Degrees
Multi Picture Window
P-I-P Or Split Screen With Any Source (NTSC, HD, PC)
HDMI Connections
Yes
IEEE-1394 Digital Interface
Yes
Component RGB w/BNC Connectors
Yes
Integrated ATSC Tuner
Yes
3 Dimensional Y/C Separation
Yes
Energy Star Compliant
Yes
Includes
Plasma Panel, Media Receiver, Speakers, Swivel Stand, Smart
Remote
and
3 Meter Digital Connection.
2 Way Speakers Can be Mounted Flush with The Panel Or Recessed
Optional Accessories
10 Meter Digital Connection Cable
Yes
Flush Mount Wall Bracket
PDWB-5003-PA
Tilt Mount Wall Bracket
PWM-503-PA
Inputs/Outputs
Antenna Input
VHF x 2 (75 ohms Unbalanced F connector)
Antenna Output
VHF x 2 (75 ohms Unbalanced F connector)
A/V Input (Front)
x 1 (RCA Pin)
A/V Input (Rear)
x 3 (RCA Pin)
S-Video Input (Front)
x 1
S-Video Input (Rear)
x 2
S-Video Output (Rear)
x 1
Component Input (Front)
x 1
Component Input (Rear)
x 2
D - Sub 15 Input (Front)
x 1 (For PC Input)
Digital Audio Output (Rear)
x (Optical)
iLink
x 2 Terminals
HDMI Input
x 2 (with HDCP)
SR In/Output
Yes (Out = SR+)
Dimensions (inch/lbs)
Display (Width-Height-Depth)
W 44-1/8" x H 25-11/16" x D 3-7/8"
Display Weight
67lbs. 4oz.
Media Receiver (Width-Height-Depth)
W 16-9/16" x H 3-9/19" x D 11-11/16"
Media Receiver Weight
12 lbs. 9 oz.
Warranty
Parts and Labor
1 year/Residential applications only/ Image persistence is not
covered
