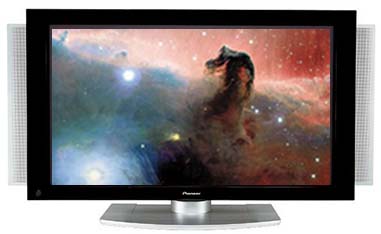

Pioneer PDP-5040HD 50-inch HDTV PureVision Plasma TV with
Built-in Speakers, Table Stand and Media Box
Comments Please Note: This unit is a "turn
key" Plasma tv and is recommended for installations where no
separate sound system is used. If your system has a surround sound
receiver or separate sound system and you are using Digital cable or
satellite you may wish to consider the Pioneer
PDP-504CMX plasma display Wall hanging installation notes:
Due to the large size of the media box cables wall hanging of this plasma
can be difficult due to cable fishing. Extra large holes will be required
to fish cables through studs.
OVERVIEW - Pioneer Pdp-5040hd 50 inch Hdtv Plasma Tv Display
The Pioneer PDP-5040HD is the newest 50 inch Purevision Plasma Tv from Pioneer. The
PDP-5040HD is a 50 Plasma tv which includes a separate multimedia box. This
box includes a ATSC hdtv tuner (for HDTV digital cable or or HDTV satellite transmissions you will still require a separate receiver from
your cable or satellite company) The Pioneer 5040 HDTV
plasma also includes a HDMI connection to allow a digital interface with
HDMI equipped sources.
FEATURES - pioneer pdp5040hd
purevision plasma screen
Native Wide XGA Resolution (1280 x 768p)
16:9 Aspect Ratio
1000 cd/m2 Brightness
Built in ATSC Tuner receives over the air HDTV
Transmission if available in your area (separate antenna required,
Purchase separately)
Built in Stereo speakers
Swivel table stand included
Media box allows single cable feed to plasma screen,
includes 3 meter cable
PIP / Split screen
SPECIFICATIONS - PIONEER PUREVISION PLASMA PDP5040HD HDTV PLASMA TV
Full High Definition Resolution
Wide
XGA Resolution (1280 x 768p)
16:9 Aspect Ratio
Yes
Advanced
With 3:3
Pull Down Converts All Signals to 768P First Plasma Capable of 72 Hz
Display
Ultra Bright
1,000
Cd/m2
Deep Encased Cell Structure
Yes
Adjustable Color Temperature
3
Settings w/ 6500 Degrees
Multi Picture Window
P-I-P Or Split Screen With Any Source (NTSC, HD, PC)
HDMI Connections
Yes
IEEE-1394 Digital Interface
Yes
Component RGB w/BNC Connectors
Yes
Integrated ATSC Tuner
Yes
3 Dimensional Y/C Separation
Yes
Energy Star Compliant
Yes
Includes
Plasma Panel, Media Receiver, Speakers, Swivel Stand, Smart Remote And 3
Meter Digital Connection
Inputs/Outputs
Antenna Input
VHF 3
Antenna Output
VHF 2
A/V Input (Front)
1 (RCA Pin)
A/V Input (Rear)
3
(RCA Pin)
S-Video Input (Front)
1
S-Video Input (Rear)
2
S-Video Output (Rear)
1
Component Input (Front)
1
Component Input (Rear)
2
PC Inputs
1
iLink
2 Terminals
Dimensions (WxHxD)
W 50" x H 29" x D 3 7/8"
Parts and Labor
1 year/Residential applications only/ Image persistence is not covered
