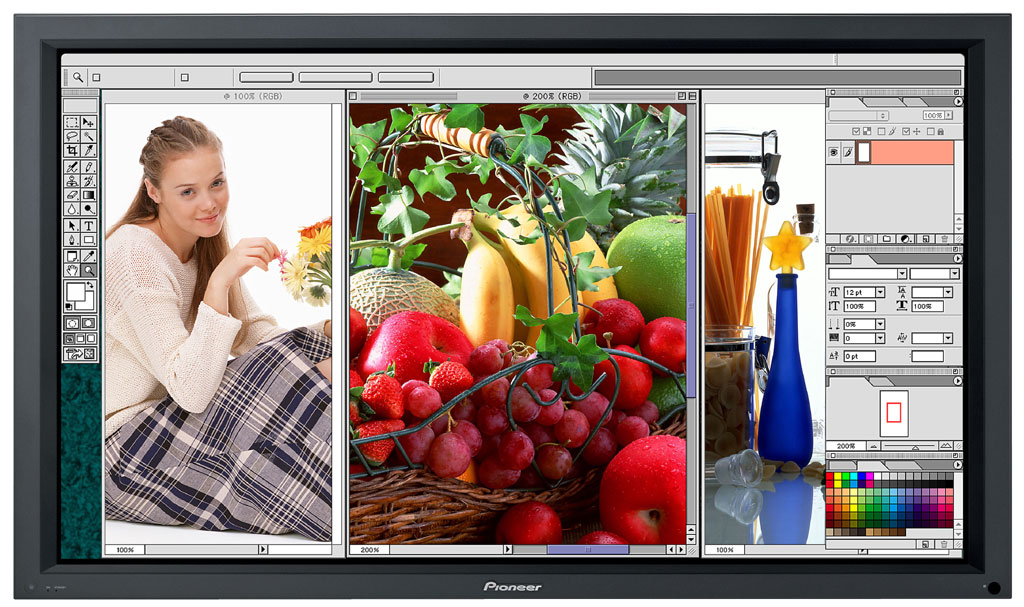

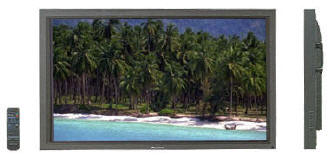

Pioneer PDP-505CMX 50 inch True HDTV Plasma Tv Screen

No Longer Available

Replaced by Pioneer PDP-507CMX

Click to Enlarge Image

**Video Card Required For Home Theater Use and is
included in our price**

Please note: This Pioneer Plasma display does not contain a tv tuner, therefore a digital cable or satellite box will be required to receive television signals. If you wish to view non-digital cable tv, we recommend the TVP500F card from Aurora Multimedia. This video card has a built-in tv tuner.

PDA-5003
BNC Inputs

PDA-5004
RCA Inputs

KEY POINTS - PDP505CMX Pioneer 50 inch True HDTV Plasma Tv Screen:

• Native WXGA Resolution (1280 x 768 )
• Aspect Ratio 16:9
• 1100:1 Contrast Ratio
• Brightness 1000 cd/m2 (white peak, panel)
• DVI w/HDCP input
• First Surface Pure Color Filter
• Deep Encased Cell Structure
• Expansion card slots
• Pure Drive technology
• Includes video card, tabletop feet

First Surface Pure Color Filter

For end-users who want their display to attract attention, Pioneer’s display with the First Surface Pure Color Filter reproduces the most brilliant lifelike colors possible while providing better contrast levels in bright environments and the most accurate picture quality currently available.  Pioneer’s new technology uses one less piece of glass than in previous models, reducing environmental waste in manufacturing and eventual recycling.  It improves picture quality by reducing reflection and increasing black levels.

Deep Encased Cell Structure

The cells of a plasma display panel, where light is generated, are the most important factor determining image quality. Pioneer has continually refined our cell technology, which is called Deep Encased Cell Structure. The latest version used in the PDP-505CMX incorporates an additional green fluorescent body material, contributing to ultra-high contrast and 1000 cd/m2 brightness.

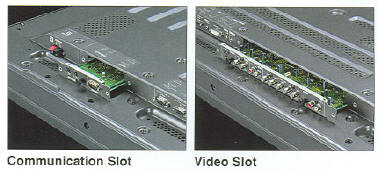

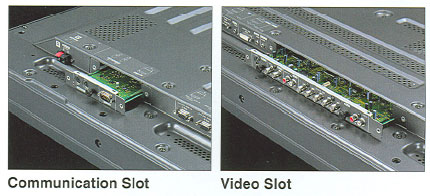

Expansion Solutions Card Slots

Pioneer’s vision for its Expansion Solutions program is to provide a more future-proof environment for plasma displays by enabling users to customize their display to meet the rapid evolution of display network control and monitoring technology.  Pioneer’s plasmas can be adapted through expansion cards to allow access to the World Wide Web, to create a TV tuner, for system control, MPEG playback, signal interface, wireless connectivity or for an imbedded PC.  The flexibility and adaptability of Pioneer’s newly introduced PDP-505CMX and the stalwart PDP-504CMX and PDP-434CMX enable them to outperform the competition today as well as into the future.  As expert third party manufacturers continue to develop new expansion cards, the breadth of new applications using Pioneer’s plasma displays will grow exponentially.

Pure Drive

The PDP-505CMX employs Pioneer’s PureDrive technology to maintain the purest digital signal possible for a clear, smooth and natural image quality. PureDrive includes:

• Advanced Continuous Emission III (ACE III) reduces the visible steps between the levels of color being viewed making color transitions smoother than before.
• Pioneer’s unique Deep Encased Cell Structure and the use of fluorescent materials results in one of the highest brightness levels (white peak) in the industry.
• Digital Noise Reduction (DNR) effectively reduces random noise.
• MPEG Noise Reduction effectively reduces mosquito noise unique to MPEG signals.
• Natural Enhancer emphasizes image contours without causing adverse effects such as rough-edged images.
• Color Detail Adjustment allows users to independently fine-adjust the six basic colors.

Pioneer’s plasma tv displays offer significant longevity for a commercial user. Sixty thousand hours is an approximate time for the display panel to reach half of its original luminescence. This approximation may vary depending on source and type of content, settings, environment and use. This approximation does not provide or imply any warranty beyond the manufacturer's standard limited warranty.

Additional Features

• Three Picture-in-Picture (PiP) Display Modes offers a variety of PiP combinations.
• Intelligent Auto Setup function automatically adjusts the screen when a computer is connected.
• Point Zoom function allows users to expand any portion of a PC image in three steps 1.5x, 2x and 3x for emphasizing key points in a presentation.
• 2x2 Enlarged Display function optimizes images depending on the input source when the four-segment multi screen display is used.
• Error Information function performs self-diagnosis of a malfunction and displays its cause using error codes as a sequence of lights on the front of the display for easy diagnosis.
• Screen Management gives integrators the ability to schedule video patterns at predetermined intervals to help achieve even wear of the phosphors in the panel allowing Pioneer’s plasmas to be better suited to withstand the rigors of digital signage and other professional display applications.
• The PDP-505CMX professional plasma display offers approximately 360 watts average consumption – without limiting performance.

• Pioneer’s plasma displays were the industry’s first to receive Microsoft’s Windows Hardware Qualification Labs (WHQL) certification of compliance. The PDP-505CMX continues this tradition by providing Plug & Play drivers to support Microsoft Windows and other operating systems.

• RS-232 Get Command can transmit various information to a PC via the RS-232C link, including power on/off, input number, signal detection and complete error data. This ensures that remote monitoring is worry-free.

• Various Energy Save Modes are available, including Power Save;, Intermediate; Linear Brightness which decreases the peak intensity of high-brightness images; and Auto Brightness Control which uses a light sensor to automatically adjust the brightness depending on room lighting.

SUMMARY - Pioneer pdp505cmx 50 inch True HDTV Plasma Tv Screen:

Pioneer Plasma Tv Display Panels have proven their worth in a wide variety of home theater, professional and public display applications, and the PDP-505CMX offers an even higher level of quality than previous models. In addition to Pure Drive technology and unique cell structure, it incorporates a new color filter that enhances contrast and color performance in bright environments where PDP’s are generally used. Along with its unrivaled image accuracy and clarity, this PDP offers exceptional expandability, reliability and functionality. You can be confident that the Pioneer PDP-505CMX is a sensible investment from day one to years down the road.

DETAILED SPECS - PIONEER PDP-505CMX HDTV PLASMA SCREEN:

Rear Panel View
(click to enlarge image)

Pioneer Plasma TV Setup - Frequently Asked Questions

GREEN SCREEN:  I've installed my plasma, and wired everything correctly - Why is my picture green?

Pioneer sets their plasma tv's to a default RGB setting at the factory. You need to switch your color settings to COMPONENT. Follow this simple procedure.

1) with the plasma on and receiving a component video signal through INPUT 5, press the MENU button on your remote.

2) press the RIGHT button to select SETUP.

3) press the DOWN button to select COLOR DECODING.

4) press the SET button repeatedly until it says COMPONENT1.

5) press the MENU button to exit. Congratulations! You're done!

ORBITER:  How do I turn on the Orbiting feature?

The Orbiter is the most important feature in extending the lifespan of your plasma. Follow these simple instructions to dramatically reduce phosphor burn.

1) With the plasma on and receiving a signal, press the MENU button.

2) press the RIGHT button to select OPTIONS.

3) press the DOWN button to select ORBITER.

4) press SET to switch your orbiter to ON.

5) press the MENU button to exit. Congratulations! You're done!
