**Video Card
Required
For Home Theater Use and is included in our
price**
Please note: This Pioneer Plasma display
does not contain a tv tuner, therefore a digital cable or
satellite box will be required to receive television signals. If you wish to
view non-digital cable tv, we recommend the
TVP500F card from
Aurora Multimedia. This video card has a built-in tv tuner.

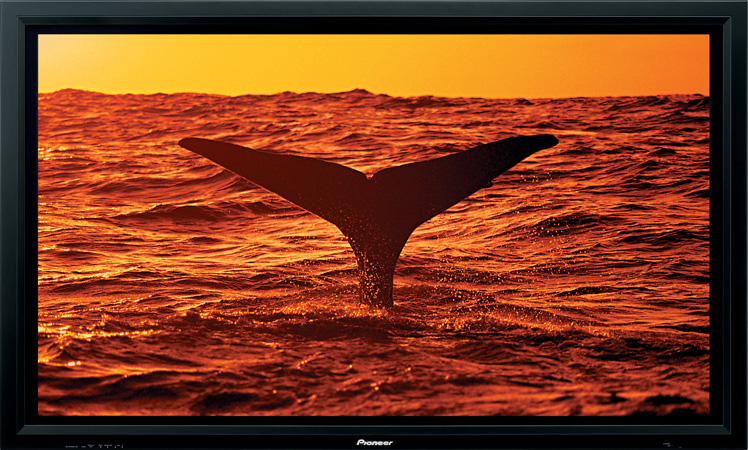

KEY POINTS - PDP607CMX Pioneer 60 inch True HDTV Plasma Tv Screen:
Resolution 1365 x 768
Brightness: 3000:1*
Contrast: 1500 *
Aspect Ratio 16:9
* Estimated Contrast Ratio and Brightness based on
previous models.
SUMMARY - Pioneer pdp607cmx 60 inch True HDTV Plasma Tv Screen:
Expand the possibilities with Pioneer’s PDP-607CMX featuring versatile Expansion Solutions, as well as 60 generous inches of gorgeous images. All the more opportunity to appreciate higher brightness and greater contrast, courtesy of Pioneer’s new Crystal Emissive Layer technology. Plus Pure Color Filter II technology designed to significantly reduce light reflection and provides higher contrast and clarity for improved image reproduction even in bright environments. This amazing picture quality is powered by Pioneer’s new Pure Drive Pro image processing, developed exclusively for professional displays, to deliver a clear, smooth, and natural image quality in any professional application.
DETAILED SPECS - PIONEER PDP-607CMX 60 INCH TRUE HDTV PLASMA TV SCREEN:
Specifications
Effective Screen Size (W x H) 51-29/32" x 29-7/32 (60in.Diag.)
Aspect Ratio 16:9
Number of Pixels 1365 (Hor.) x 768 (Ver.)
Pixel Pitch 0.966 (Hor./RGB trio) x 0.966 (Ver.) mm
Dimensions (W x H x D) 57-7/8" x 34-21/32" x 4-13/16"
Weight 136 lbs. 11 oz (62.0 kg)
Power Consumption 450W
Power Requirements AC 100-120V±10%, 50/60Hz
Operating Temperature 32° F - 104° F
Operating Humidity 20% - 80%
Regulations UL 60950 , FCC 15B class B, C-UL
Warranty 1 Year Parts & Labor (In Home)
Input Terminals
Input 1 (In) Mini D-Sub 15-pin Analog RGB Signa
Input 1 (Out) Mini D-Sub15-pin Analog RGB Signal
INPUT 2 IN DVI-D 24-pin Digital RGB Signal (DVI 1.0 Standard) Compatible with Microsoft Plug & play
(VESA DDC 2B) and HDCP*
*Applies only when equipped with Pioneer Video Card PDA-5003 or PDA-5004
Audio Input/Output Terminals
Audio 1 IN Stereo mini L/R: 500 mVrms/more than 10k Ohms
Audio 2 IN Stereo mini L/R: 500 mVrms/more than 10k Ohms
Audio 3 OUT Stereo mini L/R: 500 mVrms/less than 5k Ohms (FIXED)
Speaker OUT L/R: 6-16 Ohms/9W + 9W(6 Ohms)
Control Terminals
RS-232C (for control by computer) Connector D-sub 9-Pin
RS-232C (for control by computer) Baud Rate 1200,2400,4800,9600,19200,38400 bps
