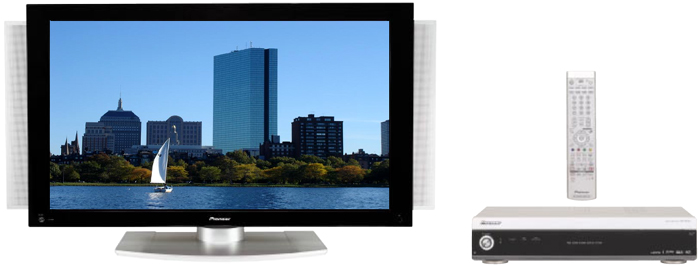

Pioneer PDP-5045HD 50 inch PureVision Plasma TV with Media Receiver, Swivel Stand and Speakers
Replaced by Pioneer PDP-5060HD
| Plasma Add-ons | Price |
| 10m (33ft) Extension Cable (PDA-H03CL) | 399.99 |
| 30m Extension System (PDA-H04) | 969.99 |
| Flat Wall Mount (PDWB-5003) | 249.99 |
| Tilt Wall Mount (PWM-503) | 359.99 |
| 199.99 | |
| 4 Year Warranty Extension | 329.99 |
| Phoenix Gold Cable Package with HDMI, Component | 99.99 |
The Pioneer PDP-5045HD plasma tv comes fully loaded. Its outboard media receiver is equipped with a Digital Cable Ready Tuner with a basic Passport EPG and an ATSC terrestrial HDTV tuner. With Pioneer’s new Advanced PureCinema with 3-3 pulldown, film-based material on DVD, videotape, and even regular TV will match the smooth, natural reproduction you’d see in a theater. And Pioneer’s exclusive PureDrive system keeps video signals entirely in a lossless digital domain, for greater signal control and far higher video quality.
- Brightness: 1000 cd/m2
- Wide WXGA Resolution (1280 x 768p)
-
Pioneer’s exclusive PureDrive keeps video signals entirely in a lossless digital domain, for greater signal control and far higher video quality.
-
With Pioneer’s new Advanced PureCinema™ with 3-3 pulldown, film-based material on DVD, videotape, and even regular TV will match the smooth, natural reproduction you’d see in a theater.
-
ACE II (Advanced Continuous Emission II) uses 10-bit processing to produce 1,024 gradation steps for each cell—creating a palette of over 1.07 billion colors and delivering reproduction accuracy up to 16 times greater than competitors’ panels.
-
Deep Encased Cell Structure: Each individual lamp is encased in its own “cell”, with walls on all sides so that light doesn’t bleed into neighboring cells. This energy-efficient design allows each lamp to deliver a more concentrated beam of light, for truer colors and brighter images.
- Black Stripe Coating: Pioneer places a patented black coating between each row of plasma cells, absorbing the light hitting the panel. This significantly reduces reflections coming back to your viewing position and nearly doubles the effective contrast.
Media Receiver Inputs (Rear View)
Click for Larger Image
| Features | ||
| Full High Definition Resolution | Wide WXGA Resolution (1280 x 768p) | |
| 16:9 Aspect Ratio | Yes | |
| Advanced PureCinema | With 3:3 Pull Down Converts All Signals to 768P First Plasma Capable of 72 Hz Display | |
| ACE II (Advanced Continuous Emission II) | True 10-Bit Gray Scale/1024 Levels Ability to Display Over 1 Billion Colors | |
| PureDrive | All Video Signals Processed in the 10-Bit Digital Realm Only One A/D Conversion - No Other Unnecessary D/A or A/D Conversions | |
| Pure Color Filter | More Accurate Color than Any CRT | |
| Ultra Bright | 1,000 Cd/m2 | |
| Deep Encased Cell Structure | Yes | |
| Adjustable Color Temperature | 3 Settings W/6500 | |
| Multi Picture Window | P-I-P Or Split Screen With Any Source (NTSC,DTV,HDTV,PC) | |
| HDMI Connections | Yes | |
| IEEE-1394 Digital Interface | Yes | |
| Component RGB w/BNC Connectors | Yes | |
| Digital Cable Ready (DCR) | Yes w/ Passport EPG | |
| Integrated ATSC Tuner | Yes | |
| 3 Dimensional Y/C Separation | Yes | |
| Includes | Plasma Panel, Media Receiver, Speakers, Swivel Stand, Smart Remot | |
| Optional Accessories | ||
| 10 Meter Digital Connection Cable | Yes | |
| Flush Mount Wall Bracket | PDWB-5003-PA | |
| Tilt Mount Wall Bracket | PWM-503-PA | |
| Inputs/Outputs | ||
| Antenna Input | VHF x 2 (75 ohms Unbalanced F connector) | |
| Antenna Output | VHF x 1 (75 ohms Unbalanced F connector) | |
| A/V Input (Front) | x 1 (RCA Pin) | |
| A/V Input (Rear) | x 3 (RCA Pin) | |
| S-Video Input (Front) | x 1 | |
| S-Video Input (Rear) | x 2 | |
| S-Video Output (Rear) | x 1 | |
| Component Input (Front) | x 1 | |
| Component Input (Rear) | x 1 | |
| D - Sub 15 Input (Front) | x 1 (For PC Input) | |
| Digital Audio Output (Rear) | x 1 (Optical) | |
| iLink | x 2 Terminals | |
| HDMI Input | x 2 (with HDCP) | |
| SR In/Output | Yes (Out = SR+) | |
| Dimensions (inch/lbs) | ||
| Display (Width-Height-Depth) | W 50" x H 29" x D 3-7/8" | |
| Display Weight | 83lbs. 13oz. | |
| Media Receiver (Width-Height-Depth) | W 16-9/16" x H 3-9/19" x D 11-11/16" | |
| Media Receiver Weight | 12 lbs. 9 oz. | |
| Warranty | ||
| Parts and Labor | 1 Year/Residential applications only/ Image persistence is not covered | |
