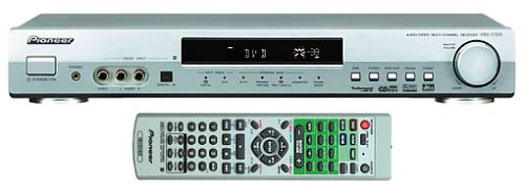

Pioneer VSXC100S
25 Watts x 5 Slim Design Digital A/V Receiver in Silver
OVERVIEW - Pioneer vsx-C100s Digital Stereo Receiver
Delivers a variety of listening
modes including Natural Mode which creates the best quality surround
sound. It supports a variety of surround modes from mono to 5.1
surround. The front optical digital audio input allows you to easily
plug in a game console or a portable DVD-Video player at a
moment’s notice. The multiple connection terminals allows you to
connect a variety of source units. To add easy installation features
such as automatic speaker configuration, room set up and visual
confirmation of active speakers. The different modes will be shown
on the display as well.
FEATURES -
Pioneer vsx-C100S 25 Watts x 5 Slim Design Digital A/V Receiver in Silver
Power Output Maximum Power (1
kHz, 10 % THD, RMS, Per Channel)
Maximum Power Stereo (DIN)2
x 30 W (8 Ohm, 1% THD)
Maximum Power Surround Front
2 x 30 W/ch (8 Ohm, 1% THD)
Maximum Power Surround
Centre 30 W (8 Ohm, 1% THD)
Maximum Power Rear
(Surround)2 x 30 W/ch (8 Ohm, 1% THD)
Surround Sound
Dolby Pro Logic
Dolby Pro Logic II
Dolby Digital
DTS Digital Surround
Surround Modes
MUSIC, MOVIE, Expanded,
Virtual Surround Back, Virtual Surround, TV Surround, Phones
Surround, GAME Mode
DSP Mode: 5-channel stereo
Audio Features
Accurate Imaging System
(each channel Equal Power)
D/A Converter: 96 kHz
/ 24-bit
Midnight Listening Mode
Audio Modes: Quit,
Bright, Natural
Super Bass
Conveniences
Preset Remote Control
FL Dimmer
Sleep Timer
Tuner Features
RDS (Radio Data System)
EON Link
30 Random Preset Stations
Terminals
4 Digital Input
1 Digital Coaxial input
Digital Optical input 3
(front 1)
Audio / Video Inputs:
1/4
1 Audio/Video Output: 1AV+2V
Preamp Output: (SW)
A/V Input on Front
SR (System Remote) Terminal
(In/Out)
Speaker A/B: A only
Amplifier Input
(Sensitivity/Impedance)
DVD, VCR, TV/SAT, FRONT:
200 mV / 47 kOhm
Amplifier Signal-to-Noise Ratio
(DIN; continuous rated power output/50 mW)
DVD, VCR, TV/SAT, FRONT:
88 / 64 dB
FM Tuner section: Usable
Sensitivity (Mono)
FM Tuner Sensitivity (DIN)
Mono (26 dB S/N, 75 Ohm) 1,1
µV
Stereo (46 dB S/N, 75 Ohm)50
µV
Tuner Signal-to-Noise Ratio
Mono (DIN): 62 dB
Stereo (DIN): 58 dB
Stereo Separation (1 kHz):
40 dB
Video section
Input
(Sensitivity/Impedance): 1 V p-p / 75 Ohm
Miscellaneous
Power Requirements: AC
220 - 230 V (UK230 V), 50 / 60 Hz
Power Consumption: 120 Watt
SPECIFICATIONS - Pioneer vsx-C100s
25 Watts x 5 Slim Design Digital A/V Receiver in Silver
Power
Output Wattage x 2-Channel:
50 Watts or less
per channel
Power
Output Wattage x 5, 6 or 7 Channel:
50 Watts or less
per Channel
Channels:
5.1 (Dolby Digital®,
DTS®)
Dolby
Digital and DTS Decoders Built-In:
Yes
Dolby
Pro Logic Decoding:
Yes
DAC
Speed/Bit Rate of Digital to Analog Audio Converter:
