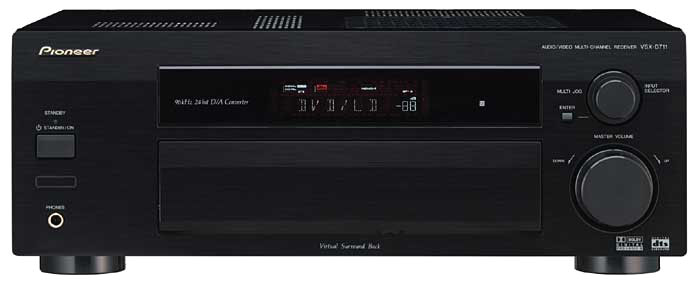

Pioneer VSXD711
100 Watt
x5 Channel Dolby Digital
AV Receiver
OVERVIEW - Pioneer vsx-D711 Dolby Digital Receiver
Get ready for intensely great
music: the VSX-D711 features Crystal digital signal processing and
96kHz/24-bit digital-to-analog conversion for exceptionally pure,
clean reproduction of your favorite music and movie soundtracks, and
its Dolby Digital and DTS 5.1 surround sound decoding, along with
Expanded 5.1 Surround, offer a true theater-like movie experience.
Pioneer vsx-D711
100 Watt x 5-Channel
Dolby Digital AV Receiver Features:
This Item
Features Component Video Switching
Power
Stereo: 100 Watts x 2
Surround: 100 Watts x 5
Digital Decoding and Processing
Crystal Digital Signal
Processing
DTS 5.1 Surround Decoding
Dolby Digital 5.1 Surround
Decoding
Dolby Pro-Logic II Music &
Movie Surround Decoding
96kHz/24-Bit Digital to Analog
Conversion
5 Advanced Surround Modes
Expanded 5.1
6-Channel Stereo
Music
Movie
Virtual Surround Back
Midnight Mode
Connectivity
DVD-Audio Ready
5.1 Channel Inputs
Pre-Amp Outputs (Subwoofer and
Center)
3 Digital In: (2 optical/1
coaxial)/1 Digital Out (optical)
Inputs - 4 Audio/4 Audio/Video
CD
AUX
CDR/TAPE
TUNER
DVD/LD
TV/SAT
VCR/DVR
VIDEO w/S (Front Panel)
Outputs - 1 Audio/1
Audio/Video/1 Video
CDR/TAPE Audio Output
VCR/DVR Audio/Video Output
Monitor Video Output
Component Video Switching (2
Inputs/1 Output)
TV/SAT Input
DVD/LD Input
Monitor Output
S-Video (4 Input/2 Output)
DVD/LD Input
TV/SAT Input
VCR/DVR Input
Video (Front Panel) Input
VCR/DVR Output
Monitor Output
Independent A/B Speaker
Switching
Heavy Duty Banana Speaker
Binding Posts
Convenience
Front Panel Quick Set-Up w/ Jog
Control
30 Preset AM/FM Digital Tuner
AM/FM Station Name Input
Auto Signal Select
Semi-Dot Matrix Display
Front Panel Door
Preprogrammed and Smart Remote
TV
VCR
DVD
Cable Box
Digital Satellite Tuner
Multi-CD Control
SPECIFICATIONS -
Pioneer vsx-D711 100 Watt x 5-Channel Dolby Digital AV
Receiver
Power
Output Wattage x 2 Channel:
100 Watts per
Channel
Power
Output Wattage x 5, 6 or 7 Channel:
100 Watts per
Channel
Channels:
5.1 (Dolby Digital®,
DTS®)
Dolby
Digital and DTS Decoders Built-In:
Yes
Dolby
Pro Logic Decoding:
Yes
DAC
Speed/Bit Rate of Digital to Analog Audio Converter:
