Pioneer VSX-D811S DTS 6.1 Receiver pioneer vsxd811s

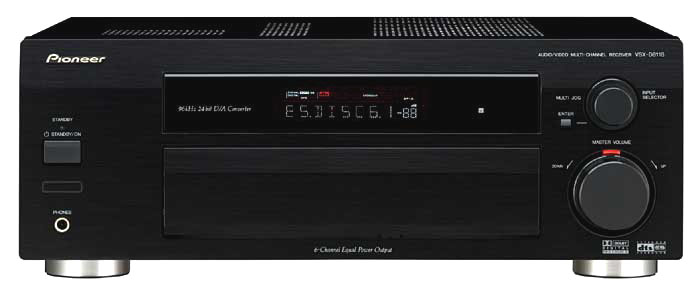

Pioneer VSX-D811S 100 Watt x 6-Channel Dolby Digital AV Receiver

NO LONGER AVAILABLE

Back to Home Theater Receiver Main

Pioneer VSXD811S 100 Watt
x6 Channel Dolby Digital
AV Receiver

OVERVIEW - Pioneer vsx-D811-s Dolby Digital Receiver

This new A/V receiver offers extremely clean, new, and modern cosmetics, high power and excellent sound performance. The redesigned look and feel of the receiver includes a sleek front-end design, and an easier to read blue/white display. Also offers DTS-ES discrete decoding and Pioneer's exclusive 6.1 expanded theater surround processing and 7.1 channel inputs.

Pioneer vsx-D811S 100 Watt x 6-Channel
Dolby Digital AV Receiver Features:

This Item Features Component Video Switching

Power

Stereo: 100 Watts x 2
Surround: 100 Watts x 6

Digital Decoding and Processing

Crystal Digital Signal Processing
DTS-ES Discrete 6.1 Decoding
DTS NEO 6: Music & Cinema Surround Decoding
Dolby Digital EX 6.1 Surround Decoding
Pro-Logic II Music & Movie Surround Decoding
96kHz/24-Bit Digital to Analog Conversion
5 Advanced Surround Modes
- Expanded 6.1
- 6-Channel Stereo
- Music
- Movie
- Virtual Surround Back
Midnight Mode

Connectivity

DVD-Audio Ready
7.1 Channel Inputs
Pre-Amp Output ALL Channels
5 Digital Inputs (3 optical/2 coaxial back, 1 optical front) / 1 Digital Out (optical)
Inputs - 4 Audio/4 Audio/Video
- CD
- AUX
- CDR/TAPE/MD
- TUNER
- DVD/LD
- TV/SAT
- VCR/DVR
- VIDEO (Front Panel)
Outputs - 1 Audio/1 Audio Video/1 Video
- CDR/TAPE Audio Output
- VCR/DVR Audio/Video Output
- Monitor Video Output
Component Video Switching (2 Inputs/1 Output)
- TV/SAT Input
- DVD/LD Input
- Monitor Output
S-Video (4 Inputs/2 Outputs)
- DVD/LD Input
- TV/SAT Input
- VCR/DVR Input
- Video (Front Panel) Input
- VCR/DVR Output
- Monitor Output
Independent A/B Speaker Switching
Heavy Duty Banana Speaker Binding Posts
Dual Surround Back Speaker Terminals for 7.1 Speaker Set-up

Convenience

Front Panel Quick Set-Up w/ Jog Control
Auto Signal Select
30 Preset AM/FM Digital Tuner
AM/FM Station Name Input
Semi-Dot Matrix Display
Front Panel Door
Preprogrammed and Smart Remote
- TV
- VCR
- DVD
- Cable Box
- Digital Satellite Tuner
- Multi-CD Control

SPECIFICATIONS - Pioneer vsx-D811S 100 Watt x 6-Channel Dolby Digital AV Receiver

Power Output Wattage x 2-Channel:	100 Watts per Channel
Power Output Wattage x 5, 6 or 7 Channel:	100 Watts per Channel
Channels:	6.1 (DTS-ES Discrete)
Upgradeable Channel Inputs:	7.1
Dolby Digital and DTS Decoders Built-In:	Yes
Dolby Pro Logic Decoding:	Yes
DAC Speed/Bit Rate of Digital to Analog Audio Converter:	96kHz/24-Bit
Bass Boost:	Information Unavailable
Preset Sound Fields:	Yes
Remote Control Type:	Learning, Illuminated
Non-Categorized Outputs:	A/B Main Speaker Terminals
Front A/V with S-Video Inputs:	Yes
Front A/V Inputs:	Yes
Number of Video Inputs:	1
Number of Audio Inputs:	4
Number of A/V Inputs:	4
Number of Coaxial Digital Inputs:	2
Number of Optical Digital Inputs:	3
Number of S-Video Inputs:	2
Number of Audio Outputs:	1
Number of Video Outputs:	1
Number of A/V Outputs:	1
Number of Optical Digital Outputs:	1
Number of S-Video Outputs:	4
Sub-Amp (Pre-Amp Output for Subwoofer):	Yes

Manufacturer Homepage: www.pioneerelectronics.com
