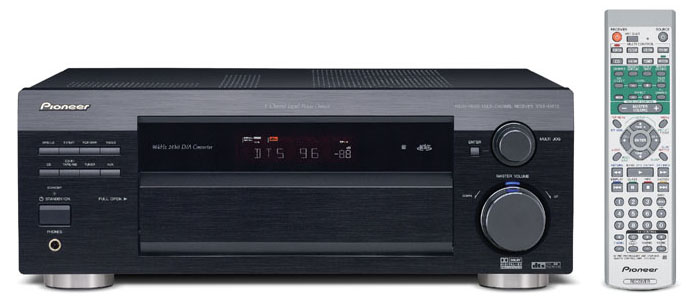

Want a spectacular surround sound experience? The VSX-D812K delivers, with 6.1-channel Dolby Digital EX and DTS-ES Discrete surround sound decoding, plus the new DTS 96/24 decoder for playback of high resolution audio with video. And, a double precision 48-Bit Motorola digital signal processing DSP coupled with 96kHz/24-bit digital-to-analog conversion provide extraordinarily pure DVD-Audio quality audio reproduction from any music or movie source. The VSX-D812K delivers 100 watts x 2 (stereo) and a full 100 watts x 6 (surround), with pre-amp output for all channels. To complete the big picture, you get Dual Surround Back terminals for 7.1 speaker set-up and 7.1-channel inputs, plus component video switching (2 inputs/1 output) and 5 digital inputs/1 digital output (optical). A pre-programmed Smart Remote is provided.

This Item Features Component Video Switching

FEATURES - Pioneer vsx-D812k 100 Watt Dolby Digital EX 6.1 AV Receiver

Power

• Manual MCACC w/Auto Subwoofer detection
• Double Precision 48-Bit Motorola DSP
• DTS 96/24 Decoding
• DTS-ES Discrete 6.1 Decoding
• DTS NEO 6: Music & Cinema Surround Decoding
• Dolby Digital EX 6.1 Surround Decoding
• Pro-Logic II Music & Movie Surround Decoding
• 96kHz/24-Bit Digital to Analog Conversion
• 7 Advanced Surround Modes
  • 6-Channel Stereo
  • Music
  • Movie
  • TV
  • Sports
  • Game
  • Headphone
• Expanded 5-D Theater
• Midnight Mode
• Virtual Surround Back

• DVD-Audio Ready
• 7.1 Channel Inputs
• Pre-Amp Output ALL Channels 6.1
• 4 Digital Inputs (2 optical/2 coaxial) / 1 Digital Out (optical)
• Inputs - 4 Audio/4 Audio/Video
  • CD
  • AUX
  • CDR/TAPE/MD
  • TUNER
  • DVD/LD
  • TV/SAT
  • VCR/DVR
  • VIDEO (Front Panel)
• Outputs - 1 Audio/1 Audio Video/1 Video
  • CDR/TAPE Audio Output
  • VCR/DVR Audio/Video Output
  • Monitor Video Output
• Component Video Switching (2 Inputs/1 Output Assignable)
  • TV/SAT Input
  • DVD/LD Input
• Monitor Output S-Video (4 Inputs/2 Outputs)
  • DVD/LD Input
  • TV/SAT Input
  • VCR/DVR Input
  • Video (Front Panel) Input
  • VCR/DVR Output
  • Monitor Output
• Independent A/B Speaker Switching
• Heavy Duty Banana Speaker Binding Posts
• Dual Surround Back Speaker Terminals for 7.1 Speaker Set-up

• Manual MCACC Set-Up
• Advanced Quick Setup
• Front Panel Quick Set-Up w/ Jog Control
• Auto Signal Select
• 30 Preset AM/FM Digital Tuner
• AM/FM Station Name Input
• Semi-Dot Matrix Display
• Front Panel Door
• Preprogrammed and Smart Remote
  • TV
  • VCR
  • DVD
  • Cable Box
  • Digital Satellite Tuner
  • Multi-CD Control
