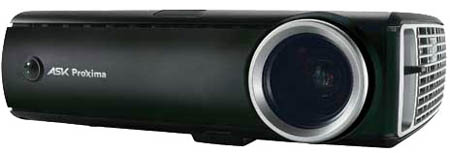

Ask Proxima C315 DLP Video Projector
Ask Proxima C315 MSRP: $1,399
Overview
The ASK Proxima C315 is colorful, vividly colorful. Powered by the new BrilliantColor™ chipsets from DLP® the C315 has flawless color accuracy with the same 24-hour reliability and filter-free design DLP customers have come to love. Hosting 3000 lumens, and a 1400:1 contrast ratio this projector is built for large meeting rooms and many pairs of sharp eyes. Onboard digital, analog, audio and RS-232 connectivity enable the C315 to project advanced, high-resolution XGA content, up as high as UXGA (1600 x 1200) without a hitch.
Color Accuracy:
DLP® chipsets with BrilliantColor™ technology enable ASK Proxima projectors to use far more available space on the color wheel, effectively increasing luminance as well as color depth. Fine-tuning of this process has yielded impeccable true-to-source image reproduction, breathtaking contrast accuracy and ultimate clarity.
High Resolution Display:
The ASK Proxima C250, C250W & C315 are all compatible up to UXGA (1600x1200) resolution and will automatically adjust image size to fit your computer output. This level of detail makes for truly impressive large-format viewing where details can speak for themselves in document sharing, rendering presentations and video playback.
Projector Reliability:
It’s well known that ASK Proxima projectors with DLP® technology outlive most other products available. Thanks to filter-free engineering there aren’t any parts to clean or replace, nor annoying warning messages to disable. With a 3500 hour lamp delivered in the C250, C250W & C315 it will be many years until your projector needs any kind of service.
Features
- Native 1024 x 768 XGA Resolution
- 3000 ANSI Lumens Brightness
- 1400:1 Contrast Ratio
- VGA (D-sub 15) PC input
- Filter-free design
- Onboard digital, analog, audio and RS-232 connectivity
- Compatible up to UXGA (1600x1200)
- 3500 hour lamp life
Specifications
General |
Native Resolution |
XGA 1024 x 768 |
Display Technology |
DLP® by Texas Instruments™: 0.7" DDP w/BrilliantColor™ |
Computer Input Sources |
M1-DA, VGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232 |
Computer Compatibility |
VGA, SVGA, XGA, WXGA, SXGA, WSXGA, SXGA+, UXGA |
Video Compatibility |
NTSC/NTSC4.43, PAL,PAL-M, SECAM, SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i) |
Contrast Ratio |
1400:1 |
Standard Projection Lens |
F number: F2.3~F2.7, Focal length: 23.6~28.25mm |
Zoom Ratio |
1.2:1 (manual zoom) |
Throw Ratio |
1.83 - 2.27 (Throw Distance/Image Width) |
Projection Distance |
4.9-32.8ft (1.5-10m) |
Image Offset ratio (%) |
115% |
Image size (diagonal) |
30~300" (0.7~8.0m) |
Projection Methods |
Front, Ceiling-front, Ceiling-rear |
Size |
Dimensions: |
8" x 15 "x 20" (20.32 x 38.1 x 50.8cm) HxWxL) |
Shipping Weight: |
10 lbs (4.54kg) |
Input |
Computer Input Sources |
M1-DA, VGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232 |
Digital Keystone Correction (Vertical) |
+30/-25 degrees |
Projector Control |
RS-232 |
Output |
Output Sources |
Variable Audio (3.5mm Stereo), Monitor Out (VESA) |
Audio |
3.0-Watt |
Brightness |
3000 max ANSI lumens |
Number of Colors |
16.7 million |
Projector Interface Languages |
English, German, French, Italian, Spanish, Norwegian, Portuguese, Simplified Chinese |
Lamp |
200W SHP / 2000 hours* |
Other |
Synch Range |
15.6-85kHz (Hor) , 48-58Hz (Ver) |
Power Consumption |
272 Watts (Normal), 205 Watts (Eco mode) |
Power Supply |
100V - 240V at 50/60 Hz |
Operating Temperature |
10°- 35°C at sea level (0 to 7,500'/2,286meters); 50° - 95° F |
Audible Noise |
35dB |
Approvals |
UL and c-UL (US/Canada), FCC-A (US/Canada), CE (CE member countries), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), C-Tick (Australia) |
Lamp Warranty |
6 months |
Product Warranty |
2 years
Filter Free Design and 24 hour operation compatible |
Accessories Warranty |
90 days |
Ships Standard With |
AC power cord (1.8m), M1-HD15(VGA) cable (1.8m), Remote controller w / battery, Multi-language user's guide CD, Warranty card, Safety card, Lens cap w / attachment cord |
|
