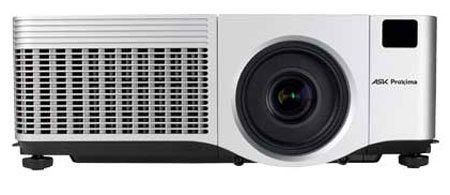

Ask Proxima C500 DLP Video Projector
Ask Proxima C500 MSRP: ***
Overview
The ASK Proxima C500 is a premium digital projector that offers world class power and integration flexibility.
The C500 projector integrates 5000 Max lumens with optional lenses and a full featured connectivity panel. This level of performance is ideal for large conference halls, auditoriums and worship centers which require large, brilliant images with superb clarity.
Performance
The C500 delivers 5000 lumens with a precision optical system that includes len shift and a full portfolio of optional lenses. Equipped with HDMI 1.3 and BNC inputs the C500 projector will connect to the latest PCs and supports 1080p video and up to UXGA resolution (1600 x 1200), providing massive images with fine detail.
Integration
The C500 features interchangeable lenses to easily fit ultra short-throw rear projection or long-throw installation needs. Horizontal and vertical lens shift make the C500 a flexible projector to integrate. HDMI 1.3 and 5 BNC inputs enable compatibility with all the leading switching and signal routing hardware.
Four "assignable” audio sources allow mix and match pairing of audio with data or video sources. Equipped with RS232 & embedded network control the C500 projector can seamlessly integrate into any infrastructure. Additional features include wireless-compatible architecture for connectivity to InFocus LiteShow II wireless adaptor, (2) x 4.0 watt stereo speakers and a full-featured remote with laser and wired control functionality.
Longevity
The C500 projector is protected under factory warranty for 3 years from date of purchase. The projector lamp has a 6-month warranty from defect or premature failure.
*not available in the Americas
Features
- Native 1280 x 800 WXGA Resolution
- 5000 ANSI Lumens Brightness
- 1000:1 Contrast Ratio
- DLP Technology which supports 1080p
- 16:10 native aspect ratio
- HDMI 1.3 and RS232 connections
- Interchangeable lenses
- Wireless-compatible
- Weighs 15.7 lbs
Specifications
| General |
| Aspect Ratio |
4:3 Default, 16:9 |
| Contrast Ratio |
1000:1 |
| Data Compatibility |
VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA (1400x1050), UXGA (1600x1200) |
| Display |
0.99" (.025m) polysilicon TFT with micro lens array |
| Lamp |
Normal: 275W / 2000 Hours
Eco Mode: 220W / 3000 Hours |
| Video Compatibility |
NTSC, NTSC 4.43, PAL, PAL-M,N, PAL60 • SDTV: 525i (480i), 525p (480p), 625i (575i) • HDTV: 750p (720p @ 60Hz), 1125i (1080i @50/60Hz, 1035i @ 60Hz) |
| Size |
| Dimensions |
Height: 5.11 in (12.98 cm)
Length: 12.4 in (31.5 cm)
Width: 16.53 in (41.99 cm) |
| Weight |
15.7lbs / 7.12kg |
| Input |
| Control |
Projector Keypad, Remote, USB, RS-232, 2.5mm Wired Remote, RJ45 |
| Digital Keystone Correction |
Vertical: +/- 40 deg.
Horizontal: +/- 20 deg. |
| Output |
| Audio |
4W stereo speakers (2) |
| Brightness |
5000 ANSI lumens (Normal)
4000 ANSI lumens (Eco Mode) |
| Colour Palette |
16.7 million |
| Other |
| H-Sync Range |
15 ~ 91 kHz |
| V-Sync Range |
50 ~ 120 Hz |
| Audible Noise |
Normal: 32 dBA typical |
| Ships Standard with |
Regional power cord, vga cable, Navigator-2 presentation remote, Carry Case, Composite A/V cable |
| Warranty |
Three-year standard warranty on parts and labour |
|
