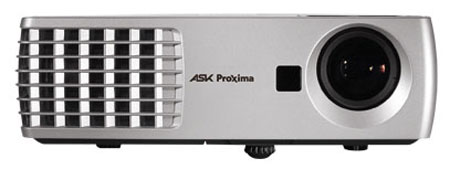

Ask Proxima M22 DLP Portable Video Projector
Ask Proxima M22 MSRP: ***
Overview
The ASK Proxima M20-M22 projector series is designed for teams that want it all - mobility, performance, and ease-of-use. With DisplayLink™ USB connectivity the M20-M22 series takes seconds to set up & project and uses a much smaller cable. Utilizing filter-free, zero maintenance DLP® with BrilliantColor™ technology, the M20-M22 brings superior visual performance to any meeting space.
Ease of Use
At a mere 2.75lb and 2400cc, the lightweight & compact nature of the M20-M22 series makes it easy to move between floors and easy to travel with. With a much smaller footprint than a piece of notebook paper, every tabletop has room for this projector.
Performance
The M20-M22 series provides vivid colors and ample brightness. DLP® with BrilliantColor™ technology offers true-to-life color reproduction with up to 2200 lumens and an 1800:1 contrast ratio; a trifecta other mobile products cannot match. Leveraging high speed processing the M20-M22 series accepts WUXGA & 1080p high resolution content. Additionally, the M20-M22 series offers XGA and WXGA native resolutions to perfectly display from 4:3 or 16:10 widescreen computers.
Peace of Mind
Plug-in, power-on, project. The M20-M22 series is the first projector to utilize DisplayLink™ technology to eliminate the need to resize computer screens or toggle function keys when setting up an M20-M22 series projector.
*not available in the Americas
Features
- 2200 ANSI Lumens Brightness
- Native 1280x800 WXGA Resolution
- 1800:1 Contrast Ratio
- DisplayLink™ USB connectivity
- Filter-free design
- Weighs only 2.75 lbs / 1.25kg
Specifications
General |
Aspect Ratio: |
16:10 Default, 4:3, 16:9 |
Contrast Ratio: |
1800:1 |
Data Compatibility: |
WSXGA+ WSXGA,, WXGA, SXGA, XGA, SVGA, VGA, Macintosh® |
Display: |
Texas Instruments DLP® Technology .55" LVDS DDP2230/w BrilliantColor™ |
Lamp: |
165W Normal/ 2000 hours |
Video Compatibility: |
NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and SDTV (480i/576i), EDTV (480p/576p), HDTV (720p/1080i/1080p) |
Size |
Dimensions: |
2.5" x 8.3" x 7.2" / 6.3cm x 21cm x 18.2cm |
Weight: |
2.75lbs / 1.25kg |
Input |
Control: |
Keypad, Remote, USB |
Digital Keystone Correction: |
Vertical +/- 30 deg. |
Output |
Audio: |
1W stereo speaker |
Brightness: |
Normal: 2200 max ANSI lumens
Eco Mode: 1650 max ANSI lumens |
Colour Palette: |
16.7 million |
Other |
H-Sync Range: |
31 ~ 85 kHz |
Audible Noise: |
Normal: 35 dBA typical
Eco mode: 30 dBA typical |
Ships Standard with: |
Regional power cord, vga cable, cary case, usb cable, Navigator-2 presentation remote |
Warranty: |
Three-year standard warranty on parts and labour |
|
