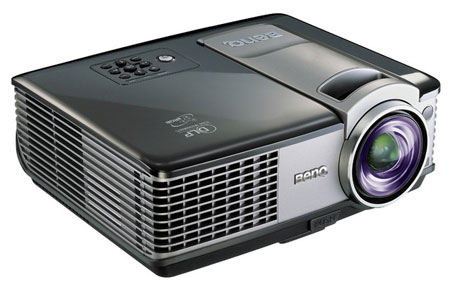

BenQ MP522 ST DLP Video Projector
BenQ MP522ST MSRP: $799
Overview
The BenQ MP522 ST projector is the total small space solution to your everyday life – in business and education.
All it takes is half a meter of projection distance for the MP522 ST to help you overcome spatial constraints and eliminate disruptions from shadow effects as well as possible health risks caused by direct projector lights.
Now, you can enjoy the flexibility of presenting in intimate settings, such as small meeting rooms, classrooms. Even your very own partition can be a perfect meeting place for all your presentations!
The BenQ Short-Throw Technology
Thanks to the special aspherical lens adopted by BenQ, the MP short-throw projectors only require half the projection distance of traditional projectors!
With its short-throw ratio lens precisely calculated and positioned, the MP projectors are able to deliver large-screen projection in tight spaces without jeopardizing picture quality. This is something other brands cannot do for you.
Features
- Native 1024 x 768 XGA Resolution
- 2000 ANSI Lumens Brightness
- 1000:1 Contrast Ratio
- Weighs 4.9 lbs
- Whisper quiet at 26dB
- Closed-captioning support
- Very short-throw range
- Wall color correction
- Lamp life up to 4000 hours
- One built-in 5W speaker
- Multi-functional connections
Specifications
| Native Resolution |
XGA (1024 x 768) |
| Projection System |
DLP™ technology by Texas Instruments® |
| Brightness |
2000 ANSI Lumens |
| Lamp |
185W, 3000/4000 hours(Normal/Eco) |
| Contrast Ratio |
1000:1 (Full on/Full off) |
| Weight |
4.9 lbs (2.2 kg) |
| Noise Level |
31/26 dB (Normal/Economic mode) |
| Resolution Support |
VGA (640 x 480) to SXGA (1280 x 1024) |
| Dimensions |
10 x 3.5 x 8.4 inches (255 x 90 x 214 mm) |
| Image Size |
27.5” to 300” |
| Throw Ratio |
0.9:1 |
| Throw Distance |
Min:0.5m;Max:5.5m |
| Zoom Ratio |
Fixed |
| Lens |
F= 2.5 f=10mm |
| Display Color |
Full 16.7 million color palette |
| Aspect Ratio |
4:3 Native, 16:9 Selectable |
| Horizontal Frequency |
31 ~ 82 KHz |
| Vertical Scan Rate |
48 - 85 Hz |
| Projection Position |
Front/Rear, Table/Ceiling |
| Input Terminals |
PC:
Analog RGB: D-sub 15 pin x 1
A/V:
Component Video: D-sub 15 pin (Shared with Analog RGB connector)
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audio: Stereo Mini Jack x 1 |
| Output Terminals |
PC : D-Sub 15 pin x 1
Speaker 5W x 1 |
| Video Compatibility |
NTSC, PAL, SECAM |
| Auto Switching Power Supply |
100 to 240 VAC, 50 to 60 Hz |
| Power Consumption |
Max 280W, Standby Max 5W |
| On-Screen Display Language |
English/ French/ German/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese / Thai/ Polish |
| Preset Modes/ Application Modes |
PC Input:
Dynamic Mode
Presentation Mode
sRGB
Cinema Mode
User 1 Mode
User 2 Mode
A/V Input:
Dynamic Mode
Standard Mode
Cinema Mode
User 1 Mode
User 2 Mode
|
| Functions |
BrilliantColor™
3D Color Management
Wall color correction
Quick Auto Search
Time Controller
Presentation Timer
Closed Captioning(CC1~CC4)
Standby D-Sub Output
Baud Rate Change
Resolution Reminder
Panel Key Lock
"Q?" Hot Key for FAQ
Power On/Off Ring Tone
11 sets of Picture Mode
Auto Phase Adjustment
Blank @ ECO mode
Quick Cooling
Auto Off
Security Password
High Altitude Mode |
| Product Color |
Black & Silver |
| Accessories (Standard) |
Quick start guide
Manual CD
Remote control w/battery
VGA cable
PWR cord
|
| Accessories (Optional) |
Ceiling Mounting Kit
Presentation Plus
Spare Lamp Kit
Soft carry case |
|
