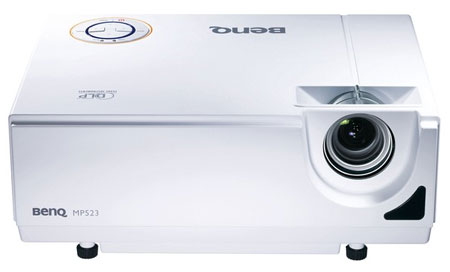

BenQ MP523 DLP Video Projector
BenQ MP523 MSRP: ***
Overview
The elegant design of the MP523, with its snowy white housing, strikes a perfect balance between classic good looks and a high-tech visual sense. Its clean lines and spare ornamentation let it blend in artfully with any environment, whether in your home or out.
Features
- Native 1024 x 768 Resolution
- 2000 ANSI Lumens Brightness
- 2000:1 Contrast Ratio
- DLP and BrlliantColor technology
- Weighs 5.3 lbs
- Wall color correction
- Auto source - automatically scan for attached video sources
- Auto off - turns off automatically when no input is detected for a period of time
Specifications
| Native Resolution |
XGA (1024 x 768) |
| Projection System |
DLP™ technology by Texas Instruments® |
| Brightness |
2000 ANSI Lumens |
| Lamp |
180W, 3500/4000 hours (Normal/Economic mode) |
| Contrast Ratio |
2000:1 (Full on/Full off) |
| Weight |
2.4 kg (5.3 lbs) |
| Noise Level |
33/30 dB (Normal/Economic mode) |
| Resolution Support |
VGA(640 x 480) to SXGA(1280 x 1024) |
| Dimensions |
273 x 108 x 215 mm (10.7 x 4.25 x 8.46 inches) |
| Image Size |
30” to 300” |
| Throw Ratio |
1.97 ~ 2.16 |
| Zoom Ratio |
Manual zoom: 1.10:1 |
| Lens |
F=2.51 to 2.69, f=21.95 ~ 24.18 mm |
| Display Color |
Full 16.7 million color palette |
| Aspect Ratio |
4:3 Native, 16:9 Selectable |
| Horizontal Frequency |
31 ~ 79 KHz |
| Vertical Scan Rate |
50 ~ 85Hz |
| Projection Position |
Front/Rear, Table/Ceiling |
| Input Terminals |
PC:
Analog RGB: D-sub 15 pin x 1
Component Video: D-sub 15 pin
(Shared with Analog RGB connector)
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audio:
Stereo mini jack x 1P |
| Output Terminals |
PC :
D-sub (15 pin) X 1
Audio :
Stereo mini jack x 1
2 Watt Speaker x 1 |
| Video Compatibility |
NTSC/PAL/SECAM |
| Auto Switching Power Supply |
90–240V AC 50–60 Hz |
| Power Consumption |
240W |
| On-Screen Display Language |
English/ French/ German/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese / Thai/ Polish |
| Preset Modes/ Application Modes |
PC Input:
PC Mode
Movie Mode
sRGB Mode
User Mode
White Board Mode
Black Board Mode
Green Board Mode
A/V Input:
PC Mode
Movie Mode
sRGB Mode
User Mode |
| Functions |
Brilliant Color
Standby D-Sub Output
Auto Source (Auto Search)
Resolution Reminder
11 Sets of Picture Mode
Power Saving (Auto off)
Wall Color Correction
Blank
Security Password
High Altitude Mode
Freeze
Lamp Care |
| Accessories (Standard) |
Quick start guide
Manual CD
Power Cord
Remote Control
Batteries for R/C
VGA Cable |
| Accessories (Optional) |
Ceiling Mounting Kit
Presentation Plus
Spare Lamp Kit
Soft Carry Case |
|
