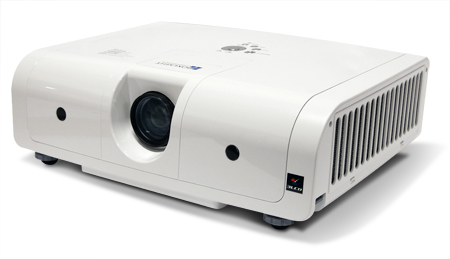

Boxlight MP65E LCD Video Projector

Boxlight MP65E MSRP: $3,995

Overview

AS TOUGH AS THE ELEMENTS.  The MP65e projector is as durable as it is versatile, and is especially great in smoky, dusty environments, either indoors or outdoors. An internal automatic fan sensor manages airflow and reminds users when the filter needs to be changed. Replacement lamps and filters are easily swapped in via a side panel, eliminating the need to dismount the unit for maintenance.

With two brightness levels ranging from 3800 to 4500 lumens, the MP65e projector is suitable for small and large spaces. Its auto brightness feature detects ambient light, adjusting the lamps to suit the setting and extending lamp life.

A powerful network-ready RJ-45 interface means that the MP65e can be managed from remote locations, which increases efficiency and maximizes control capabilities.

Features

• Native 1600 x 1200 UXGA Resolution
• Brightness 4500 Lumens
• Contrast Ratio of 500:1
• Native 4:3 aspect ratio
• Weighs 16.5 lbs
• 3LCD technology
• HDTV compatible
• Internal automatic fan sensor
• Auto brightness feature
• Network-ready RJ-45 interface

Projector Review

Specifications

• BRIGHTNESS 4500 Normal 3800 Eco
• RESOLUTION
  1024x768 (XGA) True
  1280X1024 (SXGA) Compressed
• DISPLAY TYPE 0.79” 3-LCD with MLA
• CONTRAST RATIO 500:1
• LAMP 275w NSH
• LAMP LIFE
  1500 Lamp Hours (Normal)
  2500 Lamp Hours (Eco)
• DIAGONAL IMAGE SIZE 40” - 300” Inches
• ASPECT RATIO 4:3 16:9 Compatible
• PROJECTION LENS Manual Focus/Zoom
• ZOOM RATIO 1.2:1 (Standard Lens)
• THROW DISTANCE 4’-30’ Feet 1.2-9.1 Meters
• THROW RATIO 1.47 ~ 1.78 (Standard)
• INPUTS DVI-I VGA Audio Mini Jack x 2 RCA Audio (R/L) Component Composite Video S-Video
• COMPATIBILITY VGA, SVGA, XGA, SXGA, MAC
• PROJECTOR CONTROLS Mini Din 8-Pin RS232 (9-Pin) USB mouse control RJ 45
• KEYSTONE +/- 30 Degrees
• VIDEO COMPATIBILITY NTSC, NTSC4.43 , PAL, PAL-M, PAL-N, SECAM, PAL60
• EDTV / SDTV / HDTV 480i/p, 525i/p, 576i/p, 625i/ p, 720p, 1080i
• AUDIO 1 x 8w
• DIMENSIONS (WxHxD) 14.2” x 5.7” x 18.9”
• WEIGHT 16.5 lbs (7.5Kg)
• DECIBEL RATING 33 dB Standard 30 dB Eco Mode
• WARRANTY 3 year parts & labor/ 90 day lamp
• H-SCAN RATE 15—107 kHz
• V-SCAN RATE 43—120 kHz
• POWER SUPPLY AC 100~240V, 50/60 Hz
• POWER CONSUMPTION 430w (Typical)
