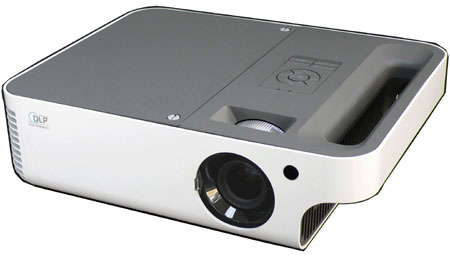

Boxlight Phoenix S25 Portable Video Projector

Boxlight Phoenix S25 MSRP: $899

Overview

THE SVGA BRIGHT LIGHT LEADER. At up to 3000 lumens strong, the PhoenixS25 is the single brightest SVGA projector currently on the market. Presenters looking for a cost-effective projector that offers great color reproduction and unmatched SVGA brightness turn to this reliable unit time and time again. It is especially effective for corporate and school applications.

With a streamlined input panel, connectivity is fast and simple. Three lamp modes and fan speed options put the power and the light in the hands of the user. Lamp replacement is easy given the unit’s top-changing design, which allows direct access even when the machine is installed via a ceiling mount. The custom splash screen lets you create a distinct image to kick off your presentation with style.

Features

• Native 800 x 600 SVGA Resolution
• Brightness 3000 Lumens
• Contrast Ratio of 2000:1
• Weighs 3.3 kg / 7.3 lbs
• Three lamp modes and fan speed options

Projector Review

Specifications

• BRIGHTNESS
  3000 Lumens (Boost)
  2600 Lumens (Standard)
  2400 Lumens ( Eco)
• RESOLUTION
  800 x 600 SVGA True
  1280 x 1024 SXGA Compressed
• DISPLAY TYPE 0.55" x 1, 12º DDR DLP
• CONTRAST RATIO 2000 :1
• LAMP 200 watt OSRAM VIP
• LAMP LIFE 2000 Boost 3000 Standard 4000 Eco
• DIAGONAL IMAGE SIZE 22” - 260” Inches
• ASPECT RATIO 4:3 Compatible 16:9
• PROJECTION LENS Manual Zoom / Focus
• THROW DISTANCE 3.2 ’- 32’ Feet 1 - 10 Meters
• THROW RATIO 1.89 ~ 2.18 ( x screen width)
• ZOOM RATIO 1.15:1
• INPUTS VGA-in / Component Composite Audio (R/L) RCA S-Video Audio (Mini jack)
• OUTPUTS Audio (Mini jack) VGA (Out)
• COMPATIBILITY VGA,SVGA,XGA,SXGA, Mac
• PROJECTOR CONTROLS USB
• KEYSTONE +/- 15º
• EDTV / SDTV / HDTV 480i/p / 720p / 1080i
• DIMENSIONS (WxDxH) 12” x 9.6” x 3.4” Inches
• WEIGHT 7.3 Lbs / 3.3 kg
• VIDEO COMPATIBILITY N TSC / NTSC 4.43, PAL B/G/H/I/M/N 60 / SECAM
• DECIBEL RATING 3 6dB (boost) / 33dB (standard) / 31dB (eco)
• AUDIO 1 x 3w Mono Speaker
• WARRANTY 3 year parts & labor / 90 day lamp
• FCC CERTIFICATION F CC-B,UL,C-UL,TUV.CB,CCC
• H-REFRESH RATE Horizontal—15—90 kHz
• V-REFRESH RATE Vertical—50—85 kHz
• POWER SUPPLY AC input 110 ~ 240 Voltage (auto ranging)
• POWER CONSUMPTION 290W (boost) 255W (standard) 230W (eco)
