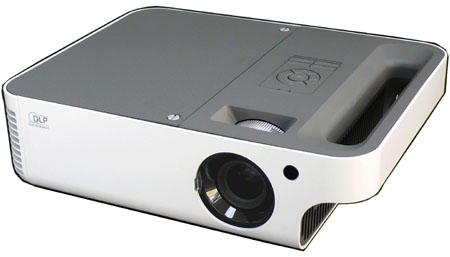

Boxlight Phoenix X30 Portable Video Projector

Boxlight Phoenix X30 MSRP: $1,999

Overview

A POWERFUL FAVORITE. Delivering up to 3500 lumens of nice, bright light and sharp XGA resolution, it’s no wonder the PhoenixX30 is one of our best selling projectors. Its consistent performance and easy-to-use functionality make it ideal for a wide variety of applications and audiences.

Driven by a powerful 12-volt trigger, the Phoenix X30 projector features AMXÒ device recognition, which gives presenters expanded, on-the-spot control, and the screen from their remote devices.

Three distinct lamp modes allow you to modify your light to suit your setting and conserve lamp energy, while fan speed options help moderate the unit’s temperature. Its top-changing design lets you replace lamps without removing the projector from a ceiling mount, and a password security system guards against unauthorized use.

Features

• True XGA 1024 x 768 Resolution
• Brightness 3500 Lumens
• Contrast Ratio of 2100:1
• Weighs 3.3 kg / 7.3 lbs
• Aspect Ratio 4:3 Compatible 16:9
• Three lamp modes and fan speed options
• AMXO device recognition gives presenters expanded, on-the-spot control of the projector and the screen from their remote devices
• Password security system guards against unauthorized use
• Easily replaceable lamps

Specifications

• BRIGHTNESS
  3500 Lumens (Boost)
  3000 Lumens (Standard)
  2500 Lumens (Eco)
• RESOLUTION
  1024 x 768 True XGA
  1280 x 1024 SXGA Compressed
• DISPLAY TYPE 0.7" x 1, 12º DLP
• CONTRAST RATIO 2100 :1
• LAMP 200 watt OSRAM VIP
• LAMP LIFE 2000 Boost 3000 Standard 4000 Eco
• ASPECT RATIO 4:3 Compatible 16:9
• DIAGONAL IMAGE SIZE 23.4” - 273.4” Inches
• PROJECTION LENS Manual Zoom / Focus
• THROW DISTANCE 3’ - 32’ Feet 1 - 10 Meters
• THROW RATIO 1.8 ~ 2.1 (x screen width)
• ZOOM RATIO 1.15:1
• INPUTS DVI-D / HDCP VGA-in / Component S-Video Composite Video RCA audio (R/L) Audio (Mini jack)
• OUTPUTS Audio (Mini jack) VGA (Out)
• COMPATIBILITY VGA,SVGA,XGA,SXGA, Mac
• EDTV / SDTV / HDTV 480i/p / 720p / 1080i
• PROJECTOR CONTROLS RS232 USB 12V Trigger
• KEYSTONE +/- 15º Vertical
• DIMENSIONS (WxDxH) 12” x 9.6” x 3.4” Inches
• WEIGHT 7.3 Lbs / 3.3 Kg
• VIDEO COMPATIBILITY N TSC / NTSC 4.43 / PAL B/G/H/I/M/N 60 / SECAM
• AUDIO 1 x 3w Mono Speaker
• DECIBEL RATING 3 6dB (boost) / 33dB (standard) / 31dB (eco)
• WARRANTY 3 year parts & labor / 90 day lamp
• FCC CERTIFICATION F CC-B,UL,C-UL,TUV, CB, CE, CCC
• H-REFRESH RATE Horizontal—15-90 kHz
• V-REFRESH RATE Vertical—50-85 kHz
• POWER SUPPLY AC input 110 ~ 240 Voltage (auto ranging)
• POWER CONSUMPTION 290W (boost) 255W (standard) 230W (eco)
