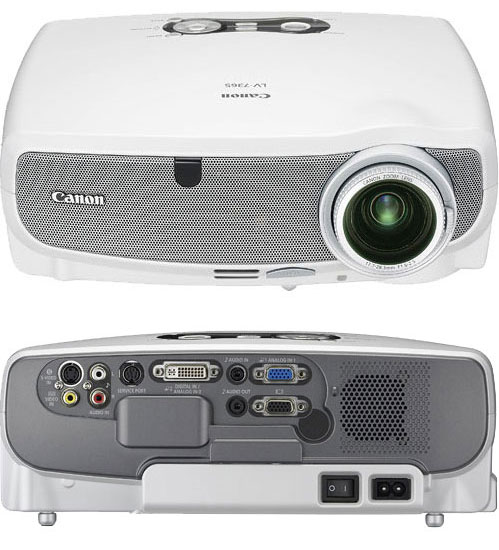

Canon LV-7365 LCD Portable Video Projector
Canon LV-7365 MSRP: $1,499
Overview
The stylish Canon LV ultra-portable projectors feature Genuine Canon optics and a 1.6x wide-angle zoom lens for outstanding image quality and brightness. Compact and lightweight for easy portability, the sleek body design also enhances usability with value-added features to expand your projection capabilities, including enhanced Wall Color Correction, ultra-fast startup, and low fan noise.
One of the latest additions to the LV projector line-up is the LV-7365, which features a more powerful 3000 ANSI lumens lamp and a short throw distance for projecting in a wide range of environments. The 1.6x wide angle zoom lens, impressive 600:1 Contrast Ratio, 29dB Quiet Mode, Quick Start, Auto Keystone Correction and intuitive on-screen menus make the LV-7365 a delight to both operate and own. In addition, HDMI digital input can be handled by an available DVI-I high-speed interface.
Features
With its more powerful 3000 ANSI lumens lamp, the LV-7365 is among the brightest of Canon's portable XGA resolution projectors. Even in a classroom or office with high levels of ambient light, your audience will be sure to see every brilliant detail of your presentation.
The LV-7365 offers native XGA (1024x768) resolution for your images, making it a perfect match for your laptop computer. In addition, the LV-7365 supports both UXGA and SXGA resolution through high-quality compression.
Superior clarity and color are the hallmarks of Genuine Canon projection lenses. And with a 1.6x wide-angle zoom, the new LV-7365 is perfect for small rooms, allowing you to project bigger images from shorter distances.
The LV-7365 also features five automatic image modes:
- Presentation - Ideal for presentations using PowerPoint
- Video - For projecting standard video, such as TV broadcasts
- Cinema - For projecting film-based video, such as movies (DVD or HDTV)
- Standard - When maximum color accuracy is desired for viewing graphics
- sRGB - For reproducing color adapted to the sRGB color space; suitable for sRGB content
Enhanced Wall Color Correction, allowing you to project onto non-white surfaces such as a chalkboard or wall. Select from several wall color options including greenboard, greenboard gray, light yellow, light green, light blue, sky blue, light rose and pink for quick adaptive color correction.
Specifications
Projector Specifications |
Imaging Device |
0.63" p-Si TFT LCD X3 |
Aspect Ratio |
4:3 |
Native Resolution |
(1024 x 768) XGA |
Brightness |
3000 |
Uniformity |
85% |
Contrast |
500:1 |
Digital Keystone (Vertical) |
+/- 30 Degree (Auto) |
Optics |
Projection Lens |
F1.6 - 2.5, f=17.7 - 28.3 mm |
Lens Shift |
8.4:1.6, Fixed |
Zoom |
1.6x Manual |
Focus |
Manual |
Screen Size |
25" - 300" |
Throw Distance |
3.5-27.7ft. / 100":9.2-14.3 ft. |
Throw Ratio |
1.37-2.14:1 |
Image Adjustments |
Color Mode |
Presentation, Video, Cinema, Standard, sRGB, Custom |
Color Adjust |
RGB Manual |
Wall Correction |
Auto |
Mounting |
Ceiling / Rear / Ceiling and Rear |
Tilt Angle |
Adjusting Feet up to 100 degrees |
Input Signals |
Scanning Frequency |
H:15~100kHz, V:50~120kHz, Dot Clock 108MHz |
Terminals |
Built-in Speaker |
5W Mono |
Control Terminal |
RS-232C (8pin Mini-DIN) |
Expansion / Connectivity |
Interfaces |
1 x Audio line-in
RCA X 2
1 x Remote control - 8 pin mini-DIN ( Management )
1 x S-video input - 4 pin mini-DIN
1 x DVI-I - 29 pin combined DVI
1 x Audio line-in - Mini-phone stereo 3.5 mm
1 x Composite video input - RCA
1 x Component video / RGB input - 15 pin HD D-Sub (HD-15)
1 x RGB output - 15 pin HD D-Sub (HD-15) |
Lamp |
Lamp Type |
210W NSH |
Lamp Life |
3000 / 2000 Hours (Normal / Quiet) |
Remote Control |
Sensor |
Wireless Infrared, Front / Back |
Mouse Control |
Mouse Control Reciever (USB) w/ Drag and Drop |
Ratings |
Fan Noise(Quite/Normal) |
35/29 bB |
Power Consumption(Normal/Quiet/Stand-By) |
295W / 240W / 9W |
Power Voltage |
AC 100 to 240V, 50/60Hz |
Temperature Operating |
41° to 95°F (5° to 35°C) |
Temperature Storage |
-14° to 104°F (5° to 60°C), 20%RH ~ 80%RH |
Dimension (WxHxD) |
12.2 x 10.4 x 4.3 in. |
Weight |
7.3 lbs |
Warranty |
3 years parts and labor; 120 days lamp |
Included Accessories |
Wireless Remote Control |
VGA Computer Cable |
DVI to VGA Adapter |
Lens Cap |
Remote Mouse Receiver |
Soft Carrying Case |
Power Cable |
Warranty Card |
CD-ROM |
User's Manual |
|
