Canon REALiS SX6 Ultra-Portable Video Projector

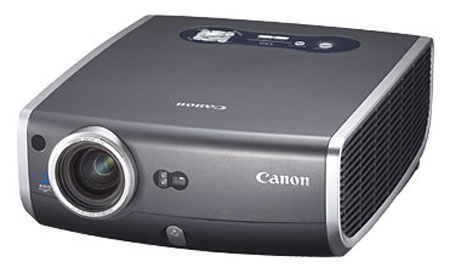

Canon REALiS SX6 Video Projector

Canon REALiS SX6 MSRP: $5,999

Overview

Around the world, Canon products are synonymous with optical excellence, advanced image processing, and superb performance. And Canon projectors are no exception.

The family of Canon projectors includes the REALiS line of bright, high resolution, ultra-portable and affordable projectors. REALiS projectors combine the brilliance and sharpness of innovative LCOS (Liquid Crystal On Silicon) technology with Canon's proprietary AISYS light engine technology. The result is a unique set of advanced projectors that deliver exceptional image quality.

The SX6 is the top of Canon's REALiS line of projectors. At 3500 ANSI lumens, it is the brightest ultra-portable SXGA+ projector Canon makes. It's ideal for demanding users such as graphic designers, publishers and photographers because the SX6 gives the widest range of Adobe RGB color space of any projector. This exceptional projector features new, advanced AISYS technology - with improved light efficiency, uniformity, and expanded color space for outstanding color reproduction. It also boasts a wide variety of features that make it a versatile and easy-to-use performer. Its 1.7x Ultra-Wide Powered Zoom Lens with Autofocus gives you the widest zoom range of any of Canon's projector lenses. And, its DVI-I terminal lets you project high quality video from satellite and digital cable boxes, as well as DVD players.

Features

  • Native Resolution of 1400 x 1050
  • LCOS Technology
  • 3500 Lumens
  • Contrast ratio of 1000:1
  • 1.7x Ultra-Wide Powered Zoom Lens with Autofocus
  • Realistic Image Quality
  • The Sharpness You Expect
  • Canon Optical Performance
  • Easy To Use Flexibility
  • Versatile Connectivity
  • Advanced Color Management
  • Optional Network Adapter

Specifications

Projector Specifications
Imaging Device 3 - .7" Reflective LCD Panel (LCOS)
Native Resolution AISYS technology and color matching technology SXGA+
Brightness 3500 ANSI Lumens
Uniformity 88%
Contrast 1000:1
Digital Keystone (Vertical) ± 20 degrees Vertical & Horizontal Adjustment
Optics
Projection Lens SXGA, WXGA, XGA, SVGA, VGA, HDTV, DTV, (Compressed) UXGA
Lens Shift 8.6:1.4, Fixed
Zoom 1.6x manual
Screen Size 40 - 300 in.
Throw Distance 3.6 - 28.9ft (1.1 - 8.8m) / 100": 9.5 - 15.1ft (2.9 - 4.6m)
Throw Ratio: 1.44-2.25:1
Input Signals
Scanning Frequency H:15 ~ 100 kHz , V: 50 ~ 100 Hz, Dot clock: 108 MHz
Analog PC Input SXGA, WXGA, XGA, SVGA, VGA, HDTV, DTV, (Compressed) UXGA
Video/S-Video Input NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N
Component Input S-Video, Composite, Component, VGA, DVI-I, Audio, USB, Component 5BNC (with optional accessory), RS-232 (for control systems)
Terminals
(Input) Stereo Mini Jack 1 Stereo Mini Audio, 1 Service Port (DIN 8 Pin)
(Output) Stereo Mini Jack 1 RGB (D-Sub 15 Pin), 1 Stereo Mini Audio
Built-in Speaker 1W, Monaural
Lamp
Network RS232, IR
Lamp Life 270W NSH
Remote Control
Sensor Yes
Ratings
Power Consumption(Normal/Quiet/Stand-By) 355W (Normal) / 290W (Silent)
Power Voltage 100 to 120/200 to 240V AC, 50/60Hz
Temperature Operating 41° to 95&degF (5° to 35&degC)
20% to 80% humidity (non-condensing)
Temperature Storage 14° to 122&degF (-10° to 50&degC)
20% to 80% humidity (non-condensing)
Dimension (WxHxD) 8.9" x 13.2" x 4.5" (226 x 336 x 114mm)
Weight 10.4lbs (4.7kg)
Warranty 3 Years Parts and Labor, 120 Days (Lamp)
