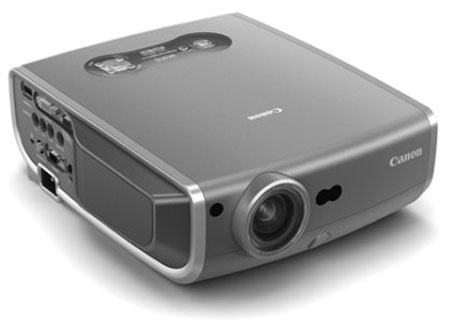

Canon REALiS WUX10 Video Projector
Canon REALiS WUX10 MSRP: ***
Overview
Around the world, Canon products are synonymous with optical excellence, advanced image processing, and superb performance. Canon projectors are no exception. The family of Canon projectors includes the REALiS line of bright, high resolution, ultra-portable and affordable projectors. REALiS projectors combine the brilliance and sharpness of innovative LCOS (Liquid Crystal On Silicon) technology with Canon's proprietary AISYS light engine technology. The result is a unique set of advanced projectors that deliver exceptional image quality.
The REALiS WUX10 is Canon's top of the line projector, delivering the highest resolution of any Canon projector. The world's first WUXGA (1920 x 1200) projector using LCOS technology, the WUX10 provides spectacular image quality, resolution, and color reproduction. This exceptional projector also features Canon's exclusive AISYS technology - with improved light efficiency, uniformity, and expanded color space for outstanding color reproduction, delivering razor sharp image quality.
This wide screen projector boasts a multitude of features that make it a versatile and easy-to-use performer, including an HDMI terminal that lets you project 1080p content from satellite and digital cable boxes, as well as DVD players. A built-in network port allows for remote network operation and its 1.5x powered zoom lens with autofocus features a 10:0 lens offset. The bottom edges of the projected images have been made to match the optical axis of the lens.
Designed to meet the needs of users in corporate, educational, and specialized fields, the REALiS WUX10 contains all the technology needed for superior performance, as well as fast, easy, and quiet operation.
Features
- Native WUXGA Resolution 1920 x 1200
- Wide Screen Views
- LCOS Technology with AISYS
- 3200 Lumens
- 1.5x Zoom Lens
- Advanced Color Management System
- Full 10 Bit Color
- HDMI Version 1.3 Deep Color
- Network Ready RJ-45 Port
- Ease of Use and Flexibility
Specifications
| Projector Specifications |
| Aspect Ratio |
16:10 |
| Native Resolution |
WUXGA (1920 x 1200) |
| Brightness |
3200 |
| Uniformity |
88% |
| Contrast |
1000:1 |
| Digital Keystone (Vertical) |
± 20 degrees (Auto/Manual) |
| Optics |
| Projection Lens |
F1.85-2.65, f= 21.8-31.9 |
| Lens Shift |
10:0; Fixed |
| Zoom |
1.5x Powered |
| Focus |
Powered (Auto/Manual) |
| Screen Size |
40" - 300" |
| Throw Distance |
3.9 - 29.9 ft. |
| Throw Ratio |
1.48 - 2.18:1 |
| Image Adjustments |
| Color Mode |
Standard, Presentation, Movie, sRGB |
| Color Adjust |
Dynamic Gamma, 6-Axis (RGBCMY) Color Adjustment |
| Wall Correction |
Auto / Manual |
| Mounting |
Ceiling / Rear / Ceiling and Rear |
| Tilt Angle |
Adjusting feet up to 10 degrees |
| Input Signals |
| Scanning Frequency |
H:15 ~ 75 kHz , V:50 ~ 85 Hz Dot clock: 170 MHz |
| Terminals |
| Built-in Speaker |
1W (Mono) |
| Lamp |
| Lamp Type |
275W NSH (AC) |
| Lamp Life |
3000/2000 Hours |
| Remote Control |
| Sensor |
Wireless Infrared, Front / Back |
| Ratings |
| Fan Noise(Quite/Normal) |
35/31dB |
| Power Consumption(Normal/Quiet/Stand-By) |
390W (normal) / 320W (quiet) / 15W (stand-by) |
| Power Voltage |
AC 100 ~ 240V, 50/60Hz |
| Temperature Operating |
41° to 95°F (5° to 35°C) |
| Temperature Storage |
-22° to 104°F (-30° to 60°C), 5%RH ~ 90%RH |
| Dimension (WxHxD) |
11.2" x 4.5" x 13.2" (284 x 114 x 336mm) |
| Weight |
10.8 lbs. (4.9kg) |
| Warranty |
3 years parts and labor, 120 day lamp warranty |
|
|
