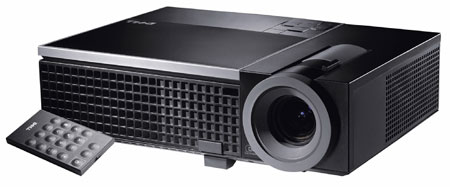

Dell 1409X DLP Portable Video Projector
Dell 1409X MSRP: $749
Overview
High Brightness
Deliver effective, lights-on presentations in most any location – the conference room, classroom, or even the living room. With maximum brightness of 2500 ANSI Lumens1, the 1409X Projector enables you to give a presentation without having to turn out the lights on note-takers and discussion.
Dual VGA Connectors
Eliminate the wait. Convenient dual VGA connectors enable seamless transition between speakers and reduce downtime between presentations. The high-performance 1409X improves productivity and presentation results.
Extensive Connectivity
Great for lectures, seminars, sales proposals and off-site meetings, the highly versatile 1409X offers multiple connectivity options. Enhance the visual experience with flexible VGA ports, DVI with HDCP, Component, Composite, S-Video, RS232 and Audio Input/Output ports.
DLP ® and BrilliantColorTM Technology
Thanks to Digital Light Processing and new BrilliantColor technology, the 1409X offers superior color reproduction and stunning image quality. DLP projectors produce brilliant color accuracy and up to 50% more color brightness than other technologies. The magic is in the mirrors.
Flexible Usage Options
With multiple mounting options and high-quality front and rear projection, the 1409X easily adapts to your surroundings. This smartly designed, 2.25kg (4.95lbs) projector is highly portable and offers easy set-up and operation for on-the-go presentation.
Mini-Remote Control
Keep presentations moving with the slim, full-featured remote control. The credit card-sized infrared device delivers big functionality in the palm of your hand. Take control without taking timeout.
Project and Protect
Protect your investment against theft and unauthorized access with the integrated Kensington security port and password protection functionality. Every Dell DLP projector is backed by our Advanced Exchange4 Service and optional additional warranties. Unlike LCD projectors, DLP protects against color decay and seals out dust – reducing maintenance and filter replacement costs.
Features
- 2500 ANSI Lumens Brightness - High brightness allows you to project with the lights on.
- 1024 x 768 XGA Resolution - Improve image detail and sharpness with 63% more pixels than SVGA (800 x 600) resolutions.
- 1900:1 Contrast Ratio (Full On / Full Off) - Make a big impression with rich colors, sharper picture quality and crisp text.
- DLP ® and BrilliantColor TM Technology - With 16.7 million vibrant colors, the 1409X produces precise, life-like images and superior color accuracy.
- Large Projection Size - At 12 meters distance, the 1409X projects all your big ideas up to 302.8 inches maximum size.
- Up to 4000 Hours Lamp Life3 - Reduce cost and maintenance with lamp life3 up to 4000 hours in quiet-running eco mode.
- Mountable and Portable - Capable of front and rear projection, the Dell 1409X Projector provides several mounting options and at 2.25kg (4.95lbs) you can even take it with you.
- Customizable - Start-up Logo - Project brand success and your customized company logo before each presentation.
Specifications
Brightness |
2500 ANSI Lumens (Max.) |
Contrast Ratio |
1900:1 Typical (Full On/Full Off) |
Uniformity |
85% Typical (Japan Standard - JBMA) |
Lamp |
165~200-watt user-replaceable 3000-hour lamp (up to 4000 hours in ecomode) |
Number of Pixels |
1024x 768 (XGA) |
Displayable Color |
16.7M colors |
Color Wheel Speed |
2X |
Projection Lens |
F-Stop: F/ 2.41~2.55
Focal length, f=21.8~24 mm
1.1X manual Zoom Lens |
Projection Screen Size |
22.89-302.8 inches (diagonal) |
Projection Distance |
3.3~39.4 ft (1.0 m~12 m) |
Video Compatibility |
NTSC (J/M (3.58MHz)/ 4.43MHz), PAL (B/D/G/H/I/M/N/Nc/60), SECAM (B/D/G/K/K1/L), and Component video (1080i/p, 720p, 576i/p, 480i/p) compatibility
Composite video, Component video (via VGA) and S-video capability |
Power Supply |
Universal AC90-264 50/60 Hz with
PFC input |
Power Consumption |
256 watts in full mode, 216 watts in eco mode |
Audio |
1 speaker, 8 watt RMS |
Noise Level |
34 dB(A) Full-on mode, 31 dB(A) Eco mode |
Weight |
4.95 lbs (2.25 kg) |
Dimensions (W x D x H) |
11.68" x 7.96" x 3.17" ± 0.04" (296.5mm x 202mm x 80.5mm ± 1 mm) |
Environmental |
Operating temperature: 5'C - 35'C (41'F- 95'F); Humidity: 80% maximum
Storage temperature: 0'C to 60'C(32'F to 140'F); Humidity: 90% maximum |
Regulatory |
FCC, CE, VCCI, UL, cUL, Nemko-CCC, PSB, NOM, IRAM, SABS, CECP, SASO, PSE, eK |
I/O Connectors |
Power: AC power input socket
Computer input: one D-sub for analog/component, HDTV input signals
Computer output: one 15-pin D-sub
Video input: one composite video RCA and one S-video
Audio input: one phone jack (diameter 3.5 mm)
Audio output: one phone jack (diameter 3.5 mm)
USB port: one USB slave for remote mouse support
One mini-DIN RS232 for wired remote control from PC
DVI-D input: one DVI-D connector for
DVI-D signal (HDCP compliant) |
|
