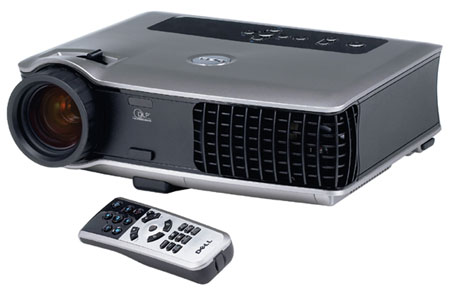

Dell 5100MP DLP Home Theater Video Projector
Dell 5100MP MSRP: $2,499
Overview
Very bright. Beautiful clarity. Bright colors. Deep blacks. Sleek design on both cabinet and the remote. And manageable from a network. All great qualities of the Dell 5100MP projector.
DLP technology is an all digital chip that uses millions of micro mirrors that reflect light to create lifelike, razor-sharp pictures with vibrant colors and high contrast ratios in projectors. Thanks to the DLP chip's architecture and unparalleled response time, it's ideal for sports, fast action video and gaming. The Dell 5100MP projector incorporates the latest generation of DLP technology with LVDS data transmission technology which increases the switching speed of the DLP chip for enhanced video performance.
Features
- Bright 3,300 ANSI Lumens (Max)
- Superior high contrast ratio of 2500:1 (Full on/Full off)
- At less than 8.3 pounds, the 5100MP is ideal for professional presentation in the conference or boardroom
- Integrated zoom lens and Automatic Vertical Keystone correction
- DLPTM LVDS technology from Texas Instruments
- Native SXGA+ (1400 x 1050), with autosync up to UXGA (1600 x 1200)
- Eco-mode option for quieter operation and to extend lamp life up to 2200 hours
- One Audio In and Out connector
- Supports full range of television and video standards, including NTSC, NTSC 4.43, PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L) and HDTV (480i/P; 576i/P, 720P; 1080i)
- Separate HDMI and Component video input
- Internal 2 X 2W speaker
- Standard dedicated support queue and up to 3-Year Advanced Exchange Service. Optional CompleteCare Service also available
Specifications
Brightness |
3,300 ANSI Lumens |
Optical Engine |
Single chip DLPTM LVDS technology |
Contrast Ratio |
2500:1 (Full on/Full off) |
Lamp |
300-watt, user-replaceable P-UHP lamp; 1700 hours (Typical) (up to 2200 hours in Eco-mode) |
Resolution |
Native SXGA+ (1400 x 1050), with autosync up to UXGA (1600 x 1200) |
Displayable Color |
16.7M true colors |
Projection Lens |
1.2X Manual Zoom |
Projection Screen Size |
24.4 - 292.5" diagonal (61.98 - 792.95 cm) |
Projection Distance |
1.5 - 10 m (4.9 - 32.8 feet) |
Video Compatibility |
NTSC, NTSC 4.43, PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L) and HDTV (480i/P, 576i/P, 720P, 1080i) compatible
Composite Video and S-Video capability
Component, HDMI , BNC |
H. Frequency |
Analog: 15kHz ~ 100kHz
Digital: 30kHz ~ 64 kHz |
V. Frequency |
Analog: 43Hz ~ 120Hz
Digital: 43Hz ~ 85 Hz |
Keystone Correction |
±20 degrees |
Multimedia Audio |
Internal 2 X 2W speaker |
Power Supply |
Universal 100-240V AC 50/60 Hz |
Power Consumption |
400W at full power (335W at Eco) |
Noise Output |
37 dBA (Normal operation); 31 dBA (Eco-mode) |
I/O Connectors |
Power: AC power input socket
Computer Input: One M1-DA connector for analog/digital/HDTV
Computer Output: One 15-pin D-sub
Video Input: One Composite Video cable; HDMI, BNC, Component, one S-Video and one M1-A to HDTV cable
Audio Controls: RJ232, RJ-45 and IR/RF ports |
Weight |
8.20 lbs (3.72kg) |
Dimensions (W x H x D) |
13 x 10.3 x 4.5 (330 x 261 x 115 mm) |
Environmental |
Operating Temperature: 5~35 C
Storage Temperature: -20~60C
Humidity: 80% max |
|
