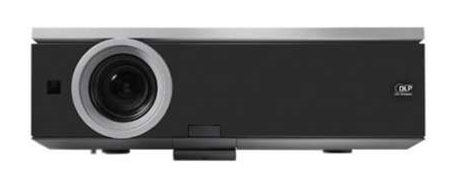

Dell 7609WU DLP Multimedia Video Projector


Dell 7609WU Video Projector

Dell 7609WU MSRP: $4,999

Overview

Offering stunning resolution and brightness as well as a variety of connectivity options, the Dell 7609WU is a high-performance projector that brings out the best in any multimedia presentation.

Featuring an astounding 1920 x 1200 WUXGA native resolution, the 7609WU Projector offers a consistent viewing experience across widescreen laptop or widescreen flat panel monitors.

With high brightness of 3850 ANSI Lumens (Max.), the 7609WU offers sharp resolution even in a brightly lit conference room or small auditorium.

Features

  • DLP® and BrilliantColorTM technology – Advanced processing and millions of tiny mirrors deliver riveting still images and lightning-fast response time for fluid, fast-action videos.
  • 1920 x 1200 WUXGA Native Resolution – Project a breathtaking, high-resolution picture across large boardrooms and auditoriums with up to 56.7% more pixels than SXGA+ (1400 x 1050).
  • Superior 2700:1 typical (Full On/Full Off) – Make a great impression with consistent high-contrast images and razor-sharp text.
  • Optimal Brightness of 3850 ANSI Lumens (Max.) – Lights-on presentations in large rooms have never been this clear and bright.
  • Comprehensive Connectivity - Get ultimate flexibility with network management control via RJ45, DC jack 12V output for motorized projection screen, DC jack 5V output for powering external devices such as wireless module, Dual VGA, Dual HDMI, DisplayPort, S-Video, Composite Video, RS232 and Audio-in/Audio-Out.
  • Audio Capable - Dual 5W speakers provide a crisp soundtrack for any multimedia presentation.
  • Flexible Usage - Offers desktop or ceiling mountable options, each with front and rear projection capabilities.
  • Full-Featured Remote Control - Navigate your presentation with ease and call out the details using the built-in laser pointer.
  • Long Lamp Life - Help protect the planet and your bottom line with an efficient 300W user replaceable lamp and a long lamp life of up to 2000 hours (normal mode)/2500 hours (eco mode).
  • Eco Friendly - Use Eco-Mode for quieter, more efficient operation and increased lamp life1 up to 2500 hours.

Specifications

PROJECTION CONNECTIVITY

Brightness:
3850 ANSI Lumens (maximum)

Contrast Ratio:
2700:1 Typical (Full on / Full off)

Resolution:
1920 x 1200 (WUXGA)

Uniformity:
85% Typical (Japan Standard – JBMA)

Projection Lens:
F-Stop: F/2.6 ~ 2.9
Focal length, f=39.12 ~ 46.94 mm
1.2X manual Zoom Lens

Image Size:
20.9 - 301.0 inches (diagonal)
Projection Distance:
3.28 ~ 39.37 ft (1 m ~ 12 m)

  • Integrated Video and Audio Ports
  • Power: AC power input socket
  • Computer input: two D-sub for analog/component, HDTV input signals
  • Computer output: one 15-pin D-sub
  • Video input: one composite video RCA, one S-video, and one set of component video RCA
  • Audio input: one phone jack (diameter 3.5 mm)
  • Audio output: one phone jack (diameter 3.5 mm)
  • USB port: one USB slave for remote mouse support
  • One mini-DIN RS232 for wired remote control from PC
  • DMI input: two HDMI connectors for HDMI signals (HDCP compliant)
  • One DisplayPort connector for DisplayPort signals
  • One RJ45 connector for networking
    DC jack 12 volt@200mA output, relay control for automatic projection screen control
  • DC jack 5 volt@2.5A output, for powering external devices
LAMP VIDEO COMPATIBILITY
Lamp Life Cycle:
Up to 2,000 hours (optimized typical usage); up to 2,500 hours (Eco-Mode)

Lamp Type:
300 watt user-replaceable bulb
Composite Video
S-Video
NTSC (J/M/4.43MHz)
PAL (B/D/G/H/I/M/N/Nc/60)
SECAM (B/D/G/K/K1/L)
HDMI
Component Video via VGA and YPbPr RCA (1080i/p, 720p, 576i/p, 480i/p)
AUDIO KEYSTONE CORRECTION
2 speakers, 5 watt RMS Auto Keystone and Horizontal/Vertical Keystone Adjustment
SECURITY COLOR, SIZE AND WEIGHT
Password Protection
Security Cable Slot
Color:
Black

Dimensions (W x D x H):
432 mm (17.0") x 290 mm (11.42") x 135 mm (5.31")

Weight:
6.08 kg (13.4 lbs)
ELECTRICAL ENVIRONMENTAL
Power:
Universal AC90-264 50/60 Hz with PFC input

Power Consumption Operational:
454 watts (full mode)
405 watts (Eco-Mode)
Operating temperature:
5°C - 35°C (41°F - 95°F)

Humidity:
80% (maximum)

Storage temperature:
0°C - 60°C (32°F - 140°F)

Humidity:
90% (maximum)
COMPLIANCE AND STANDARDS WHAT'S IN THE BOX
FCC, CE, VCCI, UL, cUL, Nemko-GS, ICES-003, C-Tick, GOST, NOM, SABS, SASO, PSE Power Cable
1.8 VGA Cable (VGA to VGA)
2.0m Display Port Cable
Remote Control
AAA Batteries (2)
CD User’s Guide and Documentation
(Carry Case not included)
